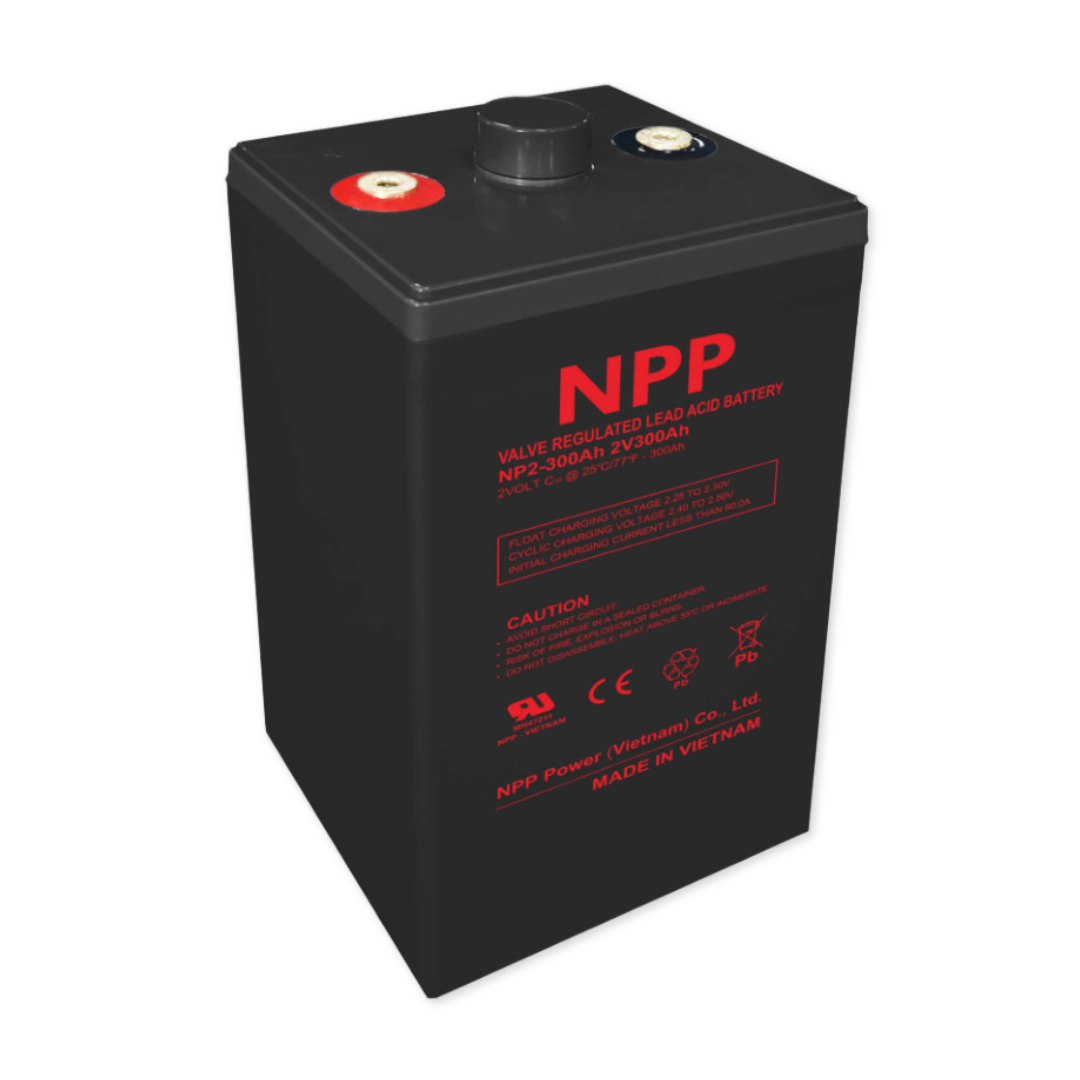

NPPower NP General Purpose Series 2V 292Ah @ 8 Hr Rate 1.300 SPG ABS-FR AGM VRLA Battery
SKU: NP2-300AH

NPPower NP General Purpose Series 2V 292Ah @ 8 Hr Rate 1.300 SPG ABS-FR AGM VRLA Battery

$154.66

ask a question

request quote

request service quote

Other models in this line

NP2-1000AH

$516.75

Pre-order

NP2-100AH

$49.89

Pre-order

NP2-1500AH

$807.25

Pre-order

NP2-150AH

$75.82

Pre-order

NP2-2000AH

$1,093.72

Pre-order

NP2-200AH

$109.43

Pre-order

NP2-3000AH

$1,619.66

Pre-order

NP2-400AH

$215.51

Pre-order

NP2-500AH

$272.98

Pre-order

NP2-600AH

$313.89

Pre-order

NP2-800AH

$440.48

Pre-order

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT
AGM (VRLA)
Indoor, Outdoor Controlled, Outdoor Uncontrolled
Title
Title

CAPACITY

16 Ah @ 20 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

36.5 A Constant Current @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

292 Ah @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

Title

design life & warranty
5 Years Design Life
1 Year Full Warranty
Title

DIMENSIONS
Length: 6.73 in
Width: 5.94 in
Height: 14.33 in
Weight: 39.7 lb
Title

certifications & compliances
ISO 9001, ISO 14001, OHSAS 18001, IEC 60896-21/22, UL-Recognized Component, UL94 V-0
Title

industries
Transportation, General Purpose, Deep Cycle to Application

Specifications

view more in-depth details on applications & specifications
NPPower VRLA Battery Warranty Policy.pdf
NPPower NP2-300Ah Specification Sheet.pdf
NPPower VRLA Battery Specification Catalog.pdf
NPPower VRLA Battery Terminal Information.pdf
Title

safety

view more in-depth details on safety features & certifications
NPPower VRLA Safety Data Sheet.pdf

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation
Title

rentals & emergency

container rentals

battery rentals

emergency rentals & response
Title

installation

batteries

c0 / msc / cell site

power equipment
Title

microgrid design

feasibility assessment & budgeting

system design, install, & maintenance

operations & optimization
Title

technical

capacity & acceptance Testing

battery & equipment commissioning

maintenance
Title

recycling

batteries - remove, replace, recycle

approved transport & smelting

NPPower NP2-300AH AGM VRLA Battery - NP 2V General Purpose Series

NPPower’s 2 Volt General Series batteries are engineered using advanced Absorbent Glass Mat (AGM) technology, high-performance plates, and optimized electrolyte formulations. Designed to deliver exceptional reliability and value, this versatile range of valve-regulated lead-acid (VRLA) batteries is ideally suited for a wide array of general-purpose applications. With exceptional reliability, long service life, and long cycle life, NPPower 2 Volt General Series batteries are an excellent choice for use in uninterruptible power supplies (UPS), telecommunications applications, solar and wind energy systems, railway systems, reserve power, and other critical applications.

Key Features & Benefits

  • Stable quality and high reliability
  • Very long service life
  • Maintenance-free operation
  • Heavy-duty grids
  • Low self-discharge
  • Available with flame retardant container and cover (UL94 V-0)

Applications

  • Uninterruptible Power Supplies (UPS)
  • Telecommunications
  • Solar Power
  • Wind Power
  • Railway Systems
  • Reserve Power

NP2-300AH Construction Details

  • Available with flame-retardant container and cover (UL94 V-0)
  • AGM separators

Specification Details for NP2-300AH by NPPower

ATTRIBUTES DETAILS
General Info
Chemistry
AGM (VRLA)
Voltage
2V
Capacity
300AH @ 10 Hr Rate
Cells Per Unit
1
Dimensions
    - Length
    - Width
    - Height
    - Overall Height

  6.73 inches / 171 mm
  5.94 inches / 151 mm
12.99 inches / 330 mm
14.33 inches / 364 mm
Weight
39.7 lbs / 18.0 kgs
Container Type
ABS
Terminal Type
Top - M8 Insert
Terminal Material
Copper
Design Life
5 years
Warranty
1 Year Full
Electrical Specifications & Performance Characteristics
Float Charging Voltage
2.25 to 2.30V
Temperature compensation: -3mV/°C
Cyclic Charging Voltage
2.40 to 2.50V
Temperature compensation: -5mV/°C
Maximum Charging Current
60A
Maximum Discharge Current
2100A (5 sec.)
Self Discharge
 3 Month: 91% remaining capacity
 6 Month: 82% remaining capacity
12 Month: 65% remaining capacity
Internal Resistance
0.7mΩ
Operating Temperature Ranges
Nominal: 77°F +/- 5°F (25°C +/- 3°C)
Charge: 14°F to 122°F (-10°C to 50°C)
Discharge: 5°F to 122 °F (-15°C to 50°C)
Storage: -4°F to 122°F (-20°C to 50°C)
Specific Gravity
1.300
Electrolyte
Sulfuric Acid
Construction Details
Positive Plate
Lead Dioxide
Negative Plate
Lead
Container
ABS
Cell Cover
ABS
Separator
AGM
Electrolyte
Sulfuric Acid
Safety Valve
Rubber
Terminal Material
Copper

Certifications & Safety Compliances

  • ISO 9001
  • ISO 14001
  • OHSAS 18001
  • IEC 60896-21/22
  • UL-Recognized Components
  • UL94 V-0

Options & Accessories

  • Available with flame-retardant container and cover (UL94 V-0)
