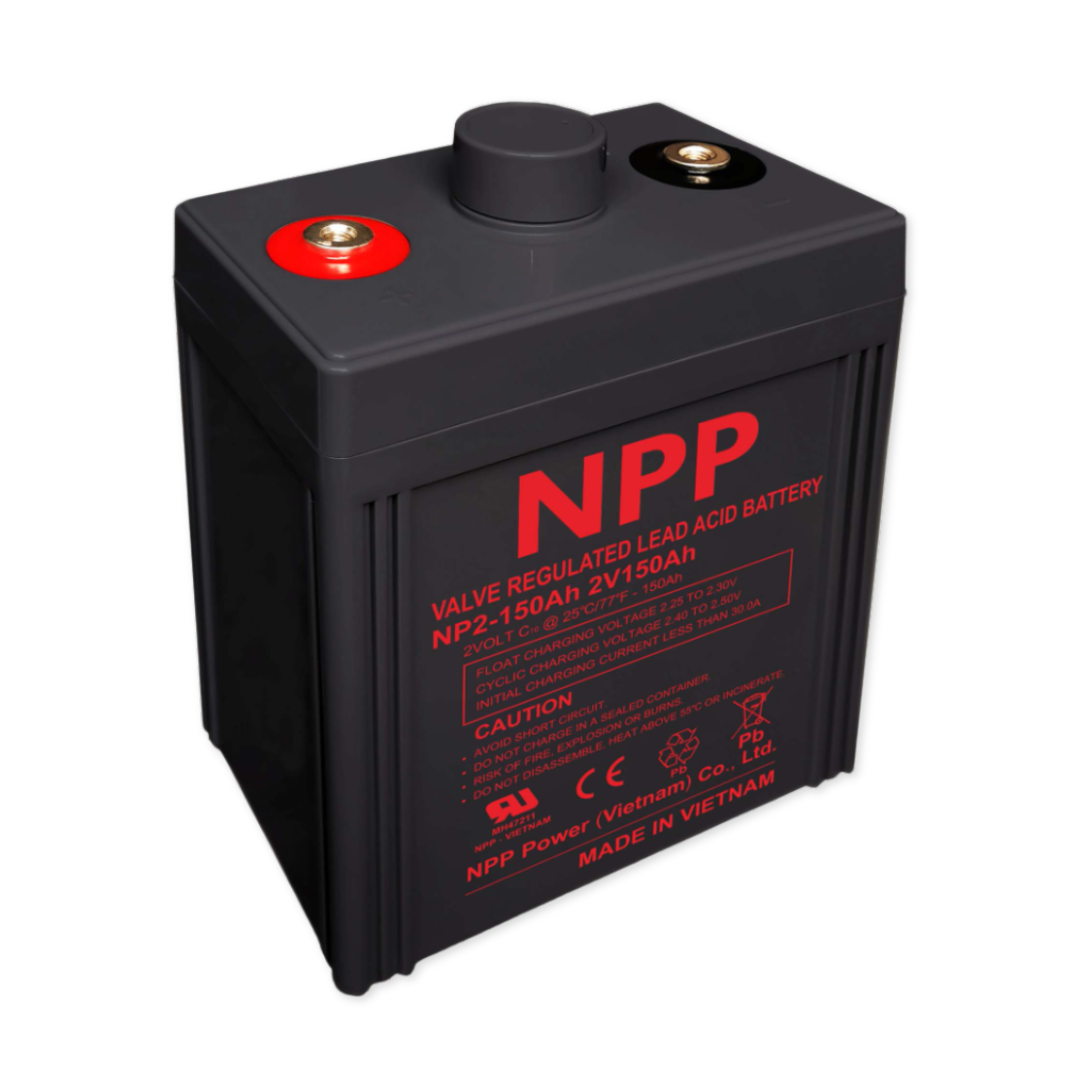

NPPower NP General Purpose Series 2V 145Ah @ 8 Hr Rate 1.300 SPG ABS-FR AGM VRLA Battery
SKU:

NP2-150AH

NPPower NP General Purpose Series 2V 145Ah @ 8 Hr Rate 1.300 SPG ABS-FR AGM VRLA Battery

**This product has been discontinued. There is currently no direct replacement available**

Need help planning a transition?
Our team is here to assist.

CONTACT US

Our Recommended Alternatives

Other models in this line

NP2-1000AH

$516.75

Pre-order

NP2-100AH

$49.89

Pre-order

NP2-1500AH

$807.25

Pre-order

NP2-2000AH

$1,093.72

Pre-order

NP2-200AH

$109.43

Pre-order

NP2-3000AH

$1,619.66

Pre-order

NP2-300AH

$154.66

Pre-order

NP2-400AH

$215.51

Pre-order

NP2-500AH

$272.98

Pre-order

NP2-600AH

$313.89

Pre-order

NP2-800AH

$440.48

Pre-order

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT

AGM (VRLA)
Title

CAPACITY

8.01 Ah @ 20 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

18.2 A Constant Current @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

145.6 Ah @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)
Title
Title

design life & warranty

5 Years Design Life
1 Year Full Warranty
Title

DIMENSIONS

Title

certifications & compliances

ISO 9001, ISO 14001, OHSAS 18001, IEC 60896-21/22, UL-Recognized Component, UL94 V-0
Title

industries

Transportation, General Purpose, Deep Cycle to Application

Specifications

view more in-depth details on applications & specifications

NPPower VRLA Battery Warranty Policy.pdf
NPPower NP2 150Ah Specification Sheet.pdf
NPPower VRLA Battery Specification Catalog.pdf
NPPower VRLA Battery Terminal Information.pdf
NPPower VRLA Installation and Operation Manual.pdf
Title

safety

view more in-depth details on safety features & certifications

Safety NPPower VRLA Safety Data Sheet.pdf

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation

Title

rentals & emergency

containerized rentals

temporary battery strings & equipment rentals

disaster recovery & emergency response
Title

installation

Title

microgrid design

scalable battery energy storage systems (bess)

feasibility assessment & budgeting

system design, install, & maintenance
Title

technical

capacity & acceptance testing

dc power engineering & training

preventative, contract, & scheduled maintenance programs

Title

Removal, Upgrades, & recycling

battery removal, replacement, & recycling

removal & cable mining

upgrades & transition work

NPPower NP2-150AH AGM VRLA Battery - NP 2V General Purpose Series

NPPower’s 2 Volt General Series batteries are engineered using advanced Absorbent Glass Mat (AGM) technology, high-performance plates, and optimized electrolyte formulations. Designed to deliver exceptional reliability and value, this versatile range of valve-regulated lead-acid (VRLA) batteries is ideally suited for a wide array of general-purpose applications. With exceptional reliability, long service life, and long cycle life, NPPower 2 Volt General Series batteries are an excellent choice for use in uninterruptible power supplies (UPS), telecommunications applications, solar and wind energy systems, railway systems, reserve power, and other critical applications.

Key Features & Benefits

  • Stable quality and high reliability
  • Very long service life
  • Maintenance-free operation
  • Heavy-duty grids
  • Low self-discharge
  • Available with flame retardant container and cover (UL94 V-0)

Applications

  • Uninterruptible Power Supplies (UPS)
  • Telecommunications
  • Solar Power
  • Wind Power
  • Railway Systems
  • Reserve Power

NP2-150AH Construction Details

  • Available with flame-retardant container and cover (UL94 V-0)
  • AGM separators

Specification Details for NP2-150AH by NPPower

ATTRIBUTES DETAILS
General Info
Chemistry
AGM (VRLA)
Voltage
2V
Capacity
150AH @ 10 Hr Rate
Cells Per Unit
1
Dimensions
    - Length
    - Width
    - Height
    - Overall Height

6.73 inches / 171 mm
4.02 inches / 102 mm
8.11 inches / 206 mm
8.70 inches / 221 mm
Weight
17.6 lbs / 8.0 kgs
Container Type
ABS
Terminal Type
Top - M8 Insert
Terminal Material
Copper
Design Life
5 years
Warranty
1 Year Full
Electrical Specifications & Performance Characteristics
Float Charging Voltage
2.25 to 2.30V
Temperature compensation: -3mV/°C
Cyclic Charging Voltage
2.40 to 2.50V
Temperature compensation: -5mV/°C
Maximum Charging Current
45A
Maximum Discharge Current
1200A (5 sec.)
Self Discharge
 3 Month: 91% remaining capacity
 6 Month: 82% remaining capacity
12 Month: 65% remaining capacity
Internal Resistance
0.6mΩ
Operating Temperature Ranges
Nominal: 77°F +/- 5°F (25°C +/- 3°C)
Charge: 14°F to 122°F (-10°C to 50°C)
Discharge: 5°F to 122 °F (-15°C to 50°C)
Storage: -4°F to 122°F (-20°C to 50°C)
Specific Gravity
1.300
Electrolyte
Sulfuric Acid
Construction Details
Positive Plate
Lead Dioxide
Negative Plate
Lead
Container
ABS
Cell Cover
ABS
Separator
AGM
Electrolyte
Sulfuric Acid
Safety Valve
Rubber
Terminal Material
Copper

Certifications & Safety Compliances

  • ISO 9001
  • ISO 14001
  • OHSAS 18001
  • IEC 60896-21/22
  • UL-Recognized Components
  • UL94 V-0

Options & Accessories

  • Available with flame-retardant container and cover (UL94 V-0)
