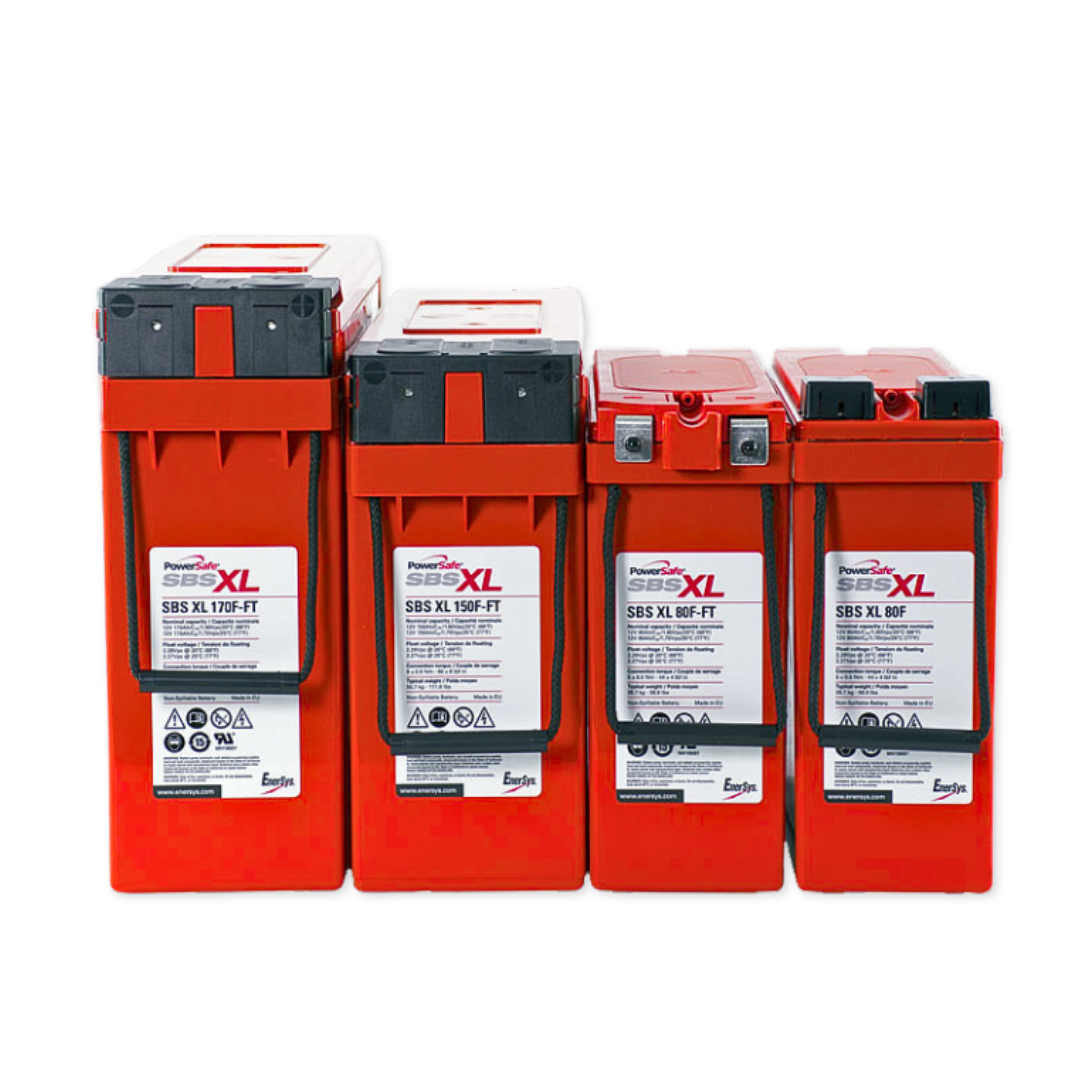

EnerSys PowerSafe SBS XL 150F-FT TPPL VRLA Battery - EnerSys SBS XL 12V Series

EnerSys PowerSafe SBS XL Series batteries come from a respected lineage, the industry-leading PowerSafe SBS Thin Plate Pure Lead (TPPL) battery. Designed for high-temperature backup applications, the PowerSafe SBS XL battery delivers a 20 year design life at 77°F (20°C) or a 10 year design life at 95°F (35°C). This innovative line offers true cost savings to operators by reducing both cooling and maintenance requirements. EnerSys SBS XL Series batteries are ideal for Telecommunications, Central Office, Utilities and Switchgear, Substations, and CATV/Broadband applications.

Key Features & Benefits

• Designed for operation at high temperatures in float applications with a wide operating temperature range of -40°F to 149°F (-40°C to 65°C)
• Designed for use in cabinets or on stands, close to the point of use; separate battery room is not required
• Blocs should be installed on their base or horizontally on their longest side
• Up to 2-year shelf life due to low rate of self-discharge
• Front terminal design
• UL94 V-0 Flame retardant case and cover
• 20-year design life at 77°F (20°C) or a 10 year design life at 95°F (35°C)

Applications

• Telecommunications
• Central Office
• Utilities and Switchgear
• Substations
• CATV/Broadband

EnerSys PowerSafe SBS XL 150F-FT Construction Details

• Positive Plates - utilize TPPL technology
• Negative Plates- provide perfect balance with the positive plate to ensure optimum recombination efficiency
• Separators - superior quality microporous glass mat separators with high absorption and stability
• Container and Lid - UL94 V-0 rated flame retardant Polycarbonate (PC) - ABS material, highly resistant to elevated temperatures, shocks, and vibrations
• Self-regulating Pressure Relief Valves - prevent ingress of atmospheric oxygen
• Flame Arrestors - built into each bloc for increased operational safety

Specification Details for SBS XL 150F-FT by EnerSys

Certifications & Safety Compliances

• Approved as non-hazardous cargo for ground, sea, and air transportation in accordance with US DOT Regulation 49 and ICAO & IATA Packing instruction 806
• Telcordia GR-4228 Level III
• NEBS GR-63
• IEC 60896-21/22
• ISO 9001:2008 Certified
• ISO 14001:2004 Certified
• OHSAS 18001 Certified
• UL94 V-0 container and cover

Options & Accessories

• Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.

Explore Other Models in the EnerSys PowerSafe SBS XL 12V Series

• SBS XL 80F-FT
• SBS XL 170F-FT
