No Image
SKU: TPL12600T

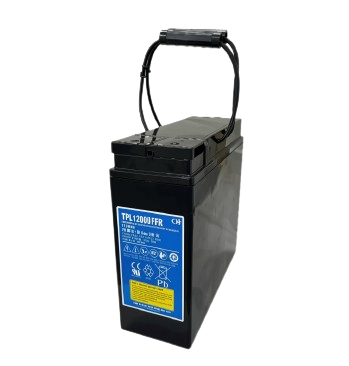

CSB Battery Telecom Power Long Life 12V 63.7 Ah @ 8 Hr Rate Front Terminal AGM VRLA Battery

$205.69

ask a question

request quote

request service quote

Other models in this line

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT

AGM (VRLA)
Title
Title

CAPACITY

69.6 Ah @ 20 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

7.96 A Constant Current @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

63.7 Ah @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

1319 WPC @ 15 Min Rate to 1.67 VPC @ 77ºF (25ºC)
Title

design life & warranty

12 Years Design Life
1 Year Full Warranty
Title

DIMENSIONS

Length: 11.02 in
Width: 4.13 in
Height: 10.23 in
Weight: 46.72 lb
Title

certifications & compliances

49 CFR 171-189, IATA/ICAO Special Provisions A67, IEC 60896-21/22:2004, UL1973, UL1989, UL-Recognized Component
Title

industries

Telecom

Specifications

view more in-depth details on applications & specifications

Title

safety

view more in-depth details on safety features & certifications

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation

Title

rentals & emergency

containerized rentals

temporary battery strings & equipment rentals

disaster recovery & emergency response
Title

installation

batteries & ups systems

co / msc / cell site

grounding/pages/technical-grounding-services

Title

microgrid design

scalable battery energy storage systems (bess)

feasibility assessment & budgeting

system design, install, & maintenance
Title

technical

capacity & acceptance testing

dc power engineering & training

preventative, contract, & scheduled maintenance programs

Title

Removal, Upgrades, & recycling

battery removal, replacement, & recycling

removal & cable mining

upgrades & transition work

CSB TPL12600T AGM VRLA Battery - TPL Series

CSB's Telecom Power and Long Life (TPL) Series batteries are high-performance, front-terminal batteries specifically engineered for emergency backup applications in the telecommunications and broadband sectors by delivering long-duration power. Featuring a front-terminal design, the TPL Series batteries optimize installation by reducing space requirements by 40 - 50%, cutting installation time by up to 50%, and significantly lowering maintenance costs. This design enables flexible integration into standard 19" and 23" relay racks and cabinet enclosures. Engineered for both high-rate discharge and deep cycle performance, the TPL Series batteries are ideal for critical power applications where reliability and longevity are essential.

Key Features & Benefits

  • Designed for float service standby power applications
  • Design life of up to 12 years in standby service

Applications

  • Telecommunications
  • Broadband

CSB TPL12600T Construction Details

  • Special proprietary formula utilizing 99.99% pure lead ingot in product for lead oxide, lead plate grids, and other lead components
  • Maintenance-free, Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%
  • Valve-Regulated Lead Acid (VRLA) battery
  • Pure lead construction and proprietary elements

Specification Details for TPL12600T by CSB Batteries

ATTRIBUTES DETAILS
General Info
Chemistry
AGM (VRLA)
Voltage
12V
Capacity
63.7Ah @ 8 Hr Rate
Cells Per Unit
6 cells
Dimensions
    - Overall Length
    - Overall Width
    - Overall Height

11.02 inches / 280.00 mm
  4.13 inches / 105.00 mm
10.23 inches / 260.00 mm
Weight
46.72 lbs / 21.20 kgs
Container Type
ABS-FR
Terminal Type
Front Access M6
Terminal Material
Lead-electroplated pure copper
Design Life
Up to 12 Years in stand-by service at 77°F (25°C)
Warranty
1 Year Full
Electrical Specifications & Performance Characteristics
Float Charging Voltage
13.50 to 13.80 Vdc / battery at 77°F (25°C)
Equalizing Charging Voltage
14.40 to 15.00 Vdc / battery at 77°F (25°C)
Maximum Charging Current
18A
Maximum Discharge Current
800A
Internal Resistance
Approx. 6.27 mΩ
Operating Temperature Ranges
Nominal: 77°F (25°C)
Discharge: 5°F to 122°F (-15°C to 50°C)
Charge / Storage: 5°F to 104°F (-15°C to 40°C)
Self-Discharge
Less than 10% after 90 days;
Can be stored for up to 6 months at 77°F (25°C)
Fully recharging is required before usage, and charged sooner if stored at higher temperatures than 77°F (25°C)
Electrolyte
Sulfuric Acid
Construction Details
Container
ABS-FR
Cell Cover
ABS-FR
Separators
AGM
Electrolyte
Sulfuric Acid
Safety Valve
Rubber
Terminal Material
Lead-electroplated pure copper

Certifications & Safety Compliances

  • IEC 60896-21/22:2004
  • UL1973 Certified
  • UL Recognized under UL1989
  • Complies with IATA/ICAO Special Provision A67 for air transport, are classified per MG Amendment 27 as a non-hazardous material for water transport, and recognized by DOT as "Dry Charge" 49 CFR 171-189 for surface transport
  • UL Recognized Components

Options & Accessories

  • Contact a member of the Power Storage Solutions Sales Team for additional information on options and accessories.

Explore Other Models in the CSB Batteries TPL Series

  • TPL121000
  • TPL121000TFR
  • TPL121600
  • TPL121800WFR
