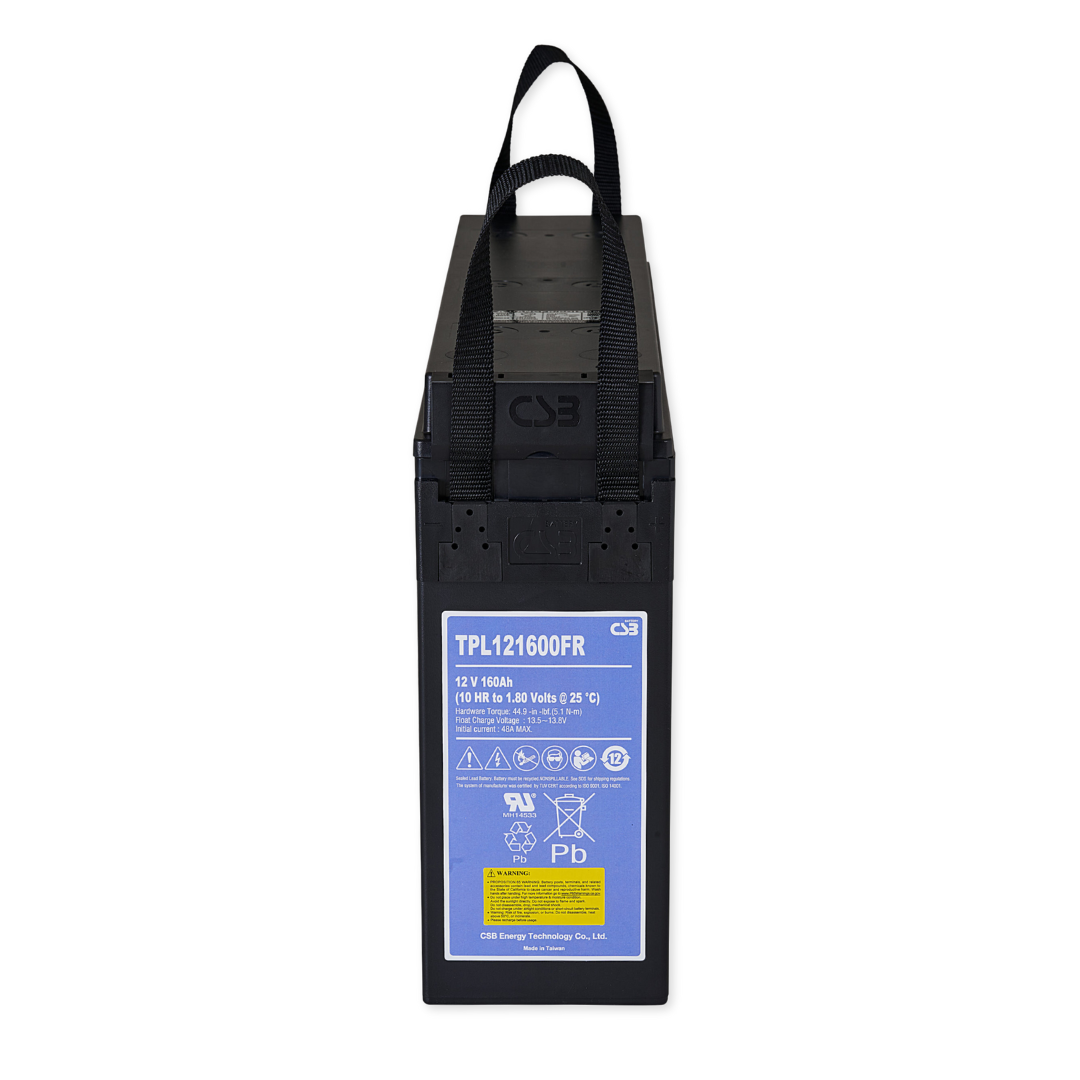

CSB Battery Telecom Power Long Life 12V 160 Ah @ 8 Hr Rate Front Terminal AGM VRLA Battery
SKU: TPL121600

CSB Battery Telecom Power Long Life 12V 160 Ah @ 8 Hr Rate Front Terminal AGM VRLA Battery

$471.82

ask a question

request quote

request service quote

Other models in this line

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT

AGM (VRLA)
Title
Title

CAPACITY

173 Ah @ 20 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

19.9 A Constant Current @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

159 Ah @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

2672 WPC @ 15 Min Rate to 1.67 VPC @ 77ºF (25ºC)
Title

design life & warranty

12 Years Design Life
1 Year Full Warranty
Title

DIMENSIONS

Length: 21.54 in
Width: 4.94 in
Height: 12.72 in
Weight: 603.9 lb
Title

certifications & compliances

49 CFR 171-189, IATA/ICAO Special Provisions A67, IEC 60896-21/22:2004, UL1973, UL1989, UL-Recognized Component
Title

industries

Telecom

Specifications

view more in-depth details on applications & specifications

CSB Battery TPL Installation Operation Manual.pdf
CSB Battery Warranty.pdf
CSB Battery TPL121600FR Specification Sheet.pdf
CSB Battery TPL Discharge Tables.pdf
CSB Battery TPL Installation Operation Manual.pdf
CSB Battery Warranty.pdf
CSB Battery TPL121600FR Specification Sheet.pdf
Title

safety

view more in-depth details on safety features & certifications

CSB Battery TPL Safety Data Sheet.pdf

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation

Title

rentals & emergency

containerized rentals

temporary battery strings & equipment rentals

disaster recovery & emergency response
Title

installation

batteries & ups systems

co / msc / cell site

grounding/pages/technical-grounding-services

Title

microgrid design

scalable battery energy storage systems (bess)

feasibility assessment & budgeting

system design, install, & maintenance
Title

technical

capacity & acceptance testing

dc power engineering & training

preventative, contract, & scheduled maintenance programs

Title

Removal, Upgrades, & recycling

battery removal, replacement, & recycling

removal & cable mining

upgrades & transition work

CSB TPL121600 AGM VRLA Battery - TPL Series

CSB's Telecom Power and Long Life (TPL) Series batteries are high-performance, front-terminal batteries specifically engineered for emergency backup applications in the telecommunications and broadband sectors by delivering long-duration power. Featuring a front-terminal design, the TPL Series batteries optimize installation by reducing space requirements by 40 - 50%, cutting installation time by up to 50%, and significantly lowering maintenance costs. This design enables flexible integration into standard 19" and 23" relay racks and cabinet enclosures. Engineered for both high-rate discharge and deep cycle performance, the TPL Series batteries are ideal for critical power applications where reliability and longevity are essential.

Key Features & Benefits

  • Designed for float service standby power applications
  • Design life of up to 12 years in standby service

Applications

  • Telecommunications
  • Broadband

CSB TPL121600 Construction Details

  • Special proprietary formula utilizing 99.99% pure lead ingot in product for lead oxide, lead plate grids, and other lead components
  • Maintenance-free, Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%
  • Valve-Regulated Lead Acid (VRLA) battery
  • Pure lead construction and proprietary elements

Specification Details for TPL121600 by CSB Batteries

ATTRIBUTES DETAILS
General Info
Chemistry
AGM (VRLA)
Voltage
12V
Capacity
160Ah @ 8 Hr Rate
Cells Per Unit
6 cells
Dimensions
    - Overall Length
    - Overall Width
    - Overall Height

21.54 inches / 547.00 mm
  4.94 inches / 124.80 mm
12.72 inches / 320.30 mm
Weight
120.78 lbs / 54.80 kgs
Container Type
ABS-FR
Terminal Type
Front Access M6
Terminal Material
Lead-electroplated pure copper
Design Life
Up to 12 Years in stand-by service at 77°F (25°C)
Warranty
1 Year Full
Electrical Specifications & Performance Characteristics
Float Charging Voltage
13.50 to 13.80 Vdc / battery at 77°F (25°C)
Equalizing Charging Voltage
14.40 to 15.00 Vdc / battery at 77°F (25°C)
Maximum Charging Current
48A
Maximum Discharge Current
800A
Internal Resistance
Approx. 3.70 mΩ
Operating Temperature Ranges
Nominal: 77°F (25°C)
Discharge: 5°F to 122°F (-15°C to 50°C)
Charge / Storage: 5°F to 104°F (-15°C to 40°C)
Self-Discharge
Less than 10% after 90 days;
Can be stored for up to 6 months at 77°F (25°C)
Fully recharging is required before usage, and charged sooner if stored at higher temperatures than 77°F (25°C)
Electrolyte
Sulfuric Acid
Construction Details
Container
ABS-FR
Cell Cover
ABS-FR
Separators
AGM
Electrolyte
Sulfuric Acid
Safety Valve
Rubber
Terminal Material
Lead-electroplated pure copper

Certifications & Safety Compliances

  • IEC 60896-21/22:2004
  • UL1973 Certified
  • UL Recognized under UL1989
  • Complies with IATA/ICAO Special Provision A67 for air transport, are classified per MG Amendment 27 as a non-hazardous material for water transport, and recognized by DOT as "Dry Charge" 49 CFR 171-189 for surface transport
  • UL Recognized Components

Options & Accessories

  • Contact a member of the Power Storage Solutions Sales Team for additional information on options and accessories.
