CSB Battery GPL Series 12V 7.2Ah @ 20 Hr Rate Flame Retardant Top Terminal F2 Tab AGM VRLA Battery
SKU: GPL1272F2FR

CSB Battery GPL Series 12V 7.2Ah @ 20 Hr Rate Flame Retardant Top Terminal F2 Tab AGM VRLA Battery

$28.29

ask a question

request quote

request service quote

Other models in this line

GPL121000

$292.83

Pre-order

GPL12400

$147.25

Pre-order

GPL12520

$184.57

Pre-order

GPL12880

$263.43

Pre-order

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT

AGM (VRLA)
Title
Title

CAPACITY

7.32 Ah @ 20 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

0.85 A Constant Current @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

6.8 Ah @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

166 WPC @ 15 Min Rate to 1.67 VPC @ 77ºF (25ºC)
Title

design life & warranty

8 Years Design Life
1 Year Full Warranty
Title

DIMENSIONS

Length: 5.94 in
Width: 2.55 in
Height: 3.88 in
Weight: 5.73 lb
Title

certifications & compliances

IEC 60896-21/22:2004, UL1973, UL1989, UL-Recognized Component, IATA/ICAO Special Provisions A67
Title

industries

General Purpose

Specifications

view more in-depth details on applications & specifications

CSB Battery GPL1272 Specification Sheet.pdf
CSB Battery Warranty.pdf
CSB GPL Series Installation Operation Manual.pdf
CSB Battery GPL Series Discharge Tables.pdf
CSB Battery GPL1272 Specification Sheet.pdf
CSB Battery Warranty.pdf
CSB GPL Series Installation Operation Manual.pdf
Title

safety

view more in-depth details on safety features & certifications

CSB GPL Series Safety Data Sheet.pdf

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation

Title

rentals & emergency

containerized rentals

temporary battery strings & equipment rentals

disaster recovery & emergency response
Title

installation

batteries & ups systems

co / msc / cell site

grounding/pages/technical-grounding-services

Title

microgrid design

scalable battery energy storage systems (bess)

feasibility assessment & budgeting

system design, install, & maintenance
Title

technical

capacity & acceptance testing

dc power engineering & training

preventative, contract, & scheduled maintenance programs

Title

Removal, Upgrades, & recycling

battery removal, replacement, & recycling

removal & cable mining

upgrades & transition work

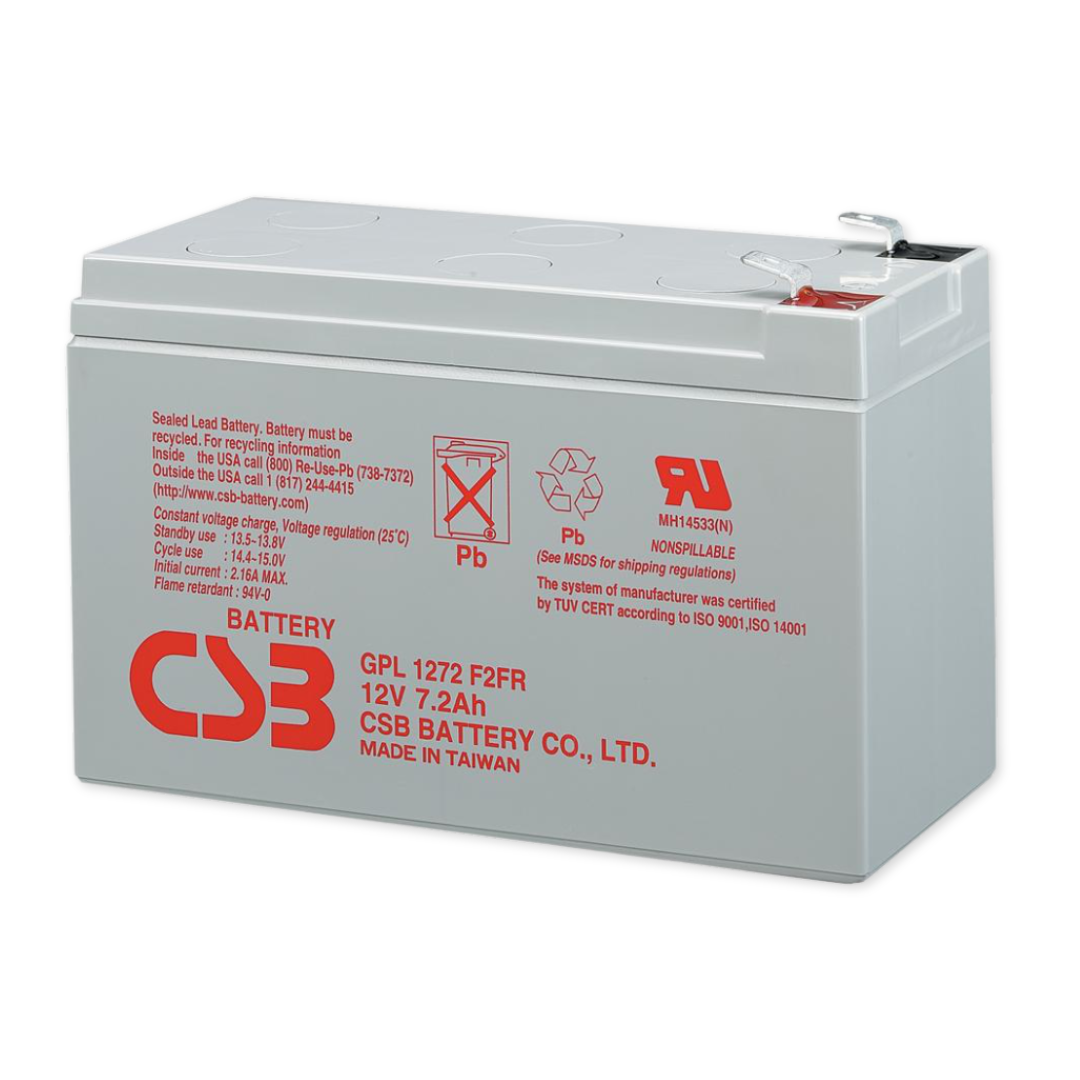

CSB GPL1272F2FR AGM VRLA Battery - GPL Series

CSB's General Purpose Long-Life (GPL) Series batteries are designed to deliver extended service life and exceptional reliability across a broad spectrum of general-purpose applications. Engineered for versatility, the GPL Series is ideal for use in security systems, emergency lighting, medical equipment, and other critical applications. Designed with an emphasis on durability, safety, and energy efficiency, CSB's GPL Series batteries deliver dependable, long-lasting power where consistent performance is essential.

Key Features & Benefits

  • Designed for float service power applications
  • Design life of up to 8 years in standby service

Applications

  • Security Lighting
  • Emergency Lighting
  • Healthcare Applications
  • Medical Devices
  • General Purpose

CSB GPL1272F2FR Construction Details

  • Valve-Regulated Lead Acid (VRLA) battery
  • Maintenance-free, Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%
  • Special proprietary formula utilizing 99.99% pure lead ingot in production for lead oxide, lead plate grids, and other lead components
  • Pure lead construction and proprietary elements

Specification Details for GPL1272F2FR by CSB Batteries

ATTRIBUTES DETAILS
General Info
Chemistry
AGM (VRLA)
Voltage
12V
Capacity
7.2Ah @ 20 Hr Rate
Cells Per Unit
6 cells
Dimensions
    - Overall Length
    - Overall Width
    - Overall Height

5.94 inches / 150.90 mm
2.55 inches / 64.80 mm
3.88 inches / 98.60 mm
Weight
5.73 lbs / 2.60 kgs
Container Type
ABS (UL 94-HB)
Flame Retardant (94 V-0) available upon request
Terminal Type
Top F2 Terminal - Faston 0.250" Tab
Terminal Material
Lead-electroplated pure copper
Design Life
Up to 8 Years in stand-by service at 77°F (25°C)
Warranty
1 Year Full
Electrical Specifications & Performance Characteristics
Float Charging Voltage
13.50 to 13.80 Vdc / battery at 77°F (25°C)
Equalizing Charging Voltage
14.40 to 15.00 Vdc / battery at 77°F (25°C)
Maximum Charging Current
2.16A
Maximum Discharge Current
130A with the F2 Terminal
Internal Resistance
Approx. 22.0 mΩ
Operating Temperature Ranges
Nominal: 77°F (25°C)
Discharge: 5°F to 122°F (-15°C to 50°C)
Charge / Storage: 5°F to 104°F (-15°C to 40°C)
Self-Discharge
Less than 10% after 90 days;
Can be stored for up to 6 months at 77°F (25°C)
Fully recharging is required before usage, and charged sooner if stored at higher temperatures than 77°F (25°C)
Electrolyte
Sulfuric Acid
Construction Details
Container
ABS (UL 94-HB)
Flame Retardant (94 V-0) available upon request
Cell Cover
ABS
Separators
AGM
Electrolyte
Sulfuric Acid
Safety Valve
Rubber
Terminal Material
Lead-electroplated pure copper

Certifications & Safety Compliances

  • IEC 60896-21/22:2004
  • UL1973 Certified
  • UL Recognized under UL 1989
  • Complies with IATA/ICAO Special Provision A67 for air transport, are classified per MG Amendment 27 as a non-hazardous material for water transport, and recognized by DOT as "Dry Charge" 49 CFR 171-189 for surface transport
  • UL Recognized Components

Options & Accessories

  • Contact a member of the Power Storage Solutions Sales Team for additional information on options and accessories.

Explore Other Models in the CSB Batteries GPL Series

  • GPL12400
  • GPL12520
  • GPL12880
  • GPL121000
