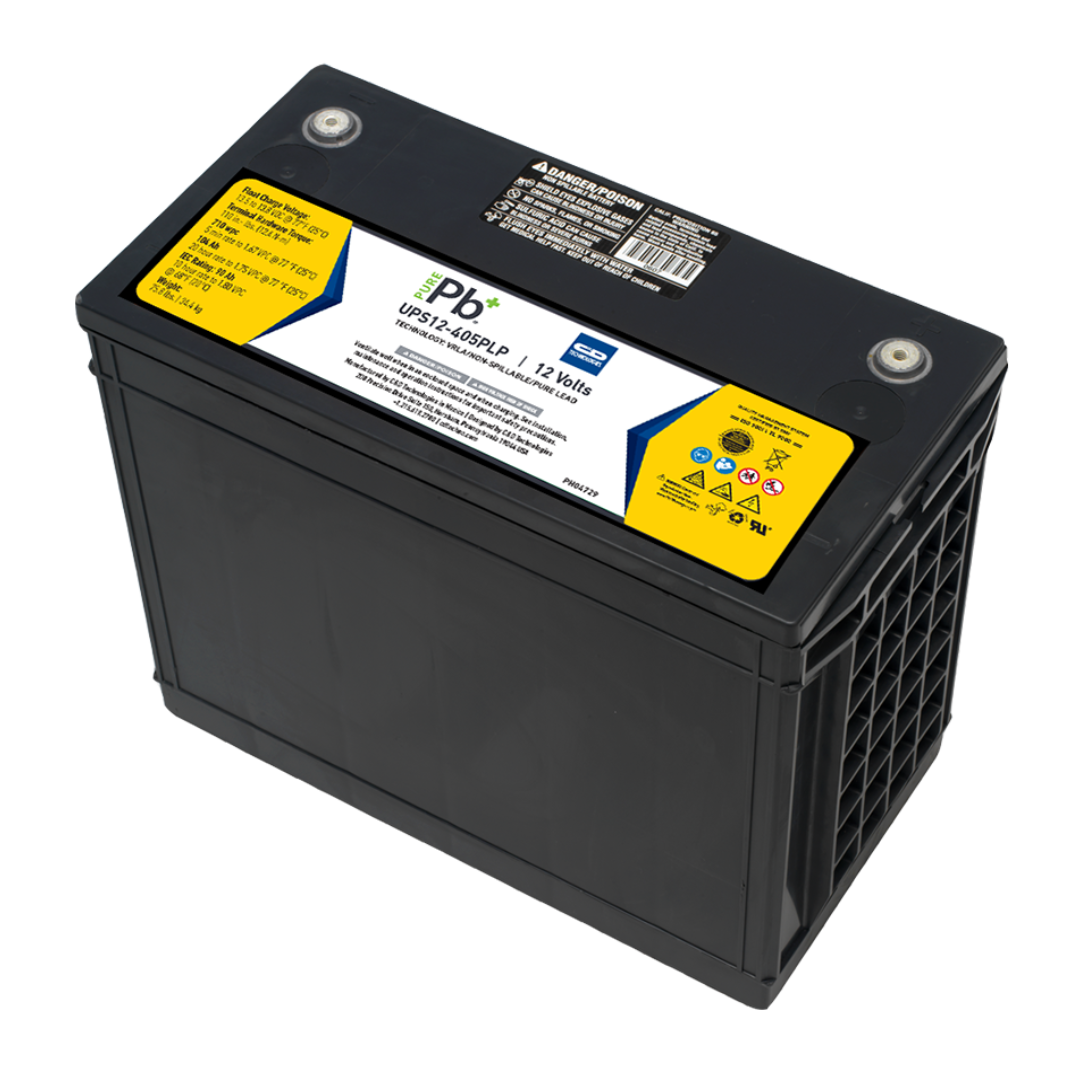

C&D Technologies UPS12-545PLP Pure Lead Plus VRLA Battery - C&D PLP Series

C&D Technologies’ PLP Series (Pure Lead Plus) UPS Batteries feature the safe, sustainable design of VRLA technology. Utilizing proprietary paste and grid technology, Pure Lead Plus batteries can reduce replacement costs by up to 40%. Engineered for longevity, these batteries offer a 12+ year design life @ 77˚F (25˚C) with storage capability of 2 years at 77˚F (25˚C) with minimum upkeep. Developed to deliver reliable, long-term performance, Pure Lead Plus batteries provide dependable standby power when conventional units fall short. The Pure Lead Plus line is the smart, cost-effective choice for Uninterruptible Power Supply (UPS) systems and Data Center backup applications.

Power Storage Solutions is an official authorized distributor for the OEM - C&D Technologies.

Key Features & Benefits

• Pure Lead Plus batteries can operate in temperatures up to 86˚F (30˚C) and allow you to run your data center at a higher temperature, saving money on cooling costs and helping to achieve your sustainability goals
• Requires up to 40% fewer batteries than leading competitors
• Reduce cabinet space required for your desired runtime by up to 28%
• 12+ year design life @ 25˚C (77˚F) with storage capability of 2 years at (25˚C) with minimum upkeep
• Standard warranty of 5 years at 86˚F (30˚C)

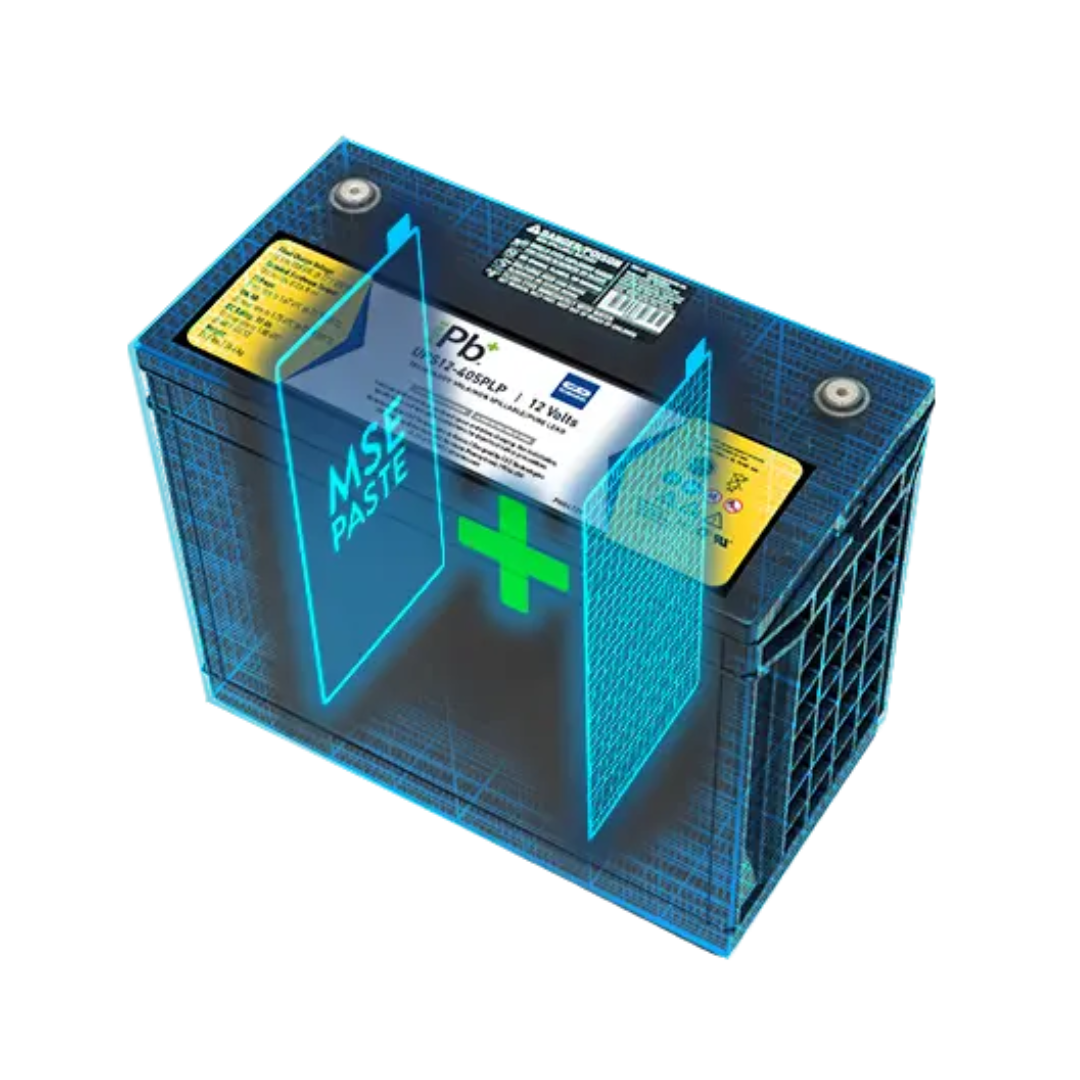

• MSE’s Advanced proprietary paste processing for high active material utilization resulting in low float
• Published rates down to 1 minute
• Patented UL Recognized Flame-arresting vents in each cell for safety
• Batteries are 98% recyclable
• Not restricted for air transport – Complies with IATA/ICAO Special Provisions A67

Applications

• Uninterruptible Power Supply (UPS)
• Data Centers
• Healthcare
• Government

C&D UPS12-545PLP Construction Details

• Valve Regulated Lead Acid (VRLA) Battery
• Patented C&D True Front Access (TFA) design reduces number of connections needed, improves power efficiency, and increases measurement accuracy
• Patented Long-Life Alloy in the grids to minimize grid growth, reduce gassing, and extend battery life
• Patented UL Recognized Flame-arresting vents in each cell for safety
• Thermally welded and helium leak tested case-to-cover bond ensures a robust leak proof seal
• Can be operated in any orientation
• Available in both Top terminal and True Front Access (TFA) format

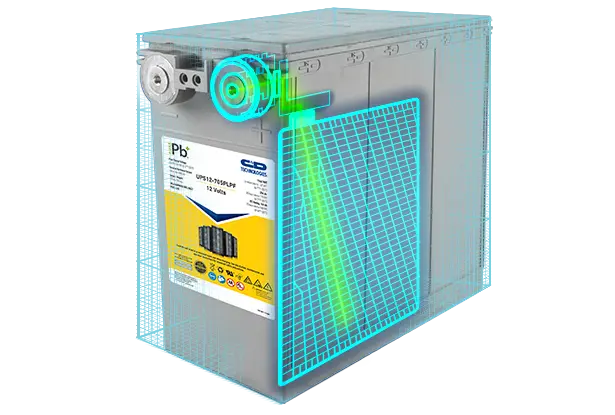

• True Front Access design maximizes energy density and minimizes internal resistance by providing a direct connection from the plates to the terminals
• Not restricted for air transport – Complies with IATA/ICAO Special Provisions A67

Specification Details for UPS12-545PLP by C&D

Certifications & Safety Compliances

• TAA Compliant
• Complies with UL1778, UL924, UL1989, UL94 V-2
• Complies with BS6290-4
• Complies with IEC-896-2
• UL Recognized Components
• Not restricted for air transport - Complies with AITA/ICAO Special Provisions A67
• More information on UL Safety Standards
• More information on ISO Safety Standards
• More information on RoHS Safety Standards & Compliances
• More information on IEC Safety Standards
• More information on NERC Safety Standards & Compliances
• More information on ETSI Safety Standards
• More information on ANSI Safety Standards & Compliances
• More information on Transportation Regulations

Options & Accessories

• Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.

Explore Other Models in the C&D PLP Series

• UPS12-105PLP
• UPS12-155PLP
• UPS12-215PLP
• UPS12-305PLP
• UPS12-355PLP
• UPS12-405PLP
• UPS12-495PLP
• UPS12-605PLP
• UPS12-675PLPF
• UPS12-705PLPF
• UPS12-1005PLPF

• UPS6-625PLP
• For more information on this product line, visit the C&D Technologies website.
