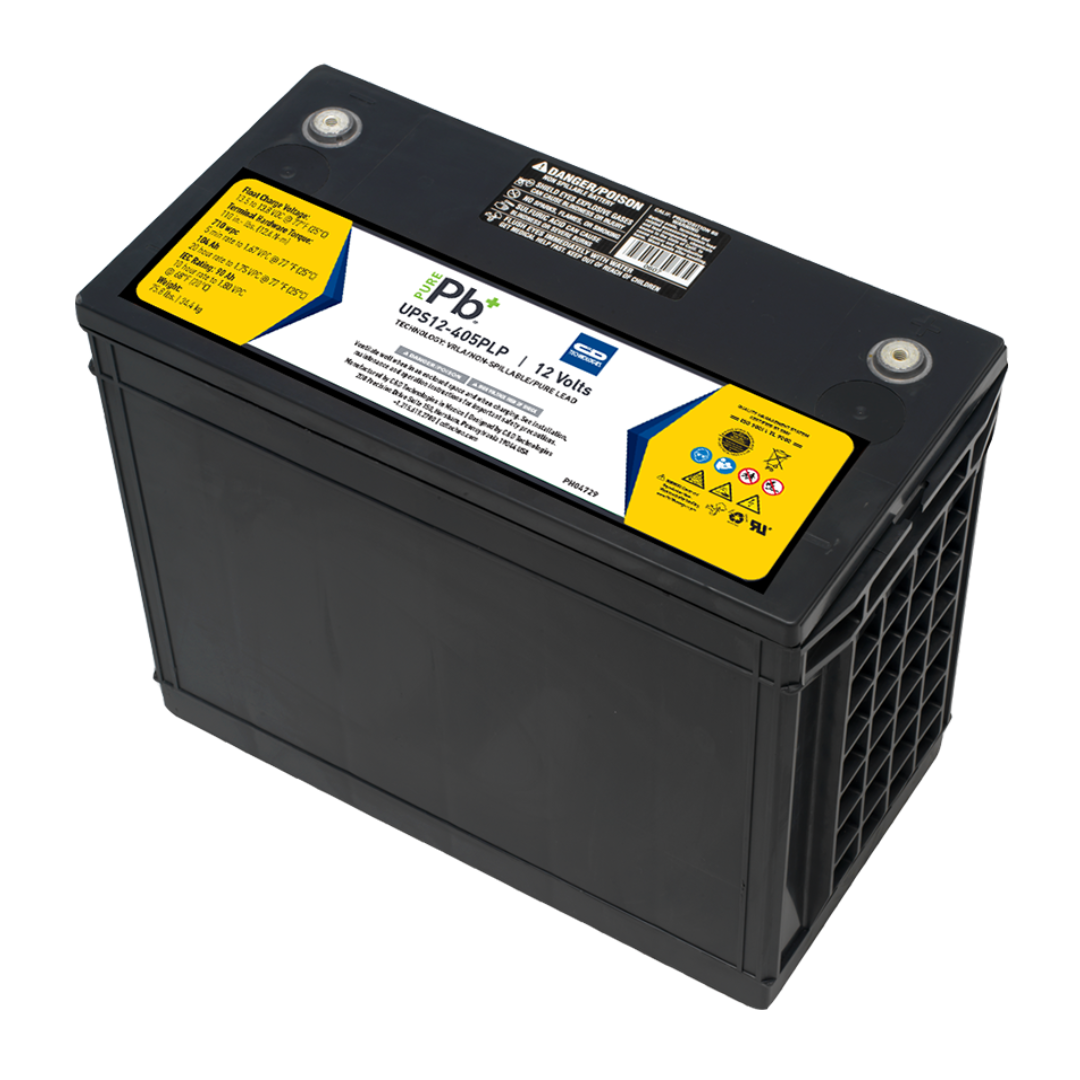

C&D Technologies UPS12-495PLP Pure Lead Plus VRLA Battery - C&D PLP Series
C&D Technologies’ PLP Series (Pure Lead Plus) UPS Batteries feature the safe, sustainable design of VRLA technology. Utilizing proprietary paste and grid technology, Pure Lead Plus batteries can reduce replacement costs by up to 40%. Engineered for longevity, these batteries offer a 12+ year design life @ 77˚F (25˚C) with storage capability of 2 years at 77˚F (25˚C) with minimum upkeep. Developed to deliver reliable, long-term performance, Pure Lead Plus batteries provide dependable standby power when conventional units fall short. The Pure Lead Plus line is the smart, cost-effective choice for Uninterruptible Power Supply (UPS) systems and Data Center backup applications.
Power Storage Solutions is an official authorized distributor for the OEM - C&D Technologies.
Key Features & Benefits
- Pure Lead Plus batteries can operate in temperatures up to 86˚F (30˚C) and allow you to run your data center at a higher temperature, saving money on cooling costs and helping to achieve your sustainability goals
- Requires up to 40% fewer batteries than leading competitors
- Reduce cabinet space required for your desired runtime by up to 28%
- 12+ year design life @ 25˚C (77˚F) with storage capability of 2 years at (25˚C) with minimum upkeep
- Standard warranty of 5 years at 86˚F (30˚C)
- MSE’s Advanced proprietary paste processing for high active material utilization resulting in low float
- Published rates down to 1 minute
- Patented UL Recognized Flame-arresting vents in each cell for safety
- Batteries are 98% recyclable
- Not restricted for air transport – Complies with IATA/ICAO Special Provisions A67
Applications
- Uninterruptible Power Supply (UPS)
- Data Centers
- Healthcare
- Government

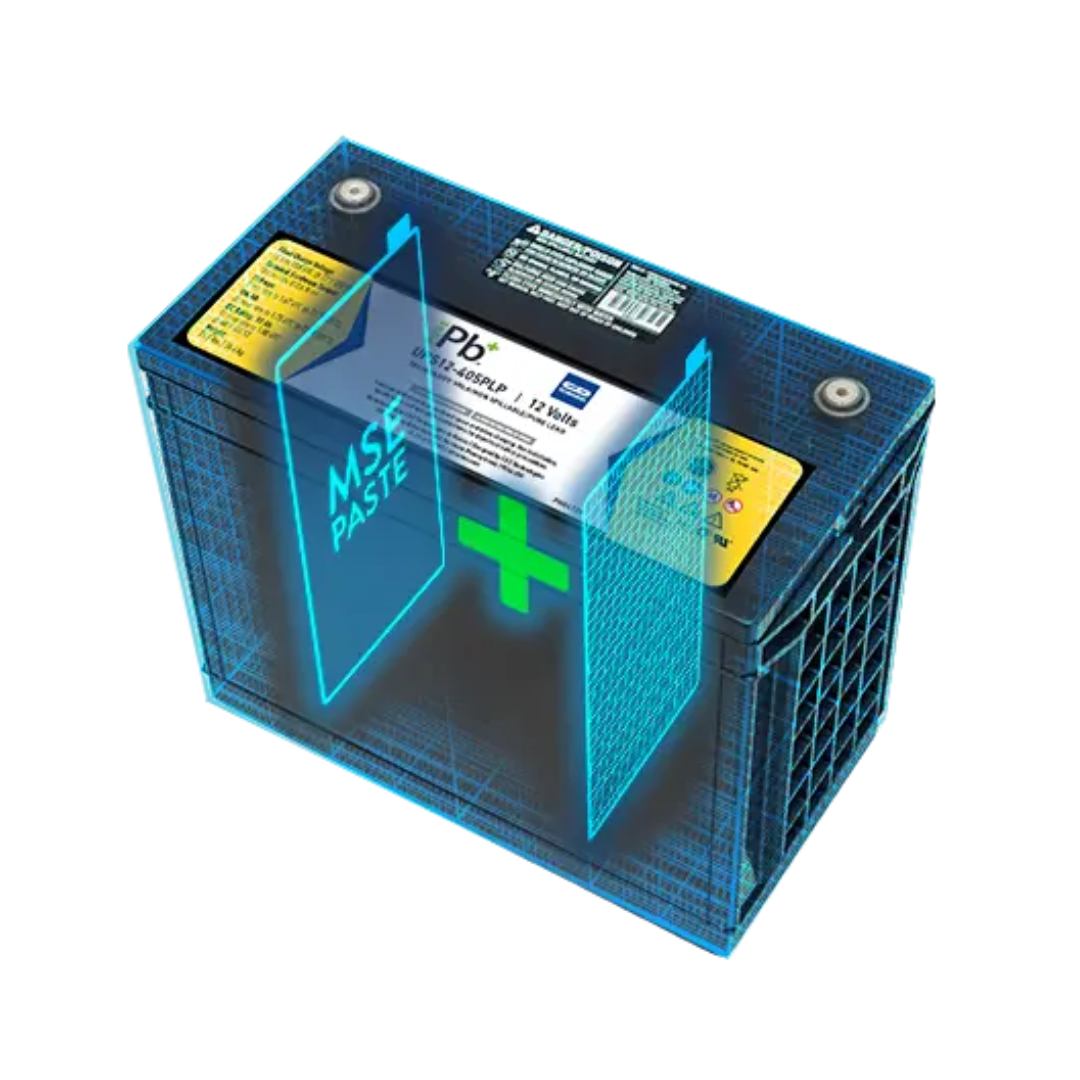

C&D UPS12-495PLP Construction Details
- Valve Regulated Lead Acid (VRLA) Battery
- Patented C&D True Front Access (TFA) design reduces number of connections needed, improves power efficiency, and increases measurement accuracy
- Patented Long-Life Alloy in the grids to minimize grid growth, reduce gassing, and extend battery life
- Patented UL Recognized Flame-arresting vents in each cell for safety
- Thermally welded and helium leak tested case-to-cover bond ensures a robust leak proof seal
- Can be operated in any orientation
- Available in both Top terminal and True Front Access
(TFA) format

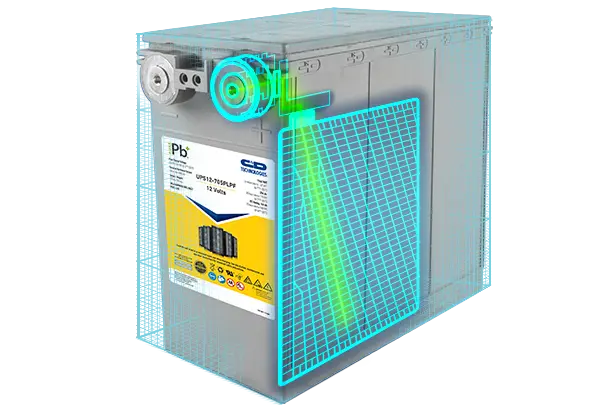

- True Front Access design maximizes energy density and
minimizes internal resistance by providing a direct connection from the
plates to the terminals
- Not restricted for air transport – Complies with
IATA/ICAO Special Provisions A67
Specification Details for UPS12-495PLP by C&D
| ATTRIBUTES |
DETAILS |
General Info |
Chemistry |
Pure Lead AGM (VRLA) |
Voltage |
12 V |
Capacity |
495WPC @ 15 Min Rate |
Cells Per Unit |
|
|
Dimensions
- Overall Length
- Overall Width
- Overall Height
|
13.60 inches / 344.70 mm
6.80 inches / 172.70 mm
10.90 inches / 277.70 mm
|
Weight |
100.00 lbs / 45.40 kgs |
Container Type |
POLY-FR |
Terminal Type |
|
Design Life |
12+ year design life at 77°F (25°C)
|
Warranty |
|
Electrical Specifications & Performance Characteristics |
Float Voltage |
13.65 ± 0.15 VDC average per 12V unit |
Operating Temperature Ranges |
Nominal: 74°F to 80°F (23°C to 27°C)
Discharge Temperature: -40°F to 140°F (-40°C to 60°C)
Charge Temperature: -10°F to 140°F (-23°C to 60°C)
|
Specific Gravity |
1.300 |
Electrolyte |
Sulfuric Acid |
Construction Details |
Container Material |
POLY-FR
|
Electrolyte |
Sulfuric Acid |
Safety Vent System |
Patented UL Recognized Flame-arresting vents in each cell
|
Certifications & Safety Compliances
Options & Accessories
- Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.
