SKU: 3DJC-09HP

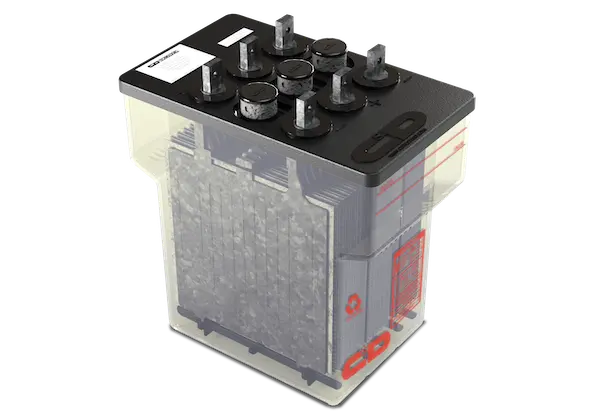

C&D DJCHP 6V 222Ah PVC Jar, Ca, 1.250 SPG VLA Battery

$1,112.58
Pre-order

Other models in this line

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT

Flooded Lead Calcium (PbCa)
Indoor, Outdoor Controlled
Title
Title

CAPACITY

27.7 A Constant Current @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

222 Ah @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

476 WPC @ 15 Min Rate to 1.67 VPC @ 77ºF (25ºC)

Title

design life & warranty

20 Years Design Life
1 Year Full 19 Pro Rata Warranty
Title

DIMENSIONS

Length: 8.10 in
Width: 13.60 in
Height: 15.20 in
Weight: 113.0 lb
Title

certifications & compliances

TAA Compliant, BAA Compliant, UL94 V-0
Title

industries

Telecom, Utility, Petrochemical

Specifications

view more in-depth details on applications & specifications

C&D Flooded VLA Installation Operation Manual.pdf
C&D DJ HP 3 Year Full 17 Prorata Warranty.pdf
C&D RDB Rack Assembly Instructions.pdf
C&D DJ HP Specification Sheet.pdf
C&D DJ HP Rack Configurations.pdf
Title

safety

view more in-depth details on safety features & certifications

Safety C&D Lead Electrolyte Amounts.pdf
Safety C&D DJ HP Safety Data Sheet.pdf

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation

Title

rentals & emergency

container rentals

battery rentals

emergency rentals & response

Title

installation

batteries

c0 / msc / cell site

power equipment

Title

microgrid design

feasibility assessment & budgeting

system design, install, & maintenance

operations & optimization

Title

technical

capacity & acceptance testing

battery & equipment commissioning

maintenance

Title

recycling

batteries - remove, replace, recycle

approved transport & smelting

C&D Technologies 4DJC-09HP Flooded Lead Calcium (PbCa) VLA Battery - C&D DJ-HP Series

C&D Technologies DJ-HP (High Performance) Series batteries are engineered for long-lasting performance and reliability. Built with proprietary technology and high-quality materials, they require less maintenance and offer extended service life. Ideal for Telecom, Data Centers, and Uninterruptible Power Supply (UPS) applications, C&D DJ-HP Series batteries deliver dependable power across a wide range of uses. A recessed vent area helps collect water and acid spills away from the posts and cover, minimizing clean-up and maintenance while further extending battery life.

Key Features & Benefits

  • For Telecoms, Switchgear & Control, and Uninterruptible Power Supply (UPS) Applications
  • Top suspended positive plate design allows free downward growth without pressure on the jar, cover, or post seals extending reliability and product life
  • Recessed vent area to collect water and acid spills, keeping them away from the cover and posts lowering maintenance and clean-up costs
  • Self-extinguishing features (LOI > 32) of flame retardant cover material provides added safety and protection
  • Low evaporation, flame arrestor vents protect against external sources igniting the hydrogen gas within the cell for improved battery safety
  • Unique jar design facilitates faster and safer installation
  • Compact, optimized product size nets up to 40% floor space reduction saving value space
  • C&D capacity tests every DJ-HP battery to 100% of 1 hour publishing rating, which ensures 100% capacity out-of-the-box at this rate, no need to field cycle the batteries to reach the rated capacity, saving time and money for users
  • Individual posts allow for monitoring of individual cell performance in a multi-cell container

Applications

  • Telecommunications
  • Uninterruptible Power Supply (UPS)
  • Electric Utility Substations
  • Manufacturing Facilities
  • Assembly Lines
  • Process Controls
  • Communication Systems
  • Petrochemical Processing Plants
  • Pipelines
  • Emergency Systems
  • Railway Signals

C&D 3DJC-09HP Construction Details

  • Reliable tongue and groove jar-to-cover seal design provides increased adhesive coverage area which offers unprecedented seal integrity during service
  • Wrapped separator design extends the cycle life improving product reliability
  • Enhanced post seal design allows for growth without transmitting forces to the battery cover
  • Individual posts use standard lead-plated copper connectors decreasing connection resistance
  • Transparent container allows for visual inspection of the plates

Specification Details for 3DJC-09HP by C&D

ATTRIBUTES DETAILS
General Info
Chemistry
Flooded Lead Calcium (PbCa)
Voltage
6V
Capacity
222 Ah @ 8 Hr Rate
Cells Per Unit
3 cells
Dimensions
    - Overall Length
    - Overall Width
    - Overall Height

  8.10 inches / 206.00 mm
13.60 inches / 345.00 mm
15.20 inches / 387.00 mm
Weight
113.00 lbs / 51.00 kgs
Container Type
PVC-FR
Terminal Type
Rectangular leas posts; 2 per cell
Design Life
20 Years
Warranty
1 Year Full, 19 Year Pro Rate
Electrical Specifications & Performance Characteristics
Recommended Float Voltage
2.22 to 2.27 VPC at 1.250 specific gravity
Operating Temperature Ranges
Nominal: 77°F (25°C)
Recommended Operating Temperature: 60°F to 90°F (15°C to 32°C)
Operating Temperature Limits: 32°F to 120°F (0°C to 49°C)
Self-Discharge
A refreshing charge is needed after being stored for:
180 days at 0°F to 77°F (-17°C to 25°C)
90 days at 78°F to 90°F (25°C to 32°C)
45 days at 91°F to 120°F (32°C to 48°C)
Specific Gravity
1.250
Electrolyte
Sulfuric Acid
Construction Details
Container Material
Transparent, high-impact PVC; LOI > 32; UL94 V-0
Cover Material
High-impact, flame-retardant PVC with tongue-and-groove seal;
Flammability ratings: UL94 V-0
ASTM D-635 self-extinguishing
Terminal Material
Lead-plated copper connectors
Safety Vent System
Low evaporation, flame arrestor vents
Separators
U-wrapped, microporous with fibrous glass mat

Certifications & Safety Compliances

  • TAA Compliant
  • BAA Compliant
  • UL94 V-0 Jar and Cover

Options & Accessories

  • Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.
