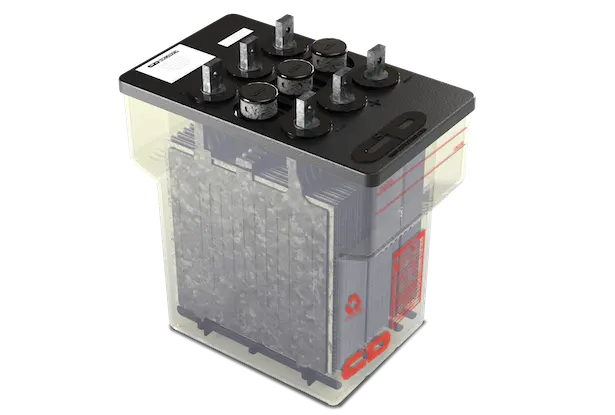

C&D Technologies 3DJC-05HP VLA Battery - C&D DJ-HP Series
C&D Technologies’ DJ-High Performance (DJ-HP) Valve Regulated Lead Acid (VRLA) batteries are versatile energy storage solutions ideal for Telecom, Data Center, Utility, and other critical power applications. Their recessed vent design helps capture water and acid spills away from posts and the cover, reducing maintenance requirements and cleanup costs while extending service life. Engineered with proprietary manufacturing techniques and high-quality materials, DJ-HP batteries deliver superior performance and long-term reliability with minimal maintenance. C&D’s DJ-HP flooded batteries provide high performance in a compact footprint for UPS, Telecom, Switchgear and Control applications. Their unique jar design enables faster, safer installation, and the tongue-and-groove jar-to-cover seal ensures exceptional adhesive coverage and industry-leading seal integrity throughout the battery’s service life.
Key Features & Benefits
- C&D capacity tests every DJ-HP battery to 100% of 1 hour published rating which ensures 100% capacity out-of-the-box at this rate (no need to field cycle the batteries to reach rated capacity) saving time and money for users
- Compact, optimized product size nets up to 40% floor space reduction - saving valuable space
- Reliable tongue and groove jar-to-cover seal design provides increased adhesive coverage area - offering unprecedented seal integrity during service
- Recessed vent area to collect water and acid spills, keeping them away from posts and cover - lowering maintenance and clean-up costs
- Soft-cup and epoxy post seal allows growth without transmitting force to the cover
- Unique jar design facilitates faster and safer installation
- All posts and connectors reside above the jar cover
- Individual posts allow monitoring of individual cell performance in a multi-cell container
- Optimized grid alloy and design minimizes plate growth
- 20-year design life
Applications
- Telecommunications
- Data Centers
- Uninterruptible Power Supply (UPS)
- Energy & Infrastructure
- Utilities & Switchgear
- Utility Substations
- Manufacturing Facilities Processing Plants
- Emergency Systems
- Railway Signals
C&D 3DJC-05HP Construction Details
- Flooded, Vented Lead Acid (VLA) battery
- Self-extinguishing features (LOI >32) of flame retardant (FR) cover and jar material - providing added protection
- Low-evaporation, flame-arrester vent to extend watering intervals and prevent external sparks from reacting with the hydrogen inside the cell - improving safety
- Top suspended positive plate design allows free downward growth without pressure on jar, cover or post seal - extending reliability and product life
- Individual posts use standard lead-plated copper connectors decreasing connection resistance
- Wrapped separator design extends cycle life - improving product reliability
Specification Details for 3DJC-05HP by C&D
| ATTRIBUTES |
DETAILS |
General Info |
Chemistry |
Flooded Lead Calcium (PbCa) |
Voltage |
6 V |
Capacity |
136Ah @ 8 Hour Rate |
Cells Per Unit |
|
|
Dimensions
- Overall Length
- Overall Width
- Overall Height
|
8.10 inches / 205.74 mm
13.60 inches / 345.44 mm
15.20 inches / 386.08 mm
|
Weight |
90.00 lbs / 41.00 kgs |
Container Type |
PVC-FR |
Terminal Type |
Rectangular lead post: 2 per cell |
Terminal Material |
Lead-plated copper connectors
|
Design Life |
|
Warranty |
3 Year Full, 17 Year Pro Rata
|
Electrical Specifications & Performance Characteristics |
Float Voltage |
2.20 to 2.25 VPC @ 77°F (25°C) |
Equalizing Charging Voltage |
2.33 to 2.38 VPC @ 77°F (25°C) |
Recommended Operating Temperature |
Nominal: 74°F to 80°F (23°C to 27°C)
Recommended Storage Temperature: 60°F to 85°F (16°C to 29°C)
Recommended Operating Temperature: 60°F to 90°F (16°C to 32°C)
Operating Temperature Limits: 32°F to 120°F (0°C to 49°C)
|
Storage Period |
Can be stored for up to 6 months at 77°F (25°C)
180 Days when stored at 0°F to 77°F (-18°C to 25°C)
90 Days when stored at 78°F to 90°F (26°C to 32°C)
45 Days when stored at 91°F to 120°F (33°C to 49°C)
|
Specific Gravity |
1.250 |
Electrolyte |
Sulfuric Acid |
Construction Details |
Container Material |
Transparent, high-impact PVC, LOI>32, UL94 V-0
|
Cover Material |
High impact, flame-retardant PVC with tongue-and-groove seal
Flammability ratings: UL94-V0; ASTM D-635 self-extinguishing
|
Separators |
U-wrapped, microporous with fibrous glass mat
|
Safety Vent System |
Flame-arrestor/low-evaporation type |
Certifications & Safety Compliances
Options & Accessories
- Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.
Explore Other Models in the C&D DJ-HP Series
- 3DJC-07HP
- 3DJC-09HP
- 3DJC-11HP
