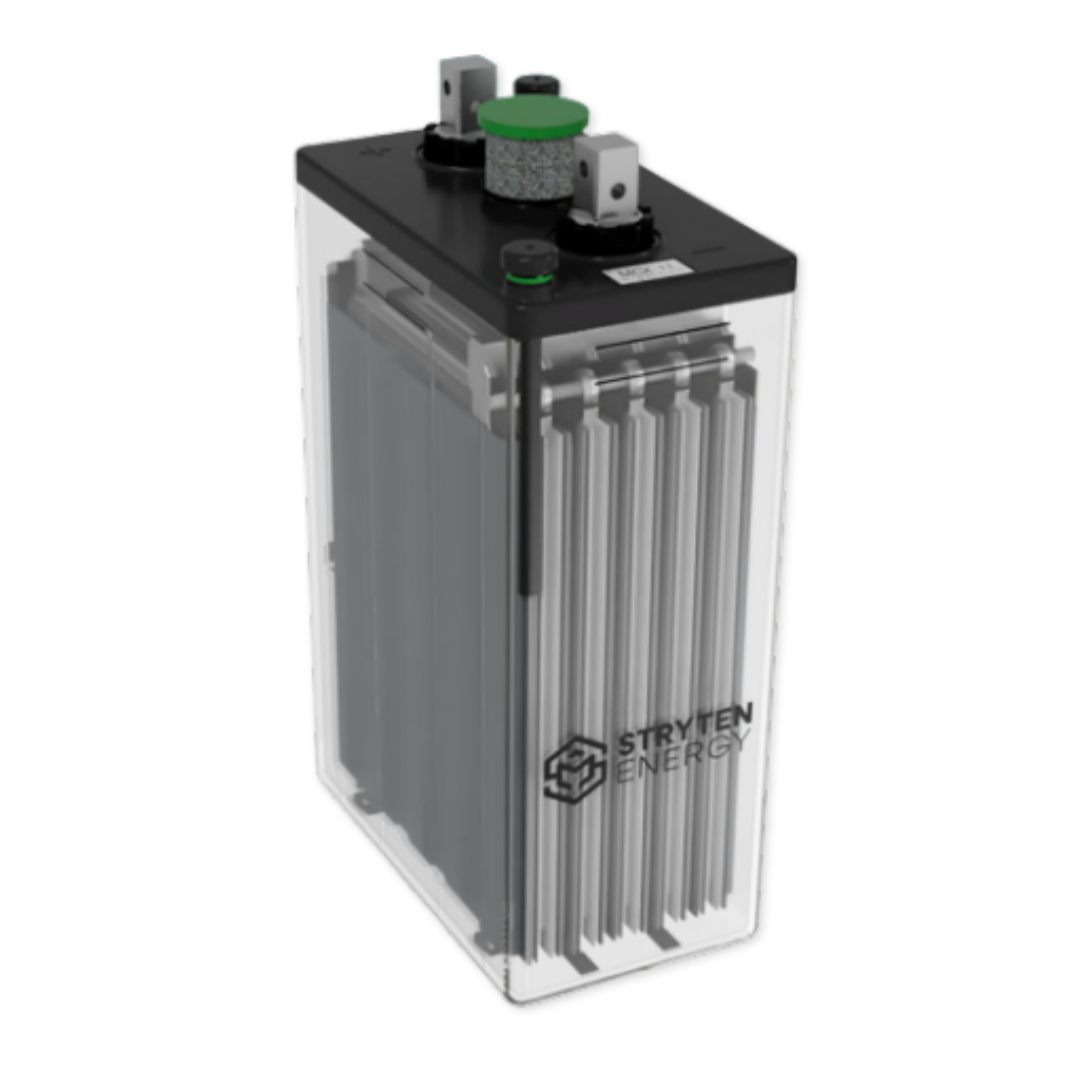

Stryten Energy E-Series MCX-13 Flooded Lead Calcium Battery - MCX Product Line
Stryten Energy's E-Series MCX Flooded Lead Calcium batteries deliver dependable, long-duration power solutions tailored for Telecom, Electric Utilities, and other mission-critical applications requiring consistent current or constant power output. Engineered for performance in long discharge environments, the MCX Series offers a wide capacity range from 192 to 480 amp-hours – accommodating diverse application requirements across the utility, petrochemical, microgrid, and other industrial sectors. Built with optimized grids and high-quality separators, these flooded batteries are designed to maximize service life while resisting the effects of grid corrosion and growth. This ensures sustained reliability and lower maintenance over time. The Flooded MCX Product Line exemplifies safety, longevity, and proven power performance for demanding long-duration applications.
Key Features & Benefits
- Design life of up to 20 years
- Reduced grid growth and corrosion
- Flame retardant case and cover options
- Enhanced safety and accessibility features
- Easy maintenance and installation
- Fully recyclable
Applications
- Emergency Lighting
- Central Office
- Inside Plant
- Network Closet
- Off-Grid Systems
- Oil & Gas
- Outside Plant
- Renewable Energy
- Utilities & Switchgear
- Solar
- Transformer Substations
- Substations
- Safety Lighting
- Security Lighting
- Deep Cycle
- General Purposes
Stryten MCX-13 Construction Details
- Heavy-duty container (ABS) and (SAN) cover plastics for single-cell and multi-cell configurations
- Two 1 inch square lead posts per cell
- Dual seal (O-ring and flat gasket) design to prevent acid creep into the post area
- Flat plate flooded design with lead-calcium alloy
- Electrolyte level lines on all container faces
- Combination flash arrester/fill funnel for each cell
- Electrolyte withdrawal sampling tubes for specific gravity readings
Specification Details for MCX-13 by Stryten Energy
| ATTRIBUTES |
DETAILS |
General Info |
Chemistry |
Flooded Lead Calcium (PbCa) |
Voltage |
2V |
Capacity |
520Ah @ 8 Hr Rate |
Cells Per Unit |
|
|
Dimensions
- Length
- Width
- Height
|
6.50 inches / 165 mm
11.13 inches / 283 mm
18.25 inches / 464 mm
|
Weight |
124 lbs / 56 kgs |
Container Type |
Styrene Acrylonitrile (SAN) Plastic
|
Terminal Type |
|
Terminal Material |
|
Design Life |
20 Years |
Warranty |
1 Year Full 20 Pro Rata |
Electrical Specifications & Performance Characteristics |
Float Charging Voltage |
2.17 VPC - 2.25 VPC ± 0.05 VPC |
Equalizing Charging Voltage |
2.24 VPC - 2.39 VPC ± 0.05 VPC |
Internal Resistance |
Approx. 5 mΩ |
Operating Temperature Ranges |
Nominal: 60°F (16°C) - 90°F (32°C)
Charge: 70°F (21°C) - 90°F (32°C)
Storage: 60°F (16°C) - 90°F (32°C)
|
Specific Gravity |
1.215 @ 77°F (25°C)
|
Electrolyte |
Lead Calcium / Lead Calcium Tin
|
Construction Details |
Cell Cover |
Acrylonitrile Butadiene Styrene (ABS) Plastic
|
Grid Alloy |
Positive: Lead-Calcium-Tin
Negative: Lead-Calcium
|
Separators |
|
Retainers |
|
Posts |
Two 1 inch / 25.4 mm Square Posts Per Cell
|
Post Seals |
Floating "O" Ring - Seal Nut
|
Vents |
Stryten Energy "Pre-Vent" Flame Arrester
|
Level Lines |
High and Low - All Jar Faces
|
Electrolyte Height Above Plates |
|
Electrolyte Withdrawal Tubes |
|
Sediment Space |
|
Inter-Cell Connectors
|
Lead Plated Copper |
|
Positive Plate Dimensions
- Height
- Width
- Thickness
|
11.56 inches / 293.6 mm
9.19 inches / 233.4 mm
0.325 inches / 8.26 mm
|
|
Negative Plate Dimensions
- Height
- Width
- Thickness
|
11.56 inches / 293.6 mm
9.19 inches / 233.4 mm
0.220 inches / 5.59 mm
|
Certifications & Safety Compliances
- UL Recognized Components
- UL94 V-0
- Flame Retardant Case & Cover
Options & Accessories
- Contact a member of the Power Storage Solutions Sales Team for additional information on options and accessories.
