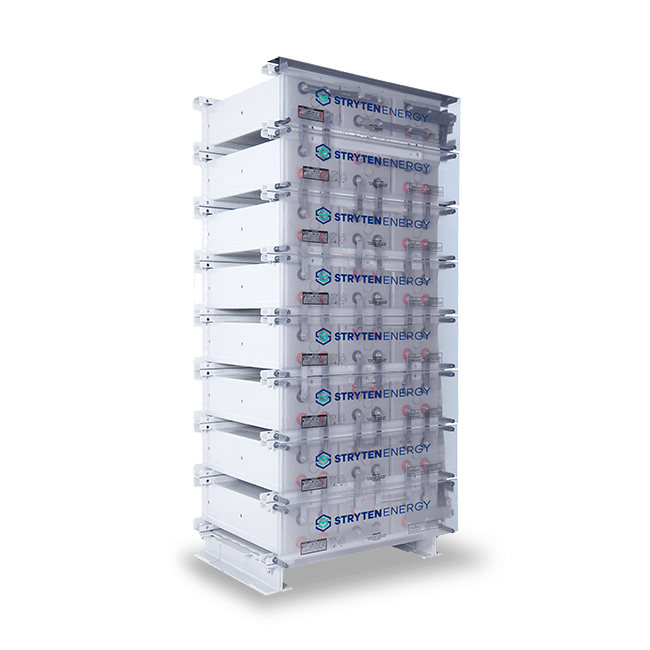

Stryten Energy 100G27 AGM VRLA Battery - Stryten E-Series Absolyte AGP
Stryten Energy's Absolyte APG 2 Volt valve regulated lead-acid (VRLA) batteries deliver reliable and long-lasting power for a wide range of critical applications, including telecommunications, uninterruptible power supply (UPS), electric utilities, railroads, and renewable energy. Absolyte AGAP batteries are engineered for both standby float and cycling use, these cells offer capacities from 104 to 4800 Ah, a 20-year float life at 77°F (25°C), and up to 1200 cycles at 80% depth of discharge, making them a durable and efficient energy storage solution.
Key Features & Benefits
- High capacity in a small footprint, which frees up valuable floor space for other equipment
- Lead-Calcium-Tin positive grid alloy provides a long life in both float and cycling applications as well as outstanding recovery from deep discharges
- Low resistance separators allow for improved high-rate discharge performance
- Modular steel trays are designed for easy installation ad balanced thermal management
- Each cell is barcoded for product traceability
- Flame retardant container and cover UL94 V-0; 28% L.O.I. polypropylene is standard; non-flame retardant is optional
Applications
- Telecommunications
- Uninterruptible Power Supply (UPS)
- Switchgear and Control
- Railroad Signal and Communications
- Solar Power
- Marine Alternative Energy Systems

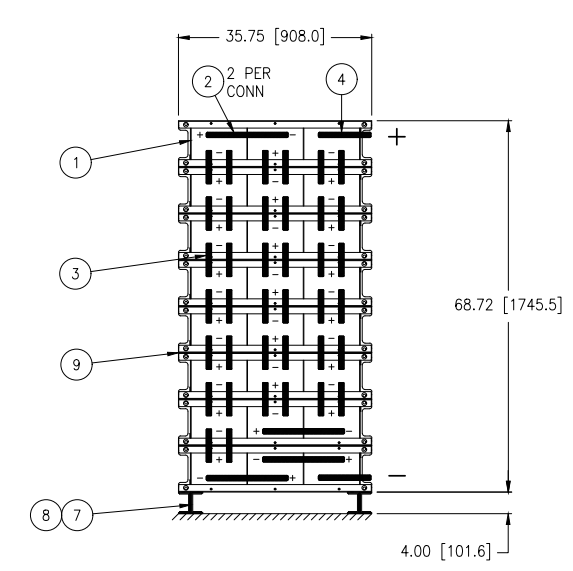

Stryten E-Series Absolyte AGP 100G27-M8702410027018AELV Construction Details
- Absorbent glass mat (AGM) separators provide efficient operation resulting in the highest oxygen recombination efficiency (>99%)
- Jar and cover are heat-sealed and bead-smoothed for a more reliable seal
- Positive plate grid alloy is ideal for both float and cycling applications
- Space is provided so the positive plate growth can occur away from the post and cover seals, which will increase battery life
- High separator compression reduces the possibility of loss of capacity and degradation of the plate-to-separator contact
- Post access is optimized for ease of maintenance and assessment of battery health
- Flame retardant container and cover (UL94 V-0)
Specification Details for 100G27-M8702410027018AELV by Stryten Energy
| ATTRIBUTES |
DETAILS |
General Info |
Chemistry |
2V AGM (VRLA) |
Voltage |
48V |
Capacity |
1296 Ah @ 8 Hr Rate |
Cells Per Unit |
|
|
Dimensions
- Overall Depth
- Overall Width
- Overall Height
|
26.38 inches / 670.05 mm
35.75 inches / 908.05 mm
72.72 inches / 1,847.09 mm
|
Weight |
5,224.00 lbs / 2,369.57 kgs |
Container Type |
|
Terminal Type |
|
Terminal Material |
|
Design Life |
|
Warranty |
Telecom 7 Year Full; UPS and Other Applications 5 Year Full |
Electrical Specifications & Performance Characteristics |
Recommended Operating Temperature |
77°F (25°C) |
Float Charging Voltage |
2.23 to 2.27 volts per cell average at 77°F (25°C) |
Maximum Charging Current |
5% of the nominal C100 Amp hour rating at ambient temperature of 77°F (25°C) |
Self-Discharge |
0.5 to 1.0% per week maximum at 77°F (25°C) |
Specific Gravity |
1.310 |
Electrolyte |
|
Construction Details |
Positive Plate |
Lead calcium tin grid alloy
|
Negative Plate |
|
Container |
|
Cell Cover |
|
Separator |
|
|
Electrolyte
|
Sulfuric Acid |
Safety Valve |
3.5 - 9 psi opening pressure, self-resealing
|
Terminal Material |
|
Certifications & Safety Compliances
- Flame retardant container and cover (UL94 V-0); 28% L.O.I. polypropylene in standard; non-flame retardant is optional
- Absolyte AGP is seismic qualified to 1997 UBC, 2005 IEEE-693, and 2018 IBC/2016 CBC
- UL Recognized Component, ISO 9001:2015, Designed to meet Telcordia GR-4228
- NEBS Level 3 Certified in certain configurations
Options & Accessories
- Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.
