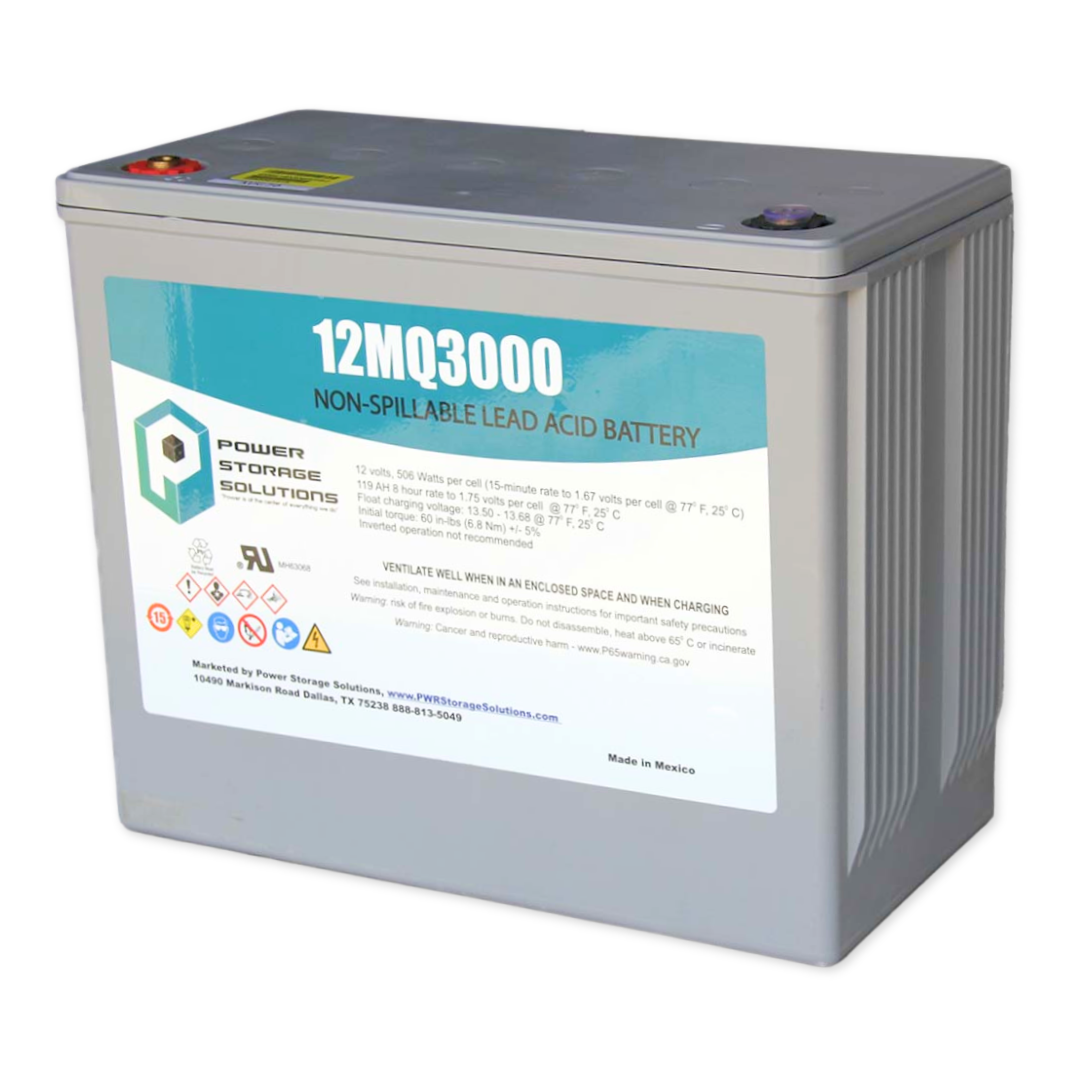

POWER STORAGE SOLUTIONS 12MQ3000 BATTERIES
The 12MQ3000 High-Rate VRLA Line is the industry standard for UPS Applications. They provide a long history of performance with industry setting high current rates over 5 to 15 minute rates. They are manufactured in North American ISO 9001:2008 registered production facilities, they have a 4-year warranty and are rated at 100% capacity at initial discharge. We maintain the batteries in a climate controlled environment, then charge and test each unit prior to shipment.
The MQ-4 terminal battery range of Valve Regulated Lead Acid (VRLA) batteries has been designed to offer superior solutions for the Information Technology (IT) and Power Supply (UPS) markets. PWRSS MQ-4 top terminal batteries are the ideal source of power to protect vital systems. Power Supply (UPS) markets. PWRSS MQ-4 top terminal batteries are the ideal source of power to protect vital systems.
PWRSS MQ-4 top terminal batteries incorporate select design features that maximize reliability while ensuring superior performance and an excellent service life.
Gas recombination technology for VRLA batteries has completely changed the concept of standby power. The minimal level of gas evolution allows battery installation in cabinets or on stands, in offices or near main equipment, maximizing space utilization and reducing storage and maintenance costs. PWRSS MQ-4 top terminal batteries deliver superior performance.
PWRSS 12MQ3000 FEATURES AND BENEFITS
• Flame retardant case and cover(UL94) to meet UL1778
• Self-resealing, flame-arresting vents
• Battery containers and covers are hermetically sealed to provide leak resistance over the life of the product
• Absorbed Glass Mat (AGM) separators – the electrolyte is completely absorbed into the separator
• High performance brass threaded receptacle, bolt terminal or faston terminals
• Increased energy density
• Computer optimized electrochemistry for increased power up to the 15 minute rate to1.67 Volts Per Cell (VPC)
• 100% initial battery capacity
• Classified as non-spillable
12MQ3000 Specifications
- Voltage: 12 volt
- Amp Hour:94 AH
- Terminal Type: Threaded Receptacle
- Normal operating temperature range -22F/-30C to 122F/50C
- Float charging voltage 2.25 – 2.28 Volts per cell at 77F/25C
- Charging current – can be safely recharged at high current rates
- Flame retardant case and cover meet UL 1778
12MQ3000 Construction
- Brass insert with threaded receptacle conductivity and ease of installation.
- Compression grommet designed for long life.
- Self-resealing, flame-arresting vents and low pressure non-return valve prevents ingress of atmospheric oxygen.
- Rugged high performance positive plates designed to resist corrosion and prolong active life.
- Balanced negative plates ensure optimum recombination efficiency.
- Thick-wall plastic containers, highly resistant to shock and vibration. Flame retardant material is the standard offering.
- Low resistance microporous Absorbed Glass Mat(AGM) separator. The electrolyte is absorbed within this material.
12MQ3000 Installation and Operation
- Normal operating temperature range: -22°F (-30°C) to 122°F (50°C)
- Float charging voltage 2.25-2.28 Volts per cell at 77°F (25°C)
- PWRSS MQ-4 top terminal batteries can be safely recharged at high current rates.
- PWRSS MQ-4 top terminal batteries can be stored for up to six months at 77°F (25°C) before a freshening charge is required. At higher temperatures this time interval will be reduced.
- Torque specifications
M6 Receptacle - 60 in-lbs (6.8 Nm) ± 5%
Power Storage Solutions Installation and Service for 12MQ3000
We understand that data centers are heavily reliant on batteries for backup power. We also understand that batteries must be redundant and if only one battery in your UPS configuration is not performing; it compromises your overall backup power. Our experience and our focus is to know the batteries and their implication for your operation. To determine the perfect solution, we will partner with you, analyze your critical power needs and construct the backup power solution that will perform as designed.
We can remove and recycle your old battery system then install, properly set up and test your new system. We have been installing stationary batteries for over 20 years. We have the experience, equipment and capabilities to safely perform this type of work.
Routine maintenance ensures your UPS equipment stays reliable, improving your UPS’s overall performance and extending their useful life. Service plans allow customers to be proactive; providing opportunity to detect potential points of failure preventing expensive problems.
