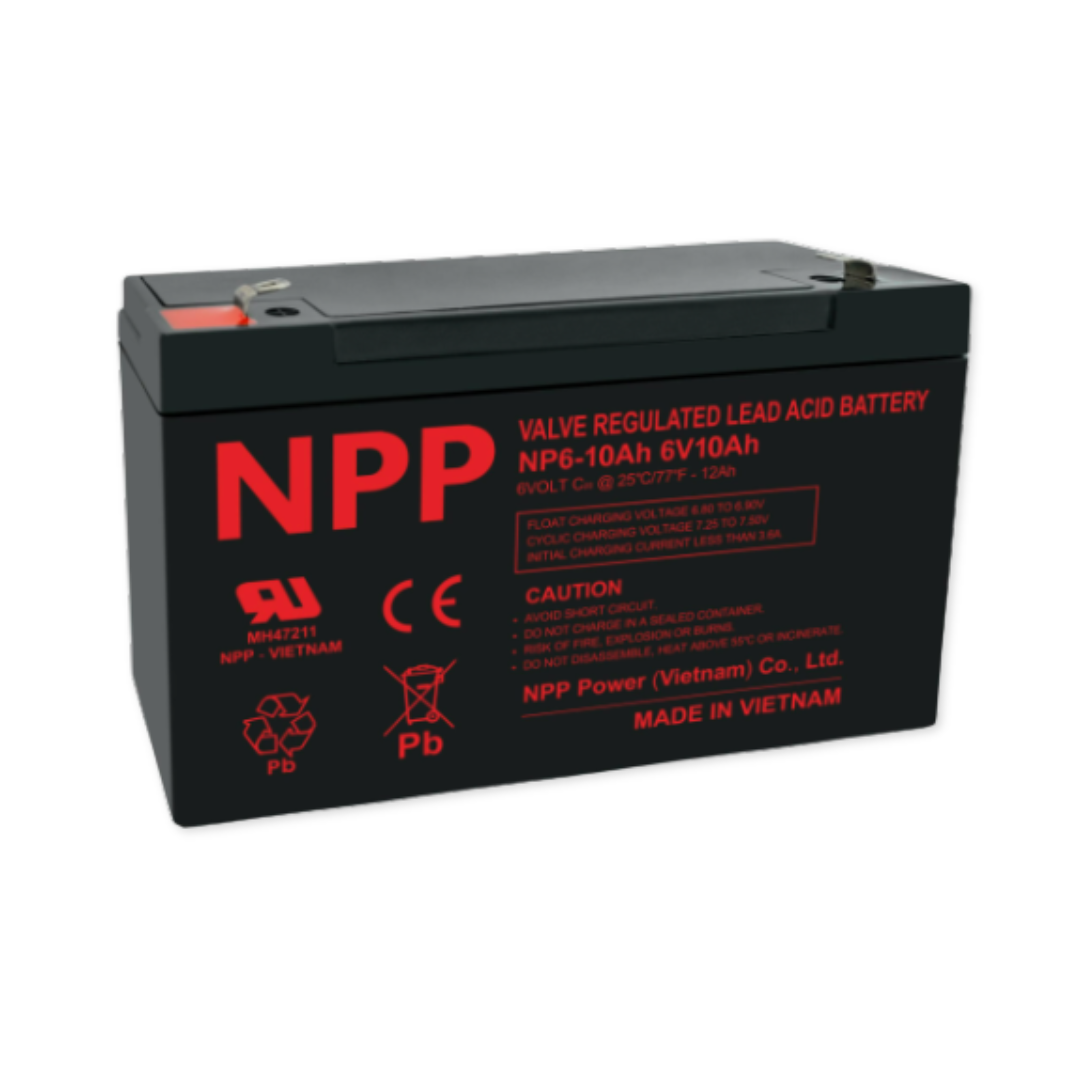

NPPower NP General Purpose Series 6V 10Ah @ 8 Hr Rate 1.300 SPG ABS-FR AGM VRLA Battery
SKU: NP6-10AH

NPPower NP General Purpose Series 6V 10Ah @ 8 Hr Rate 1.300 SPG ABS-FR AGM VRLA Battery

$13.85

ask a question

request quote

request service quote

Other models in this line

NP6-12AH

$15.62

Pre-order

NP6-180AH

$256.05

Pre-order

NP6-2.8AH

$10.23

Pre-order

NP6-200AH

$256.05

Pre-order

NP6-225AH

$282.45

Pre-order

NP6-4.5AH

$7.17

Pre-order

NP6-4AH

$6.43

Pre-order

NP6-5AH

$7.97

Pre-order

NP6-7AH

$10.25

Pre-order

NP6-8AH

$12.02

Pre-order

NP6-9AH

$0.00

Pre-order

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT
AGM (VRLA)
Indoor, Outdoor Controlled, Outdoor Uncontrolled
Title
Title

CAPACITY

0.5 Ah @ 20 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

Title

design life & warranty
5 Years Design Life
1 Year Full Warranty
Title

DIMENSIONS
Length: 5.94 in
Width: 1.97 in
Height: 3.94 in
Weight: 3.42 lb
Title

certifications & compliances
ISO 9001, ISO 14001, OHSAS 18001, IEC 60896-21/22, UL-Recognized Component, UL94 V-0
Title

industries
Transportation, General Purpose, Deep Cycle to Application

Specifications

view more in-depth details on applications & specifications
NPPower VRLA Battery Specifications Catalog.pdf
NPPower NP6-10Ah Specification Sheet.pdf
NPPower VRLA Battery Warranty Policy.pdf
NPPower VRLA Installation and Operation Manual.pdf
Title

safety

view more in-depth details on safety features & certifications
NPPower VRLA Safety Data Sheet.pdf

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation
Title

rentals & emergency

container rentals

battery rentals

emergency rentals & response
Title

installation

batteries

c0 / msc / cell site

power equipment
Title

microgrid design

feasibility assessment & budgeting

system design, install, & maintenance

operations & optimization
Title

technical

capacity & acceptance Testing

battery & equipment commissioning

maintenance
Title

recycling

batteries - remove, replace, recycle

approved transport & smelting

NPPower NP6-10AH AGM VRLA Battery - NP 6V General Purpose Series

NPPower’s General Purpose Series batteries are engineered using advanced Absorbent Glass Mat (AGM) technology, high-performance plates, and optimized electrolyte formulations. Designed to deliver exceptional reliability and value, this versatile range of valve-regulated lead-acid (VRLA) batteries is ideally suited for a wide array of general-purpose applications. With robust performance and long service life, NPPower General Purpose Series batteries are an excellent choice for use in solar and wind energy systems, backup power supplies, electric vehicles, mobility equipment such as wheelchairs and scooters, and other critical applications.

Key Features & Benefits

  • Excellent deep cycle design
  • Longer life in deep cycle applications
  • High power density
  • Excellent recovery from deep discharge
  • Wide working environment
  • Available with flame-retardant container and cover (UL94 V-0)

Applications

  • Solar Power
  • Wind Power
  • Power Supplies
  • Electric Vehicles
  • Wheelchairs and Scooters

NP6-10AH Construction Details

  • Available with flame-retardant container and cover (UL94 V-0)
  • AGM separators

Specification Details for NP6-10AH by NPPower

ATTRIBUTES DETAILS
General Info
Chemistry
AGM (VRLA)
Voltage
6V
Capacity
10AH @ 20 Hr Rate
Cells Per Unit
3
Dimensions
    - Length
    - Width
    - Height
    - Overall Height

5.94 inches / 151 mm
1.97 inches / 50 mm
3.70 inches / 94 mm
3.94 inches / 100 mm
Weight
3.42 lbs / 1.55 kgs
Container Type
ABS
Terminal Type
F1 - 0.187" Tab or F2 - 0.250" Tab
Terminal Material
Copper
Design Life
5 years
Warranty
1 Year Full
Electrical Specifications & Performance Characteristics
Float Charging Voltage
6.80 to 6.90V
Temperature compensation: -9mV/°C
Cyclic Charging Voltage
7.25 to 7.50V
Temperature compensation: -15mV/°C
Maximum Charging Current
3A
Maximum Discharge Current
150A (5 sec.)
Self Discharge
 3 Month: 91% remaining capacity
 6 Month: 82% remaining capacity
12 Month: 65% remaining capacity
Internal Resistance
12mΩ
Operating Temperature Ranges
Nominal: 77°F +/- 5°F (25°C +/- 3°C)
Charge: 14°F to 122°F (-10°C to 50°C)
Discharge: 5°F to 122 °F (-15°C to 50°C)
Storage: -4°F to 122°F (-20°C to 50°C)
Specific Gravity
1.300
Electrolyte
Sulfuric Acid
Construction Details
Positive Plate
Lead Dioxide
Negative Plate
Lead
Container
ABS
Cell Cover
ABS
Separator
AGM
Electrolyte
Sulfuric Acid
Safety Valve
Rubber
Terminal Material
Copper

Certifications & Safety Compliances

  • ISO 9001
  • ISO 14001
  • OHSAS 18001
  • IEC 60896-21/22
  • UL-Recognized Components
  • UL94 V-0

Options & Accessories

  • Available with flame-retardant container and cover (UL94 V-0)
  • Available with F1 - 0.187" Tab or F2 - 0.250" Tab terminals

Explore Other Models in the NPPower 6V General Purpose Series

  • NP6-2.8AH
  • NP6-4AH
  • NP6-4.5AH
  • NP6-5AH
  • NP6-7AH
  • NP6-8AH
  • NP6-9AH
  • NP6-12AH
  • NP6-180AH
  • NP6-200AH
  • NP6-225AH

Power Storage Solutions Installation & Services

As your full-service provider, Power Storage Solutions offers more than just products—we provide turnkey installation, system design support, removal and recycling services, and compliance-focused maintenance. Our expert technicians ensure every install is safe, efficient, and built to last. We are proud to offer the following services:

Visit our services page to explore how we can protect your business operations and optimize your critical backup power systems.
