NPPower HR High Rate 12V 200WPC @ 15 Min Rate 1.300 SPG ABS-FR AGM VRLA Battery
SKU: HR12200W-FR

NPPower HR High Rate 12V 200WPC @ 15 Min Rate 1.300 SPG ABS-FR AGM VRLA Battery

$162.95

ask a question

request quote

request service quote

Other models in this line

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT
AGM (VRLA)
Indoor, Outdoor Controlled, Outdoor Uncontrolled
Title
Title

CAPACITY

200 WPC @ 15 Min Rate to 1.67 VPC @ 77ºF (25ºC)

Title

design life & warranty
10 Years Design Life
2 Year Full Warranty
Title

DIMENSIONS
Length: 9.06 in
Width: 5.43 in
Height: 8.46 in
Weight: 38.1 lb
Title

certifications & compliances
ISO 9001, ISO 14001, OHSAS 18001, IEC 60896-21/22, UL-Recognized Component, UL94 V-0
Title

industries
Data Center & UPS, Telecom

Specifications

view more in-depth details on applications & specifications
NPPower VRLA Battery Terminal Information.pdf
NPPower VRLA Installation and Operation Manual.pdf
NPPower HR12200W-FR Specification Sheet.pdf
NPPower VRLA Battery Warranty Policy.pdf
NPPower VRLA Battery Specification Catalog.pdf
Title

safety

view more in-depth details on safety features & certifications
NPPower VRLA Safety Data Sheet.pdf

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation
Title

rentals & emergency

container rentals

battery rentals

emergency rentals & response
Title

installation

batteries

c0 / msc / cell site

power equipment
Title

microgrid design

feasibility assessment & budgeting

system design, install, & maintenance

operations & optimization
Title

technical

capacity & acceptance Testing

battery & equipment commissioning

maintenance
Title

recycling

batteries - remove, replace, recycle

approved transport & smelting

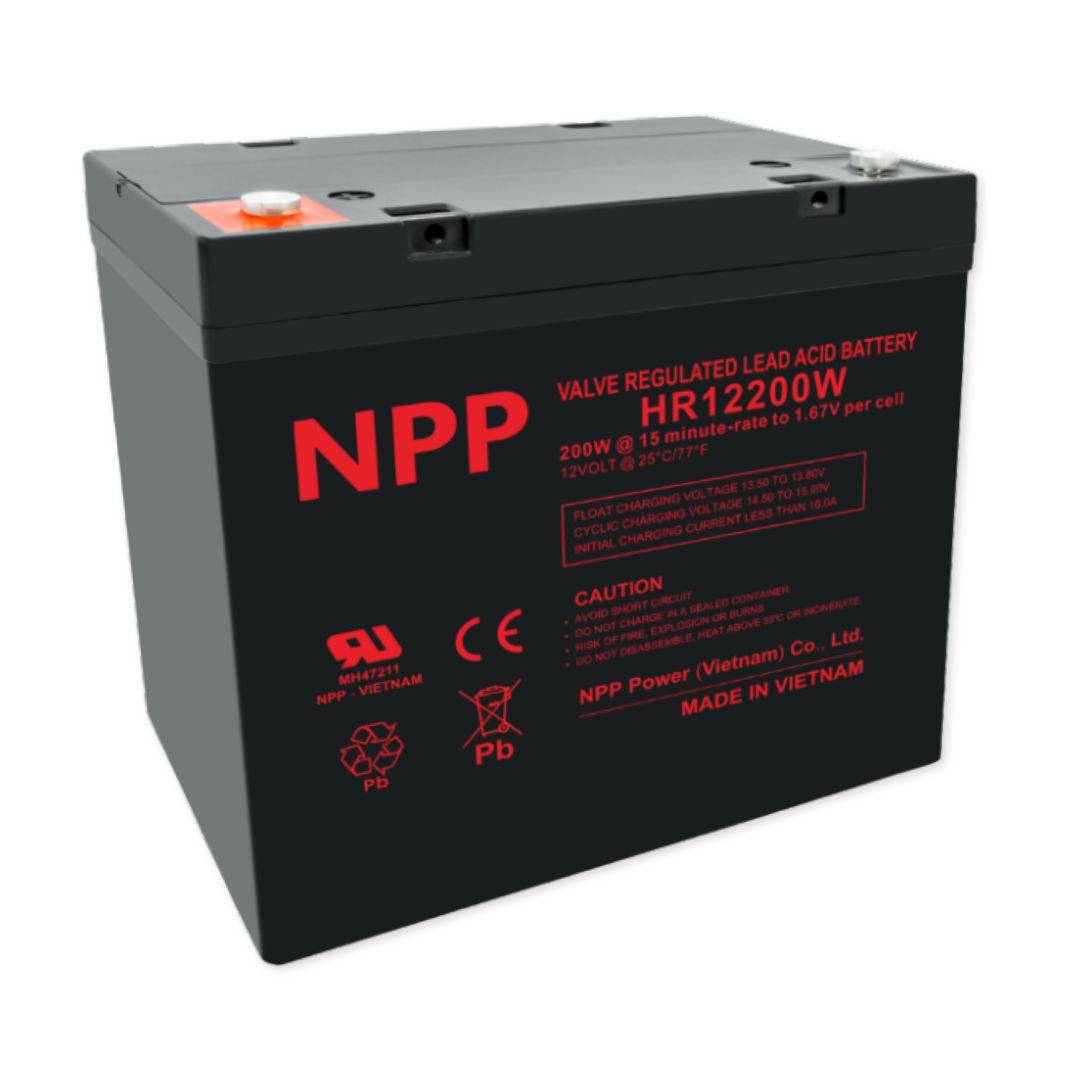

NPPower HR12200W-FR AGM VRLA Battery - High Rate Series

The NPPower High Rate (HR) Series batteries are engineered for critical applications that require exceptional power output. With high power density and low internal resistance, the NPPower High Rate VRLA batteries ensures reliable, high-performance energy delivery - ideal for UPS systems, data centers, telecommunications, and other high-demand applications. Additionally, the NPPower High Rate Series VRLA batteries are housed in flame-retardant containers to enhance safety and compliance with industry standards.

Key Features & Benefits

  • Operates at low internal pressure
  • Positive and Negative plates in lead-calcium-tin alloy
  • Superior energy density
  • Very high power output
  • Flame retardant container and cover (UL94 V-0)

Applications

  • Uninterrupted Power Systems (UPS)
  • High Power UPS Systems
  • Data Centers
  • Telecommunications
  • Electric Power Systems

HR12200W-FR Construction Details

  • Flame retardant container and cover (UL94 V-0)
  • AGM separator

Specification Details for HR12200W-FR by NPPower

ATTRIBUTES DETAILS
General Info
Chemistry
AGM (VRLA)
Voltage
12V
Capacity
200 WPC @ 15 Min Rate
Cells Per Unit
6 Cells
Dimensions
    - Length
    - Width
    - Height
    - Overall Height

9.06 inches / 230 mm
5.43 inches / 138 mm
8.31 inches / 211 mm
8.46 inches / 215 mm
Weight
38.1 lbs / 17.3 kgs
Container Type
ABS-FR
Terminal Type
Top - M6 Insert
Terminal Material
Copper
Design Life
10 years
Warranty
2 year full
Electrical Specifications & Performance Characteristics
Float Charging Voltage
13.50 to 13.80V
Temperature Compensation: -18mV/°C
Cyclic Charging Voltage
14.50 to 15.00V
Temperature Compensation: -30mV/°C
Maximum Charging Current
16.5A
Maximum Discharge Current
550A (5 sec.)
Self Discharge
 3 Month: 91% remaining capacity
 6 Month: 82% remaining capacity
12 Month: 65% remaining capacity
Internal Resistance
Approx. 6.5m Ω
Operating Temperature Ranges
Nominal: 77°F +/- 5°F (25°C +/- 3°C)
Charge: 14°F to 122°F (-10°C to 50°C)
Discharge: 5°F to 122°F (-15°C to 50°C)
Storage: -4°F to 122°F (-20°C to 50°C)
Specific Gravity
1.300
Electrolyte
Sulfuric Acid
Construction Details
Positive Plate
Lead Dioxide
Negative Plate
Lead
Container
ABS-FR
Cell Cover
ABS-FR
Separator
AGM
Electrolyte
Sulfuric Acid
Safety Valve
Rubber
Terminal Material
Copper

Certifications & Safety Compliances

  • ISO 9001
  • ISO 14001
  • OHSAS 18001
  • IEC 60896-21/22
  • UL-Recognized Components
  • UL94 V-0
