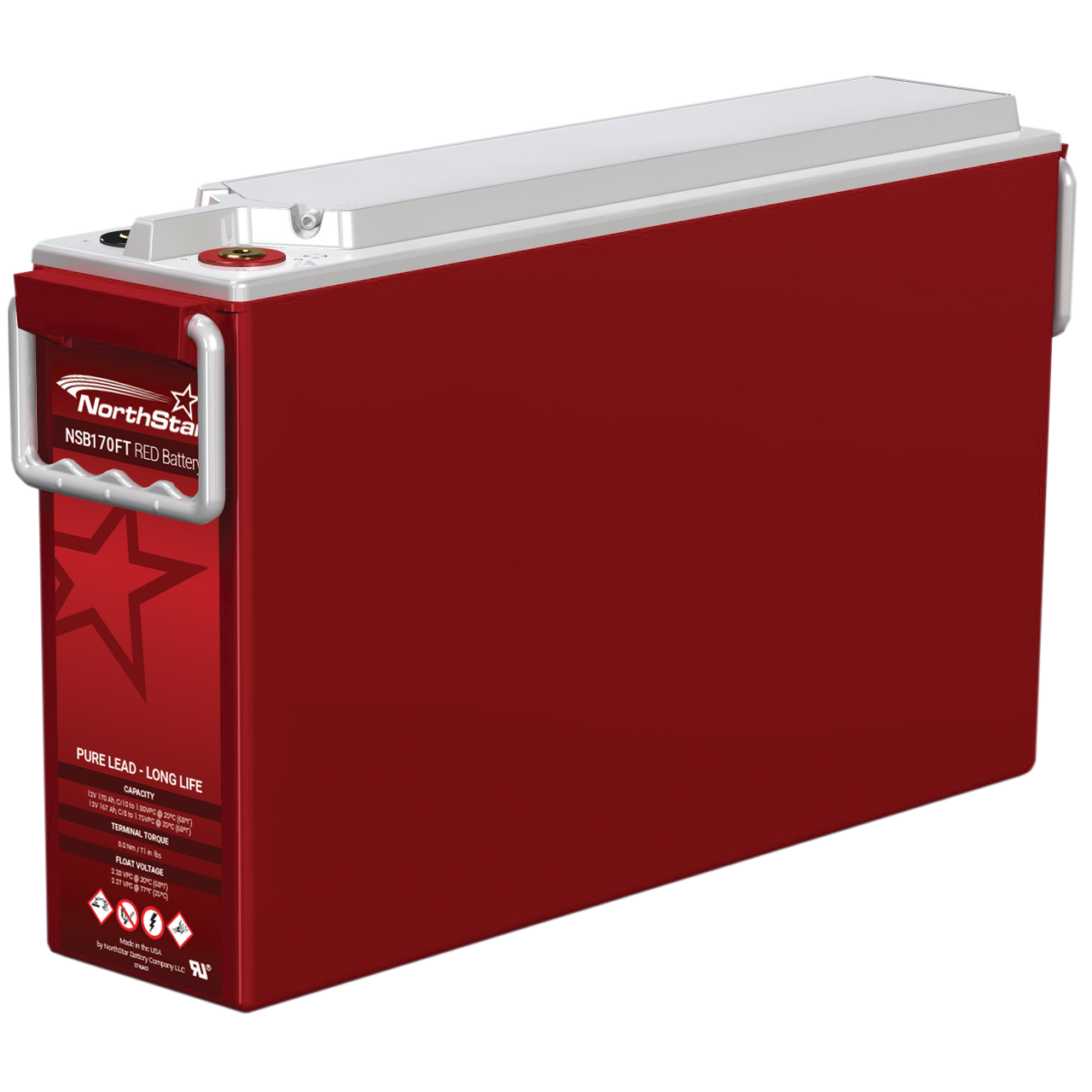

NorthStar NSB170FT RED ABS TPPL VRLA Battery - RED Series

NorthStar NSB RED Series batteries use advanced Thin Plate Pure Lead (TPPL) technology. These valve-regulated lead-acid (VRLA) batteries provide exceptional performance for telecommunications applications. They also offer superior power while taking up less space than traditional standby batteries. The NSB RED Series batteries are well-suited for a wide range of applications, including telecom backup, cable TV, emergency lighting, railway, and oil and gas.

Key Features & Benefits

• Pure lead electrochemistry greatly increases temp and corrosion resistance, while reducing component aging
• Thin plates deliver large surface area, high power density, and low resistance
• Design life 15+ years at 68°F (20°C)
• Operating temperature range -40°F to 149°F (-40°C to 65°C)
• Shelf life of up to 24 months
• Front terminal connections for fast and easy installation and maintenance

Applications

• CATV/Broadband
• Central Office
• Healthcare
• Off-grid Systems
• Outside Plant
• Renewable Energy
• Utilities and Switchgear
• Substations
• Traffic Systems
• Safety Lighting
• Rail

EnerSys NorthStar NSB170FT RED Construction Details

• UL94 V-0 flame retardant containers and lids
• State-of-the-art automated manufacturing ensures consistency and reliability
• Advanced 3 stage terminal design to ensure leak-free operation
• Brass terminals provide maximum performance
• High modulus Polyphenylene Oxide (PPO) plastic materials designed to withstand extended elevated operating temperatures and maintain high battery compression essential for reliable operation - non-halogenated, thermally sealed plastic casing - Flame retardant (UL94 V-0) and LOI of at least 28%

Specification Details for NSB170FT RED by NorthStar - An EnerSys Company

Certifications & Safety Compliances

• Approved as non-hazardous cargo for ground, sea, and air transport - DOT 49 CFR 173.159(d), (i), and (iii)
• Telcordia GR-4228 Level III
• NEBS GR-63
• International IEC 60896-21/22
• UL-Recognized Component
• UL94 V-0
• More information on UL Safety Standards

Options & Accessories

• Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.

Explore Other Models in the NorthStar HT Red Series Batteries

• NSB100FT HT RED
• NSB155FT HT RED

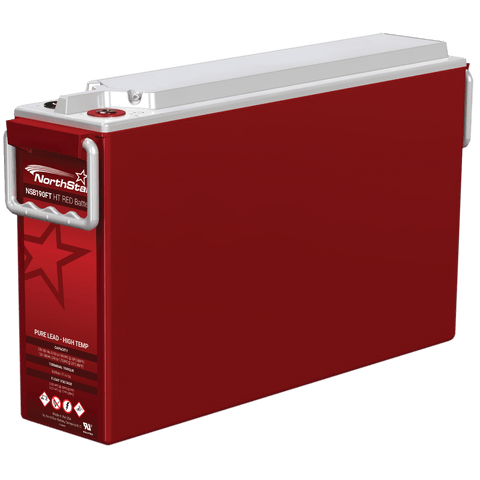

• NSB190FT HT RED
• NSB210FT HT RED
• For more information on this product line, visit the EnerSys website.
