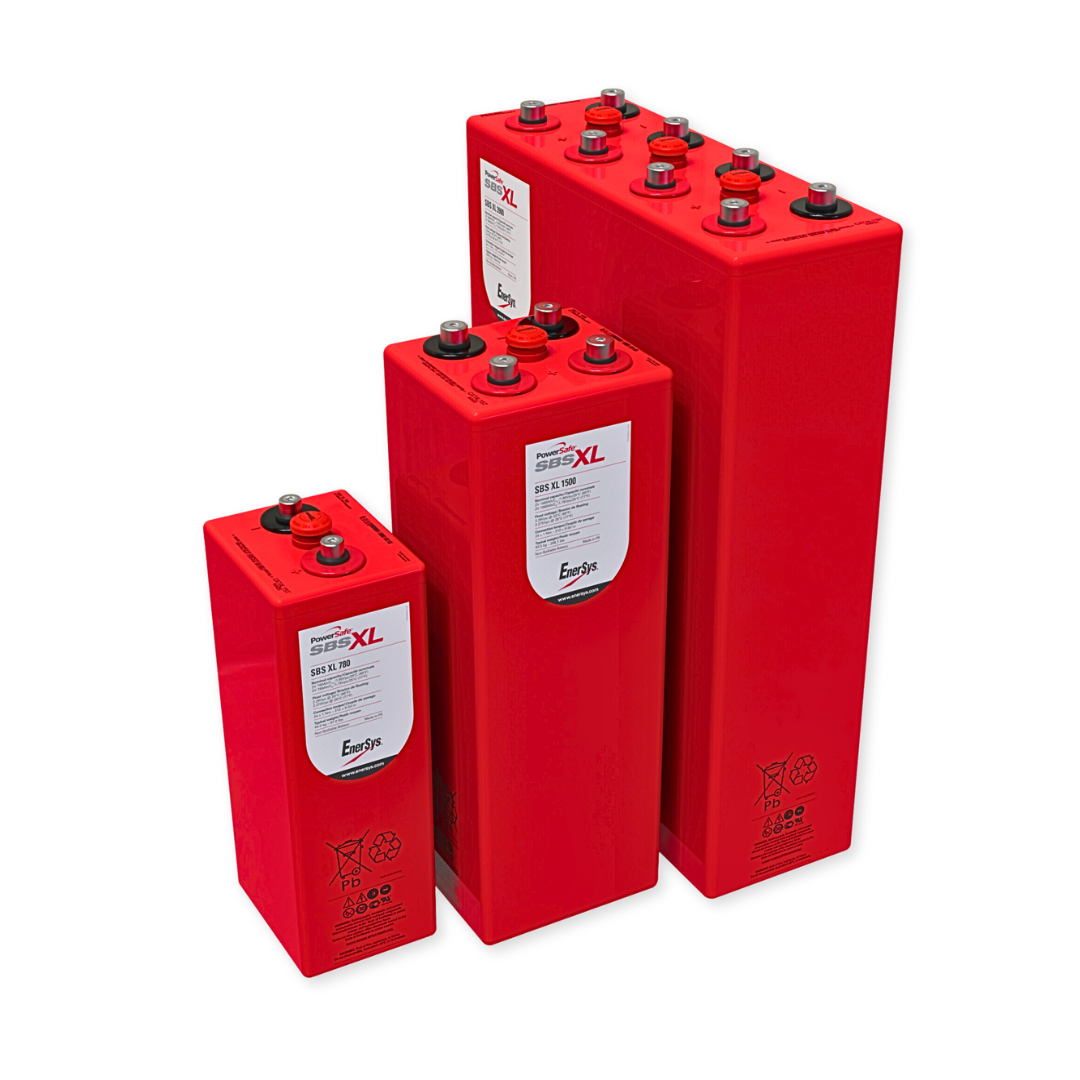

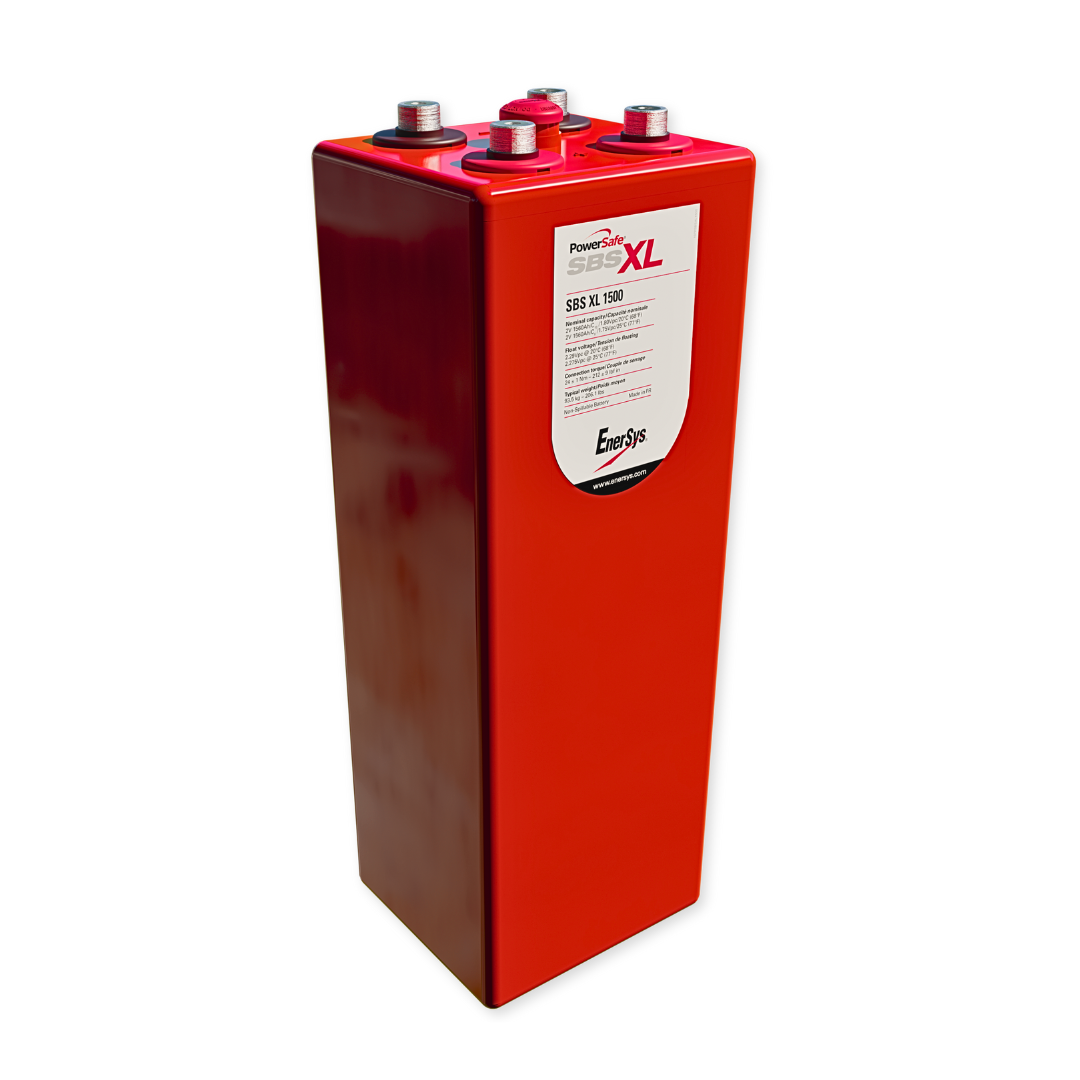

EnerSys PowerSafe SBS XL 1500 TPPL VRLA Battery - C&D SBS XL 2V Series
EnerSys PowerSafe SBS XL 2V Series batteries are DIN-sized, valve-regulated lead-acid single cells which are engineered for exceptional performance and long service life in stable grid float applications, even at elevated operating temperatures. By combining thin plate pure lead (TPPL0 technology with catalyst integration, PowerSafe SBS XL batteries offer extended life, reducing the need for replacements over the lifespan of power infrastructure. This results in a market-leading, low total cost of ownership. The SBS XL 2V Series is ideal for use in Telecommunications, Central Office, Utilities and Switchgear, Substations, and Uninterruptible Power Supply (UPS) applications.
Key Features & Benefits
- Pure lead technology offers a longer life in operation
- PowerSafe SBS XL 2V DIN-sized cells are designed for operation in stable grid float applications
- 20-year design life
- Wide operating temperatures range from -40°F to 122°F (-40°C to 50°C)
- Batteries can be installed in vertical or horizontal orientation and are designed for installation in cabinets or on stands
- 24-month storage life at 68°F (20°C), 12-month storage life at 86°F (50°C)
- Low maintenance: no water addition required
Applications
- Telecommunications
- Data Centers
- Uninterruptible Power Supply (UPS)
- CATV/Broadband
- Central Office
- Utilities and Switchgear
- Substations

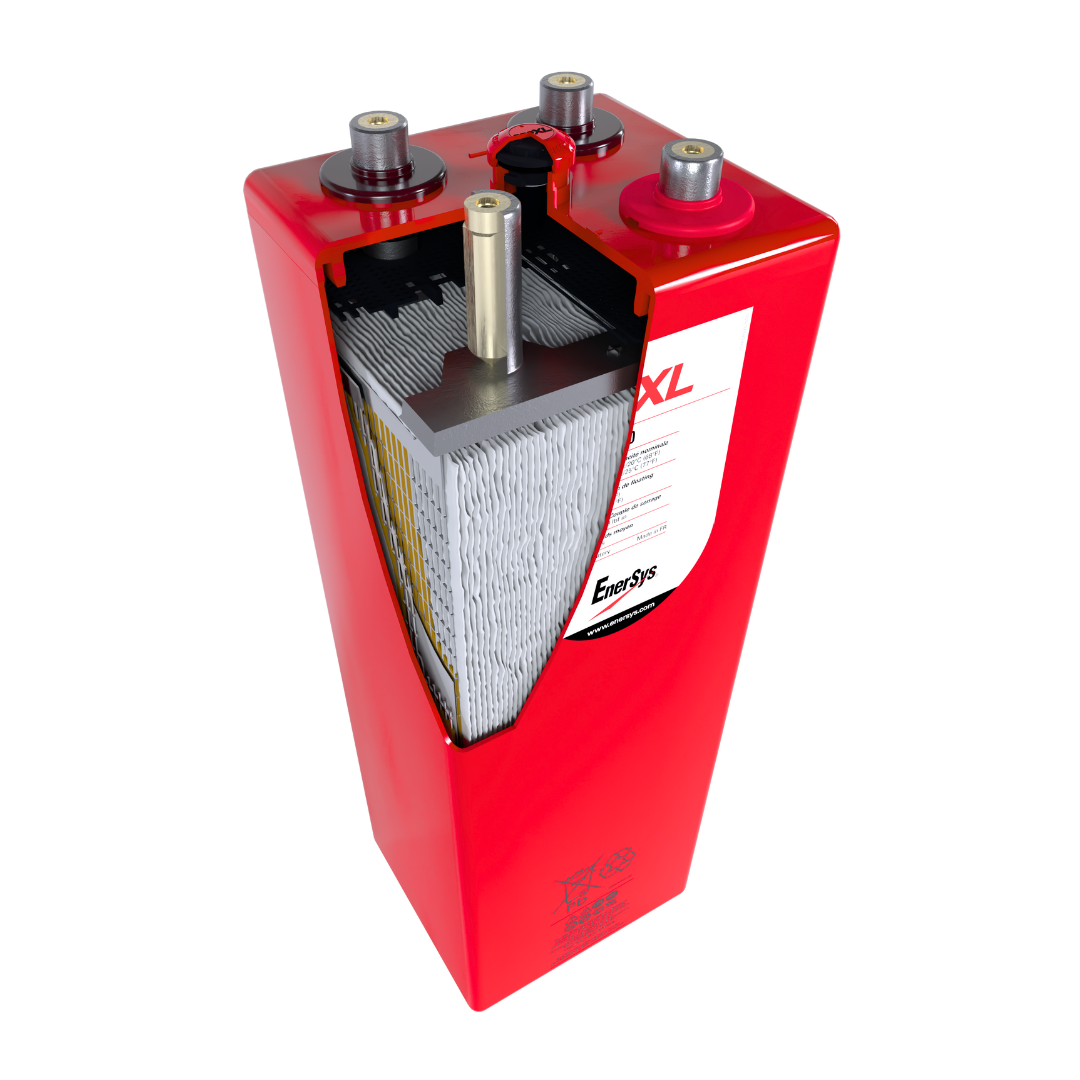

EnerSys PowerSafe SBS XL 1500 Construction Details
- Proven This Plate Pure Lead (TPPL) technology optimized for long float service life
- Negative plates provide perfect balance with positive plates to ensure optimum recombination efficiency
- Low resistance microporous glass fiber mat separator with high absorption and stability
- Containers and covers have UL94 V-0 rated flame retardant ABS material, highly resistant to elevated temperatures, shocks, and vibrations
- High grade dilute sulfuric acid is fully absorbed into the separator for extended float life at high temperatures and to prevent spillage in case of accidental damage
- Proven, high integrity dual-seal terminal design to prevent leakage over the product life
- Self-regulating pressure relief valves prevent ingress of atmospheric oxygen
- Catalyst technology reduces water loss for longer operational float life
- Integral flame arrestors offer increased operational safety
Specification Details for SBS XL 1500 by EnerSys
| ATTRIBUTES |
DETAILS |
General Info |
Chemistry |
TPPL (VRLA) |
Voltage |
2V |
Capacity |
1560 Ah @ 8 Hr Rate |
Cells Per Unit |
|
|
Dimensions
- Overall Length
- Overall Width
- Overall Height
|
8.27 inches / 210.00 mm
9.20 inches / 233.00 mm
27.40 inches / 695.00 mm
|
Weight |
206.10 lbs / 93.50 kgs |
Container Type |
ABS-FR |
Terminal Type |
|
Design Life |
|
Warranty |
7 Year Full, 5 Year Pro Rata
|
Electrical Specifications & Performance Characteristics |
Internal Resistance |
Approx. 0.12 mΩ |
Operating Temperature Ranges |
Nominal: 77°F (25°C)
Recommended Operating Temperature: 68°F to 77°F (20°C to 25°C)
Operating Temperature Limits: -40°F to 122°F (-40°C to 50°C)
|
Storage |
A refreshing charge is needed after being stored for:
24 months at 68°F (20°C)
17 months at 77°F (25°C)
12 months at 86°F (30°C)
|
|
Electrolyte |
|
Specific Gravity |
1.300 |
|
Construction Details |
Container Material |
UL94 V-0 rated flame retardant ABS material
|
Cover Material |
UL94 V-0 rated flame retardant ABS material |
Safety Vent System |
|
Separators |
Low resistance microporous glass fiber mat separator with high absorption and stability
|
Certifications & Safety Compliances
- Classified as non-spillable battery and approved as non-hazardous cargo for land, se, and air transportation in accordance with the requirements of ADR / RID, IMDG, and IATA respectively
- IEC 60896-21/22
- ISO 9001
- ISO 14001
- ISO 45001
- UL94 V-0 Container and Cover
Options & Accessories
- Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.
