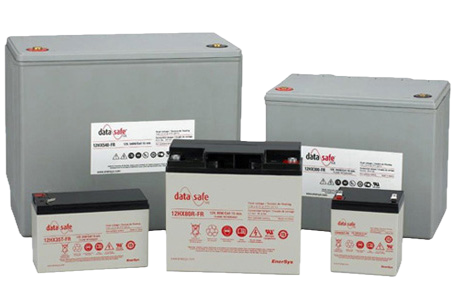

ENERSYS DATASAFE® 12HX600T-FR BATTERIES
Power Storage Solutions is a premier platinum stocking Distributor for the DataSafe 12HX600 batteries. We maintain the batteries in a climate controlled environment, then charge and test each unit prior to shipment. The DataSafe® HX top terminal battery range of Valve Regulated Lead Acid (VRLA) batteries has been designed to offer superior solutions for the Information Technology (IT) and Uninterruptible Power Supply (UPS) markets. DataSafe HX top terminal batteries are the ideal source of power to protect vital systems.
DataSafe HX top terminal batteries incorporate select design features that maximize reliability while ensuring superior performance and an excellent service life.
Gas recombination technology for VRLA batteries has completely changed the concept of standby power. The minimal level of gas evolution allows battery installation in cabinets or on stands, in offices or near main equipment, maximizing space utilization and reducing storage and maintenance costs. DataSafe HX top terminal batteries deliver superior performance.
ENERSYS DATASAFE® 12HX600T-FR FEATURES AND BENEFITS
• Specifically designed for high-rate discharge applications
• Low energy consumption
• Flame retardant ABS plastic case and cover (UL94 V-0)
• Self regulating pressure relief valves
• Separators in low resistance microporous glass fiber. The electrolyte is absorbed within this material, preventing acid leakage in case of accidental damage.
• High performance positive plates designed for long life and efficient recharge
• Negative plates provide perfect balance with the positive plates to ensure optimum recombination efficiency
• 10-12 year design life
• Low Total Cost of Ownership (TCO)
12HX600T-FR Specifications
- Voltage: 12 volt
- Amp Hour: 129 AH
- Watts per Cell: 600 at 15 minute rate to 1.67 VPC
- Terminal Type: Threaded Receptacle
- Normal operating temperature range -4F/-20C to 113F/45C
- Float charging voltage 2.27 Volts per cell at 77F/25C
- Flame retardant ABS case and cover
12HX600T-FR Construction
- High performance positive plates designed for long life and efficient discharge
- Negative plates provide balance with the positive plates to ensure optimum recombination efficiency
- Separators in low resistance microporous glass fiber. The electrolyte is absorbed within this material, preventing acid leakage in case of accidental damage.
- Electrolyte is a high grade dilute sulphuric acid absorbed into separator material
- Containers and lids are made of UL94 V-0 flame-retardant ABS plastic
- High integrity, dual pillar seal design to ensure leak-free operation
- Self regulating pressure relief valves - prevent ingress of atmospheric oxygen
12HX600T-FR Installation and Operation
- Batteries are designed for installation in cabinets or on stands, close to the point of use. A separate battery room is not necessary.
- Normal operating temperature range: -4°F (-20°C) to 113°F (45°C)
- Float charging voltage 2.27 Volts per cell at 77°F (25°C)
- Reduced maintenance: no water addition needed
- A strong, detachable handle, designed to provide maximum flexibility during installation, is supplied with every pallet/case.
Power Storage Solutions Installation and Service for 12HX600T-FR
We understand that data centers are heavily reliant on batteries for backup power. We also understand that batteries must be redundant and if only one battery in your UPS configuration is not performing; it compromises your overall backup power. Our experience and our focus is to know the batteries and their implication for your operation. To determine the perfect solution, we will partner with you, analyze your critical power needs and construct the backup power solution that will perform as designed.
We can remove and recycle your old battery system then install, properly set up and test your new system. We have been installing stationary batteries for over 20 years. We have the experience, equipment and capabilities to safely perform this type of work.
Routine maintenance ensures your UPS equipment stays reliable, improving your UPS’s overall performance and extending their useful life. Service plans allow customers to be proactive; providing opportunity to detect potential points of failure preventing expensive problems.
For More Information from EnerSys Website: EnerSys DataSafe
