Domestic Power Vega Series 120 Amp 2RU Rear Wire Small Site DC Power System
SKU: VSYS-2RU-206-D

Domestic Power Vega Series 120 Amp 2RU Rear Wire Small Site DC Power System

$1,170.31

ask a question

request quote

request service quote

Other models in this line

VSYS-1RU-203-C

$701.56

Pre-order

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT

Title
Title

CAPACITY

Title

design life & warranty

10 Years Design Life
2 Year Full Warranty
Title

DIMENSIONS

Length: 11 in
Width: 19 in
Height: 3.5 in
Weight: 35.2 lb
Title

certifications & compliances

EN 60950-1, EN 61000-6-1, EN 61000-6-2, EN 61000-6-3, EN 61000-6-4, ETSI EN 300 019-2-1 Class 1.2, ETSI EN 300 019-2-2 Class 2.3, ETSI EN 300 019-2-3 Class 3.2, ETSI EN 300 386 V.1.4.1, UL 60950-1
Title

industries

Telecom

Specifications

view more in-depth details on applications & specifications

Domestic Power Product Warranty.pdf
Domestic Power Vega Series Product Brochure.pdf
Domestic Power Vega Series 120 Amp 2U Rear Wire Small Site DC Power System Specification Sheet.pdf
Domestic Power Product Warranty.pdf
Domestic Power Vega Series Product Brochure.pdf
Domestic Power Vega Series 120 Amp 2U Rear Wire Small Site DC Power System Specification Sheet.pdf
Title

safety

view more in-depth details on safety features & certifications

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation

Title

rentals & emergency

containerized rentals

temporary battery strings & equipment rentals

disaster recovery & emergency response
Title

installation

batteries & ups systems

co / msc / cell site

grounding/pages/technical-grounding-services

Title

microgrid design

scalable battery energy storage systems (bess)

feasibility assessment & budgeting

system design, install, & maintenance
Title

technical

capacity & acceptance testing

dc power engineering & training

preventative, contract, & scheduled maintenance programs

Title

Removal, Upgrades, & recycling

battery removal, replacement, & recycling

removal & cable mining

upgrades & transition work

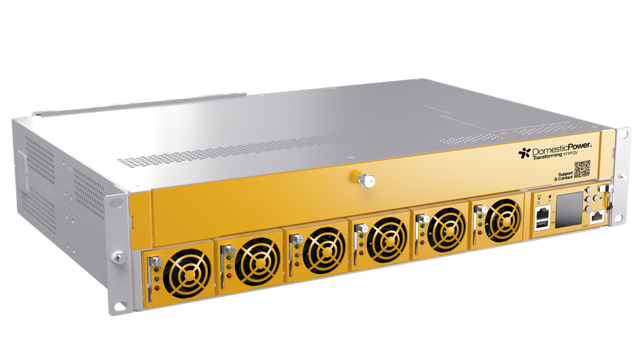

Domestic Power Vega Series VSYS-2RU-206-D 120 Amp 2RU Rear Wire Small Site DC Power System

The Domestic Power Vega Series 120 Amp 2RU Rear Wire Small Site DC Power System delivers reliable, modular power for demanding telecommunications, fiber, utility, petrochemical, and industrial applications. Built for efficiency, the VSYS-2RU-206-D features hot-swappable rectifiers, intelligent system control, and secure full remote management. With advanced battery monitoring and alarm systems, and a compact 2RU rear-wire design, it provides scalable and dependable DC power for mission-critical networks.

Key Features & Benefits

  • 120 Amp, 2RU, 19" Rear Wire Small Site DC Power System
  • Dual Bullet-Style Battery Breakers Support Multiple Battery Strings
  • Integrated Load and Battery Distribution with Multiple Breaker and Fuse Options
  • Hot Swappable, Redundant Rectifiers
  • Powerful Controller with High Resolution Local Display for Easy Operation
  • Full Remote Management via System Controller
  • Secure Remote Monitoring, Alarming, and Management Features

Applications

  • CATV / Broadband
  • Telecommunications
  • Network Closet
  • Fiber Optic Equipment
  • Wireless Access Equipment
  • Outdoor Cabinets
  • Shared Communications Infrastructure
  • Utility & Industrial Power

Domestic Power VSYS-2RU-206-D Construction Details

  • Compact 2RU, 19" Rack Mount Design
  • Rear-Wired AC and DC Connections
  • 4 Bullet-Style Load Breakers
  • 20 GMT Style Fuse Positions
  • Flame Retardant Construction

Specification Details for VSYS-2RU-206-D by Domestic Power

ATTRIBUTES DETAILS
AC Input
Voltage
85 - 300VAC
Input Current
< 7.5A (per 1000W rectifier)
Frequency
45 - 66Hz
THDi
< 5%
Output
Rated Output Voltage
-54V
Float Voltage
-54V
Boost Voltage
-56V
Output Current
≤ 55.5A @ 54V
Voltage Regulation
< 0.6%
Current Sharing
< 5%
Efficiency
≥ typical 95%
Ripple & Noise
≤ 200mV peak to peak
Psophometric Noise
≤ 2mV
Monitoring
Communication
Remote access via WEB and SNMP
Dry Contact
4 relay outputs, NO+COM
Digital Input
4*DI
Display
LCD
Temperature Sensor Interface
2
Physical & Environmental
Operating Temperature
-40ºC ~ 75ºC (-104ºF to +167ºF)
Storage Temperature
-40ºC ~ 85ºC (-104ºF to +185ºF)
Humidity
Operating: ≤ 95% (non-condensing)
Storage: ≤ 99% (non-condensing)
Dimensions
    - Length
    - Width
    - Height
    - Overall Height

11 inches / 279.4 mm
19 inches / 482.6 mm
3.5 inches / 88.9 mm
3.5 inches / 88.9 mm
Weight
≤ 35.2 lbs / 15.96 kgs (no rectifier)
Options
DC Distribution
Fuses for Load: 15A*20
MCBs for Battery: 60A*2
MCBs fo Load: 60A*2
Front Operation & Rear Connection
AC Distribution
Terminal blocks used for AC Input
Rear Connection
Output Protection
Short-circuit protection
Overload protection

Certifications & Safety Compliances

  • UL 60950-1
  • EN 60950-1
  • EN 61000-6-1
  • EN 61000-6-2
  • EN 61000-6-3
  • EN 61000-6-4
  • ETSI EN 300 019-2-1 Class 1.2
  • ETSI EN 300 019-2-2 Class 2.3
  • ETSI EN 300 019-2-3 Class 3.2
  • ETSI EN 300 386 V.1.4.1

Options & Accessories

  • DC Distribution: Fuses for Load: 15A*20; MCBs for Battery: 60A*2; MCBs for Load: 60A*2; Front Operation & Rear Connection
  • AC Distribution: Terminal blocks will be used for AC input. Rear connection.
  • Output Protection: Short-circuit protection, Overload protection
