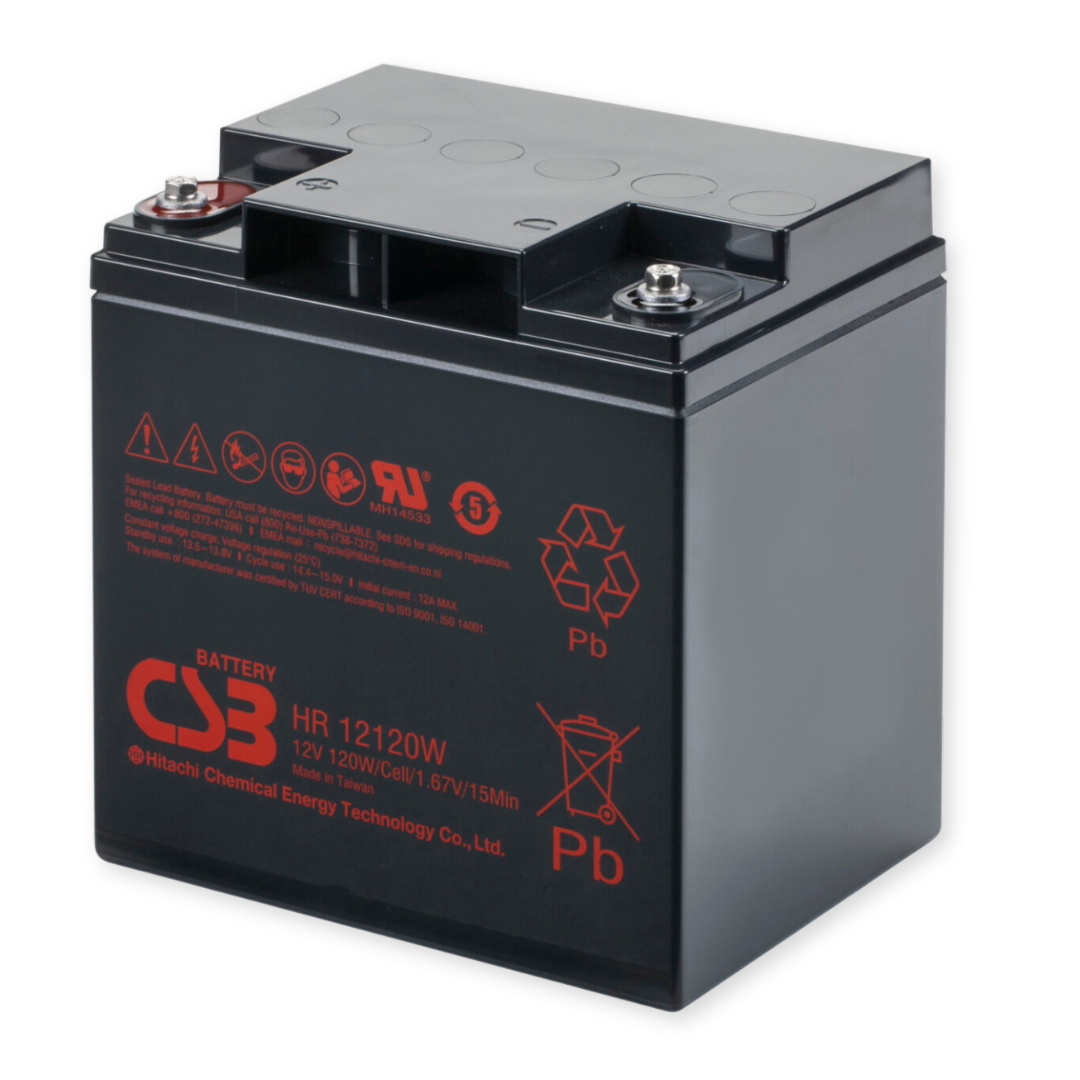

CSB Battery High Rate 12V 120WPC @ 15 Min Rate Flame Retardant Top Recessed Terminal AGM VRLA Battery
SKU: HR12120WFR

CSB Battery High Rate 12V 120WPC @ 15 Min Rate Flame Retardant Top Recessed Terminal AGM VRLA Battery

$117.22

ask a question

request quote

request service quote

Other models in this line

HR12120W

$117.22

Pre-order

HR1221WF2

$26.66

Pre-order

HR1221WF2FR

$28.00

Pre-order

HR1224WF1

$29.37

Pre-order

HR1224WF2

$29.37

Pre-order

HR1224WF2F1

$29.37

Pre-order

HR1227WF2

$29.46

Pre-order

HR1234WF1

$30.51

Pre-order

HR1234WF2

$30.51

Pre-order

HR1234WF2FR

$32.91

Pre-order

HR1251WF2

$50.12

Pre-order

HR1290W

$82.14

Pre-order

HR1290WFR

$82.14

Pre-order

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT

AGM (VRLA)
Title
Title

CAPACITY

123 WPC @ 15 Min Rate to 1.67 VPC @ 77ºF (25ºC)
Title

design life & warranty

5 Years Design Life
1 Year Full Warranty
Title

DIMENSIONS

Length: 6.54 in
Width: 4.92 in
Height: 6.89 in
Weight: 20.48 lb
Title

certifications & compliances

49 CFR 171-189, IEC 61056-1/2:2012, UL1989, UL-Recognized Component, IATA/ICAO Special Provisions A67
Title

industries

Data Center & UPS

Specifications

view more in-depth details on applications & specifications

CSB Battery High Rate Discharge Tables.pdf
CSB Battery High Rate Installation Operation Manual.pdf
CSB Battery HR12120W Specification Sheet.pdf
CSB Battery Warranty.pdf
CSB Battery High Rate Installation Operation Manual.pdf
CSB Battery HR12120W Specification Sheet.pdf
CSB Battery Warranty.pdf
Title

safety

view more in-depth details on safety features & certifications

CSB Battery High Rate Safety Data Sheet.pdf

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation

Title

rentals & emergency

containerized rentals

temporary battery strings & equipment rentals

disaster recovery & emergency response
Title

installation

batteries & ups systems

co / msc / cell site

grounding/pages/technical-grounding-services

Title

microgrid design

scalable battery energy storage systems (bess)

feasibility assessment & budgeting

system design, install, & maintenance
Title

technical

capacity & acceptance testing

dc power engineering & training

preventative, contract, & scheduled maintenance programs

Title

Removal, Upgrades, & recycling

battery removal, replacement, & recycling

removal & cable mining

upgrades & transition work

CSB HR12120WFR AGM VRLA Battery - HR Series

CSB's High Rate (HR) Series batteries are designed to deliver reliable backup power for smaller output applications such as personal and business power backup systems. CSB HR batteries are known for their high energy density, high-rate discharge capabilities, and efficient performance, making them suitable for a variety of applications which require bursts of power and effective recovery from deep discharges while ensuring long-lasting, dependable operation. CSB's HR Series batteries are able to be installed in multiple physical orientations without compromising performance or service life.

Key Features & Benefits

  • Designed for high-rate UPS, float service standby power applications
  • Design life of up to 5 years in standby service

Applications

  • Uninterruptible Power Supply (UPS)
  • Emergency Lighting
  • Security Lighting

CSB HR12120WFR Construction Details

  • Special proprietary formula utilizing 99.99% pure lead ingot in production for lead oxide, lead plate grids, and other lead components
  • Maintenance-free, Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99%
  • Valve-Regulated Lead Acid (VRLA) battery
  • Pure lead construction and proprietary elements

Specification Details for HR12120WFR by CSB Batteries

ATTRIBUTES DETAILS
General Info
Chemistry
AGM (VRLA)
Voltage
12V
Capacity
120WPC @ 15 Min Rate
Cells Per Unit
6 cells
Dimensions
    - Overall Length
    - Overall Width
    - Overall Height

6.54 inches / 166.00 mm
4.92 inches / 125.00 mm
6.89 inches / 175.00 mm
Weight
20.48 lbs / 10.20 kgs
Container Type
ABS (UL 94-HB)
Flame Retardant (94 V-0) available upon request
Terminal Type
Top M5 Insert
Terminal Material
Lead-electroplated pure copper
Design Life
Up to 5 Years in stand-by service at 77°F (25°C)
Warranty
1 Year Full
Electrical Specifications & Performance Characteristics
Float Charging Voltage
13.50 to 13.80 Vdc / battery at 77°F (25°C)
Equalizing Charging Voltage
14.40 to 15.00 Vdc / battery at 77°F (25°C)
Maximum Charging Current
12.00A
Maximum Discharge Current
225A
Internal Resistance
Approx. 8.2 mΩ
Operating Temperature Ranges
Nominal: 77°F (25°C)
Discharge: 5°F to 122°F (-15°C to 50°C)
Charge / Storage: 5°F to 104°F (-15°C to 40°C)
Self-Discharge
Less than 10% after 90 days;
Can be stored for up to 6 months at 77°F (25°C)
Fully recharging is required before usage, and charged sooner if stored at higher temperatures than 77°F (25°C)
Electrolyte
Sulfuric Acid
Construction Details
Container
ABS (UL 94-HB)
Flame Retardant (94 V-0) available upon request
Cell Cover
ABS
Separators
AGM
Electrolyte
Sulfuric Acid
Safety Valve
Rubber
Terminal Material
Lead-electroplated pure copper

Certifications & Safety Compliances

  • IEC 61056-1/2:2012
  • UL Recognized under UL 1989
  • Complies with IATA/ICAO Special Provision A67 for air transport, are classified per MG Amendment 27 as a non-hazardous material for water transport, and recognized by DOT as "Dry Charge" 49 CFR 171-189 for surface transport
  • UL Recognized Components

Options & Accessories

  • Contact a member of the Power Storage Solutions Sales Team for additional information on options and accessories.
