CSB Battery GP Series 6V 7.2Ah @ 20 Hr Rate Top Terminal F2 Tab AGM VRLA Battery
SKU: GP672F2

CSB Battery GP Series 6V 7.2Ah @ 20 Hr Rate Top Terminal F2 Tab AGM VRLA Battery

$14.37

ask a question

request quote

request service quote

Other models in this line

GP12120F2

$48.15

Pre-order

GP12170

$62.15

Pre-order

GP12170B1FR

$65.26

Pre-order

GP12260

$93.43

Pre-order

GP12260B1

$93.43

Pre-order

GP12260FR

$96.60

Pre-order

GP12340

$90.22

Pre-order

GP12340FR

$94.72

Pre-order

GP12400

$116.20

Pre-order

GP1245

$19.51

Pre-order

GP12650

$196.89

Pre-order

GP1272F1

$25.46

Pre-order

GP1272F2

$25.46

Pre-order

GP1272F2FR

$26.72

Pre-order

GP1272FR

$26.74

Pre-order

GP6120F1

$19.57

Pre-order

GP6120F2

$19.57

Pre-order

GP6120F2FR

$20.55

Pre-order

GP645

$10.72

Pre-order

GP672F1

$14.37

Pre-order

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT
AGM (VRLA)
Indoor, Outdoor Controlled
Title
Title

CAPACITY

8.4 Ah @ 20 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

0.88 A Constant Current @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

7.04 Ah @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

88.7 WPC @ 15 Min Rate to 1.67 VPC @ 77ºF (25ºC)

Title

design life & warranty
5 Years Design Life
1 Year Full Warranty
Title

DIMENSIONS
Length: 5.94 in
Width: 1.34 in
Height: 3.96 in
Weight: 2.68 lb
Title

certifications & compliances
IEC 61056-1/2:2012, UL1989, UL-Recognized Component, IATA/ICAO Special Provisions A67
Title

industries
General Purpose

Specifications

view more in-depth details on applications & specifications
Title

safety

view more in-depth details on safety features & certifications

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation
Title

rentals & emergency

container rentals

battery rentals

emergency rentals & response
Title

installation

batteries

c0 / msc / cell site

power equipment
Title

microgrid design

feasibility assessment & budgeting

system design, install, & maintenance

operations & optimization
Title

technical

capacity & acceptance Testing

battery & equipment commissioning

maintenance
Title

recycling

batteries - remove, replace, recycle

approved transport & smelting

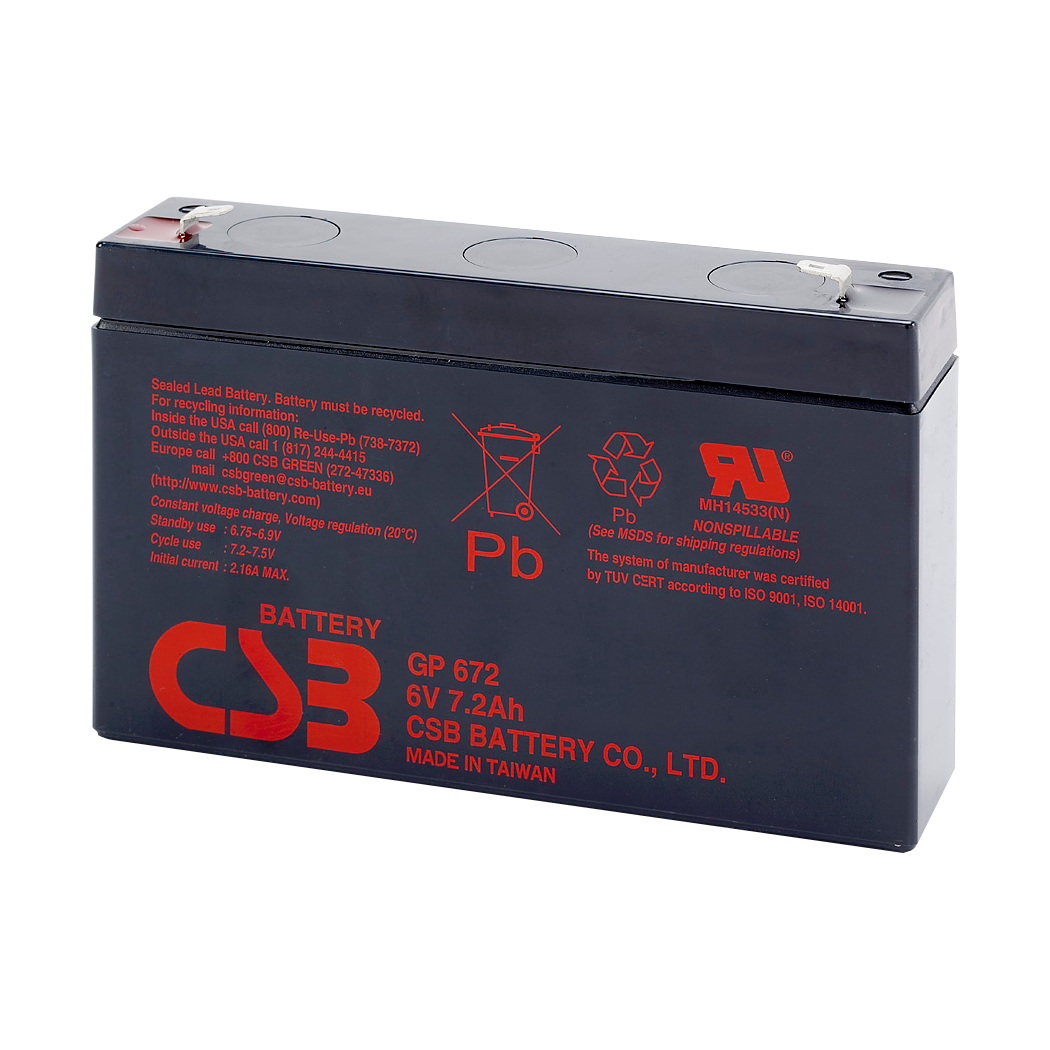

CSB GP672F2 AGM VRLA Battery - GP Series

CSB's General Purpose (GP) Series batteries deliver reliable, purpose-built energy storage solutions designed to meet a wide range of application needs. As the name suggests, the General Purpose (GP) Series is engineered for versatility, making it ideal for use in security systems, emergency lighting, medical equipment, and other essential applications. Built with a  focus on durability, safety, and energy efficiency, CSB's GP Series batteries are a dependable choice ensuring reliable, long-lasting, power delivery where consistent performance is critical.

Key Features & Benefits

  • GP Series batteries can be installed in multiple physical orientations without affecting service life
  • Design life of up to 5 years in standby service
  • Optional flame-retardant case

Applications

  • Security Lighting
  • Emergency Lighting
  • Medical Devices

CSB GP672F2 Construction Details

  • Valve-Regulated Lead Acid (VRLA) battery
  • Special proprietary formula utilizing 99.99% pure lead ingot in production for lead oxide, lead plate grids, and other lead components
  • Pure lead construction and proprietary applications
  • Designed for float service standby power applications
  • Optional flame-retardant case

Specification Details for GP675F2 by CSB Batteries

ATTRIBUTES DETAILS
General Info
Chemistry
AGM (VRLA)
Voltage
6V
Capacity
7.2 Ah @ 20 Hr Rate
Cells Per Unit
3 cells
Dimensions
    - Overall Length
    - Overall Width
    - Overall Height

5.94 inches / 151.00 mm
1.34 inches / 34.00 mm
3.96 inches / 100.70 mm
Weight
2.68 lbs / 1.22 kgs
Container Type
ABS (UL 94-HB)
Flame Retardant (94 V-0) available upon request
Terminal Type
Top F2 Terminal - Faston Tab 0.250"
Terminal Material
Lead-electroplated pure copper
Design Life
Up to 5 Years in stand-by service at 77°F (25°C)
Warranty
1 Year Full
Electrical Specifications & Performance Characteristics
Float Charging Voltage
6.75 to 6.90 Vdc / battery at 77°F (25°C)
Equalizing Charging Voltage
7.20 to 7.50 Vdc / battery at 77°F (25°C)
Maximum Charging Current
2.16A
Maximum Discharge Current
130A with F2 Terminal
Internal Resistance
Approx. 12.3 mΩ
Operating Temperature Ranges
Nominal: 77°F (25°C)
Discharge: 5°F to 122°F (-15°C to 50°C)
Charge / Storage: 5°F to 104°F (-15°C to 40°C)
Self-Discharge
Less than 10% after 90 days; Can be stored for up to 6 months at 77°F (25°C)
Fully recharging is required before usage, and charged sooner if stored at higher temperatures than 77°F (25°C)
Electrolyte
Sulfuric Acid
Construction Details
Container
ABS (UL 94-HB)
Cell Cover
ABS
Separators
AGM
Electrolyte
Sulfuric Acid
Safety Valve
Rubber
Terminal Material
Lead-electroplated pure copper

Certifications & Safety Compliances

  • IEC 61056-1/2:2012
  • UL Recognized under UL 1989
  • Complies with IATA/ICAO Special Provision A67 for air transport, are classified per MG Amendment 27 as a non-hazardous material for water transport, and recognized by DOT as "Dry Charge" 49 CFR 171-189 for surface transport
  • UL Recognized Components
  • Optional flame-retardant case

Options & Accessories

  • Contact a member of the Power Storage Solutions Sales Team for additional information on options and accessories.
