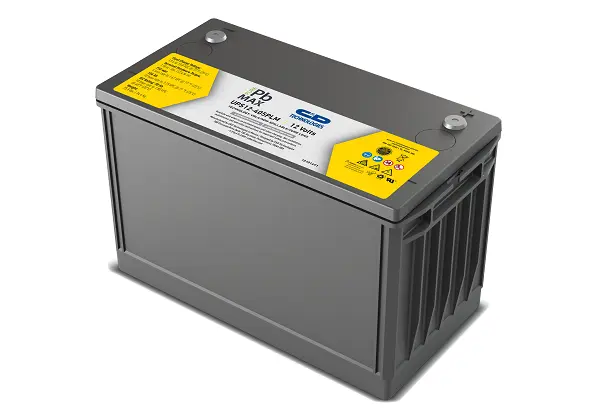

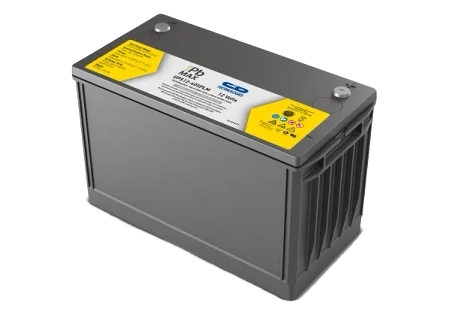

C&D Technologies UPS12-305PLM Pure Lead Max VRLA Battery - C&D PLM Series

C&D Technologies’ PLM Series (Pure Lead Max) UPS Batteries represent the longest-lasting VRLA solutions in C&D’s product line for Uninterruptible Power Supply (UPS) systems. Engineered with precision, these pure lead AGM batteries are supported by an industry-leading 8-year warranty. Leveraging C&D’s patented pure lead alloy and catalyst technology, this pure lead AGM battery minimizes total cost of ownership by providing a sustainable, single-replacement solution for 15-year UPS systems. C&D’s PLM Series are the safe and reliable choice for critical power needs including Uninterruptible Power Supply (UPS) systems and Data Center backup applications.

Key Features & Benefits

• Proprietary pure lead technology combined with catalyst design extends battery life to just a single replacement cycle
• Extensive portfolio to reduce footprint by up to 28% and battery quantity by up to 40% vs leading competitor
• No limitations on where it can be deployed
• Up to 38% Less Maintenance Costs based on the recommended maintenance schedule
• Catalyst technology extends service life
• MSE’s Advanced proprietary paste processing for high active material utilization resulting in low float current
• 16-year design life
• 8-year warranty backed by market leader and proven technology
• Published rates down to 1 minute

Applications

• Uninterruptible Power Supply (UPS)
• Data Centers
• Healthcare
• Government

C&D UPS12-305PLM Construction Details

• Valve Regulated Lead Acid (VRLA) Battery

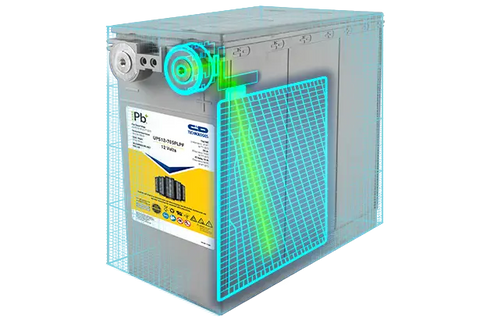

• The TFA (True Front Access) design maximizes energy density and minimizes internal resistance by providing a direct connection from the plates to the terminals
• Patented Long-Life Alloy in the grids to minimize grid growth, reduce gassing, and extend battery life
• Thermally welded and helium leak tested case-to-cover bond ensures a robust leak proof seal
• Patented UL Recognized Flame-arresting vents in each cell for safety
• Pure Lead Max batteries are 98% recyclable and manufactured with up to 80% of recycled materials
• Can be operated in any orientation

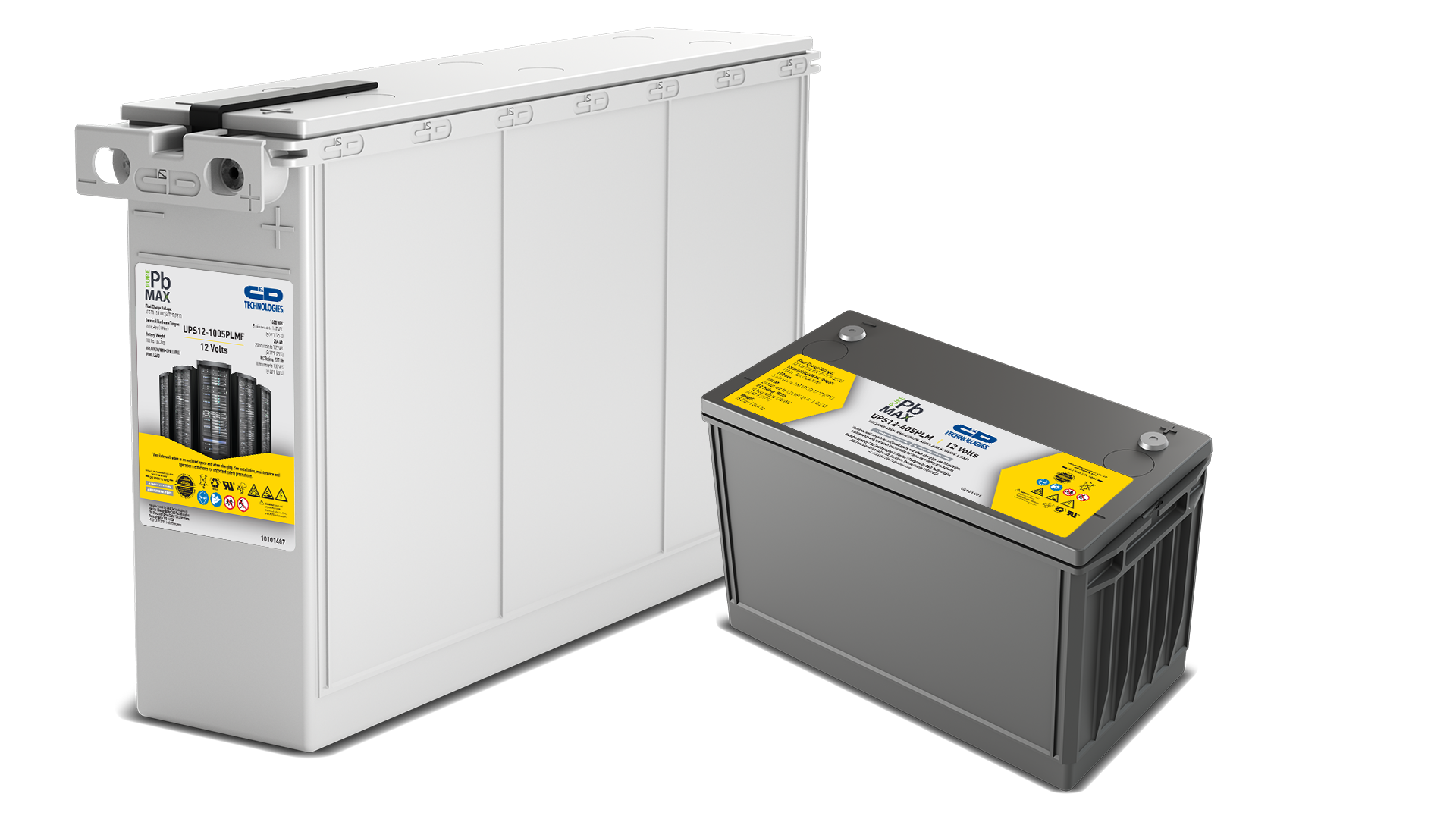

• Available in both Top terminal and True Front Access (TFA) format

Specification Details for UPS12-305PLM by C&D

Certifications & Safety Compliances

• TAA Compliant
• Complies with UL1973, UL1778, UL1989, UL924,UL94 V-2, UL94 V-0
• Complies with BS6290-4
• Complies with IEC60896-22
• UL Recognized Components
• More information on UL Safety Standards
• More information on ISO Safety Standards
• More information on RoHS Safety Standards & Compliances
• More information on IEC Safety Standards
• More information on NERC Safety Standards & Compliances
• More information on ETSI Safety Standards
• More information on ANSI Safety Standards & Compliances
• More information on Transportation Regulations

Options & Accessories

• Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.

Explore Other Models in the C&D PLM Series

• UPS12-355PLM
• UPS12-405PLM
• UPS12-495PLM
• UPS12-545PLM
• UPS12-605PLM
• UPS12-675PLMF
• UPS12-705PLMF
• UPS12-1005PLMF

• For more information on this product line, visit the C&D Technologies website.
