C&D msEndure II 48V 480Ah 2-24V 6H x 4W (1) PTL NTM (1) PTR NTM Battery System
C&D msEndure II 48V 480Ah 2-24V 6H x 4W (1) PTL NTM (1) PTR NTM Battery System
C&D msEndure II 48V 480Ah 2-24V 6H x 4W (1) PTL NTM (1) PTR NTM Battery System
C&D msEndure II 48V 480Ah 2-24V 6H x 4W (1) PTL NTM (1) PTR NTM Battery System
SKU: AT-09P E0946024ZN02

C&D msEndure II 48V 480Ah 2-24V 6H x 4W (1) PTL NTM (1) PTR NTM Battery System

$14,233.11

ask a question

request quote

request service quote

Other models in this line

AT-09P

$593.05

Pre-order

AT-09P E0943012CE01

$7,116.55

Pre-order

AT-09P E0946024CE01

$14,233.11

Pre-order

AT-09P E0962012CE01

$7,116.55

Pre-order

AT-09P E0964024CE01

$14,233.11

Pre-order

AT-09P E0965060CE01

$35,582.77

Pre-order

AT-09P E0968192CE01

$113,864.86

Pre-order

AT-09P E0968240CE01

$142,331.08

Pre-order

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT
2V AGM (VRLA)
Indoor, Outdoor Controlled
Title
Title

CAPACITY

60 A Constant Current @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

480 Ah @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

892 WPC @ 15 Min Rate to 1.67 VPC @ 77ºF (25ºC)

Title

design life & warranty
20 Years Design Life
7 Year Full Warranty
Title

DIMENSIONS
Length: 19.32 in
Width: 26.25 in
Height: 62.67 in
Weight: 2265.0 lb
Title

certifications & compliances
TAA Compliant, UL924-VO Jar & Cover, UL-Recognized Component
Title

industries
Data Center & UPS, Telecom, Utility, Petrochemical, General Purpose

Specifications

view more in-depth details on applications & specifications
C&D AT Series msEndur II Switchgear Brochure.pdf
C&D AT Series msEndur II AT09 E0946024ZN02 Drawing.pdf
C&D AT Series msEndur II Telecom Brochure.pdf
C&D AT Series msEndur II UPS Data Center Brochure.pdf
C&D AT Series msEndur II Installation and Operation Manual.pdf
C&D AT Series msEndur II Module Specification Sheet.pdf
Title

safety

view more in-depth details on safety features & certifications
C&D AT Series msEndur II Lead-Electrolyte Amounts.pdf
C&D AT Series msEndur II Safety Data Sheet.pdf

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation
Title

rentals & emergency

container rentals

battery rentals

emergency rentals & response
Title

installation

batteries

c0 / msc / cell site

power equipment
Title

microgrid design

feasibility assessment & budgeting

system design, install, & maintenance

operations & optimization
Title

technical

capacity & acceptance Testing

battery & equipment commissioning

maintenance
Title

recycling

batteries - remove, replace, recycle

approved transport & smelting

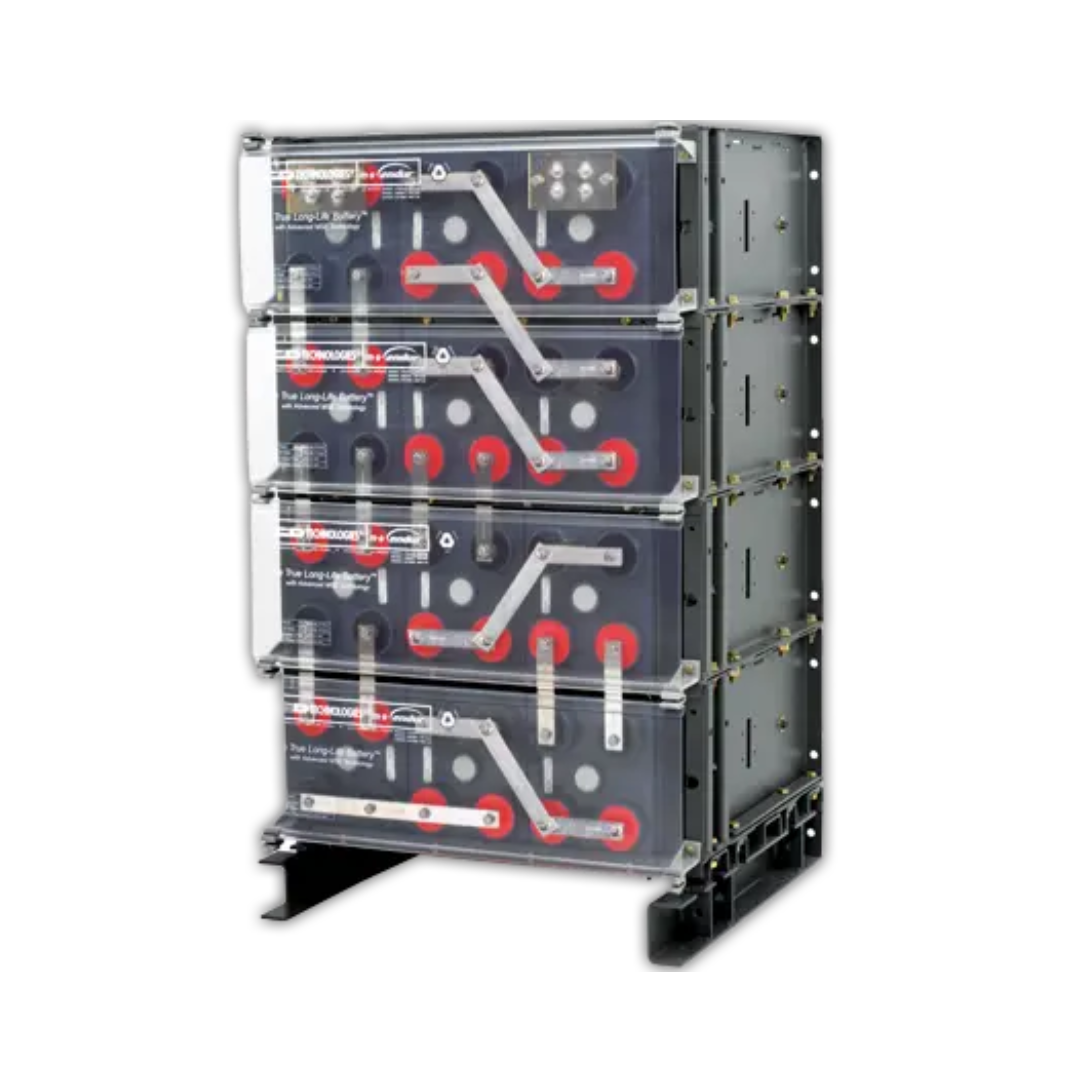

C&D Technologies msEndur II AT-09P AGM VRLA Battery - AT-P Series

C&D Technologies msEndur II AT Series batteries are specifically engineered for demanding applications. By integrating the long service life of traditional flooded batteries with the high energy density and performance of valve-regulated designs, C&D has developed the msEndur II - The True Long-Life Battery™. With an estimated 20-year design life and low float current, the msEndur II significantly lowers the total cost of ownership while enhancing environmental sustainability, making it an efficient and eco-conscious 2V VRLA battery.

Key Features & Benefits

  • Flame retardant container and cover (UL94 V-0)
  • Modular design for ease of installation and stacking flexibility
  • Space saving design for the greatest amount of power in a small footprint
  • Certified as NEBS Level 3 and compliant to Earthquake Risk Zone 4 in various system configurations
  • Compliant to highest levels of UBC, IBC, IEEE, and NEBS seismic standards
  • Tin-plated copper alloy connectors minimize maintenance
  • New C&D Ohmic Ring® for ease of maintenance readings. With specially adapted probes only one technician is required to take readings.
  • Long service life

Applications

  • Wireless
  • Wireline
  • Central Office
  • Mobile Switching Centers
  • PBX Systems
  • Microwave
  • Broadband Headend
  • Network Operation Centers
  • Data Centers
  • Industrial Processes
  • Utility Substations

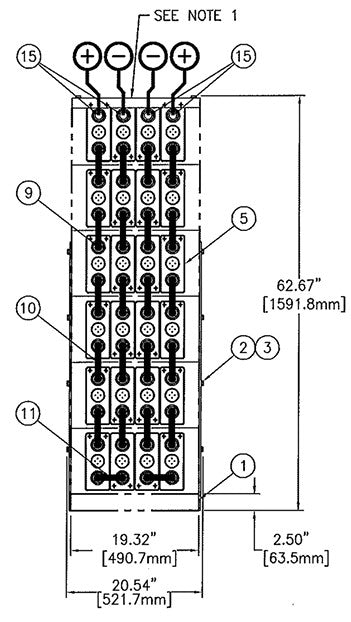

AT-09P E0946024ZN02 Construction Details

  • Advanced AGM separators for ultra-low float current
  • Proprietary calcium alloys to minimize positive grid corrosion and growth, which maximizes battery life
  • High energy density and low float current
  • Flame retardant container and cover (UL94 V-0)

Specification Details for AT-09P E0946024ZN02 by C&D Technologies

ATTRIBUTES DETAILS
General Info
Chemistry
2V AGM (VRLA)
Voltage
48V
Capacity
480 Ah @ 8 Hr Rate
Cells Per Unit
24 cells
Dimensions
    - Overall Depth
    - Overall Width
    - Overall Height

26.25 inches / 666.75 mm
20.54 inches / 521.72mm
62.67 inches / 1,591.82 mm
Weight
2,265.00 lbs / 1,027.39 kgs
Container Type
Poly FR
Terminal Type
5/16 Insert
Terminal Material
Tin-plated copper inserted terminal to accept 5/16-18 UNC Bolt
Design Life
20 years
Warranty
5 year full
Electrical Specifications & Performance Characteristics
Recommended Operating Temperature
77°F (25°C)
Float Charging Voltage
2.25 to 2.27 volts per cell average at 77°F (25°C)
Charger Compensation Temperature / Voltage
- 2 mV/cell/°F above 77°F (-3.6 mV/cell/°C above 25°C)
+2 mV/cell/°F above 77°F (+3.6 mV/cell/°C above 25°C)
Operating Temperature Ranges
Nominal: 77°F +/-2°F (25°C +/-3°C)
Recommended Storage: 50°F to 77°F (10°C to 25°C)
Allowable Storage: 20°F to 90°F (-7°C to 32°C)
Avoid Temperature Variations: +/-5°F (+/-3°C )
Specific Gravity
1.30
Electrolyte
Sulfuric Acid
Construction Details
Positive Plate
Copper with lead or tin coating
Negative Plate
Copper with lead or tin coating
Container
Poly-FR
Cell Cover
Poly-FR
Separator
AGM
Electrolyte
Sulfuric Acid
Safety Valve
Flash arrestor and pressure relief valve
Terminal Material
Tin-plated Copper Insert

Certifications & Safety Compliances

  • Certified as NEBS Level 3 and compliant to Earthquake Risk Zone 4 in various system configurations
  • Compliant to highest levels of UBC, IBC, IEEE, and NEBS seismic standards
  • UL-Recognized Components
  • Flame retardant container and cover (UL94 V-0)

Options & Accessories

  • Also available with 1.250 Specific Gravity (C&D Technologies msEndur II ATL-P Series)
