C&D msEndure II 480V 840Ah 5 Stacks 8H x 6W PTL NTL Battery Systems
C&D msEndure II 480V 840Ah 5 Stacks 8H x 6W PTL NTL Battery Systems
C&D msEndure II 480V 840Ah 5 Stacks 8H x 6W PTL NTL Battery Systems
C&D msEndure II 480V 840Ah 5 Stacks 8H x 6W PTL NTL Battery Systems
SKU: AT-15P E1568240CE01

C&D msEndure II 480V 840Ah 5 Stacks 8H x 6W PTL NTL Battery Systems

$187,798.15

ask a question

request quote

request service quote

Other models in this line

AT-15P

$782.49

Pre-order

AT-15P E1534012CE01

$9,389.91

Pre-order

AT-15P E1538024CE01

$18,779.82

Pre-order

AT-15P E1538024CE01-CC

$18,779.82

Pre-order

AT-15P E1543012CE01

$9,389.91

Pre-order

AT-15P E1546024CE01

$18,779.82

Pre-order

AT-15P E1565060CE01

$46,949.54

Pre-order

AT-15P E1565060RE01

$46,949.54

Pre-order

AT-15P E1565120CE01

$93,899.08

Pre-order

AT-15P E1568192CE01

$150,238.52

Pre-order

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT
2V AGM (VRLA)
Indoor, Outdoor Controlled
Title
Title

CAPACITY

105 A Constant Current @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

840 Ah @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

1561 WPC @ 15 Min Rate to 1.67 VPC @ 77ºF (25ºC)

Title

design life & warranty
20 Years Design Life
7 Year Full Warranty
Title

DIMENSIONS
Length: 220.30 in
Width: 25.25 in
Height: 84.42 in
Weight: 33045.0 lb
Title

certifications & compliances
TAA Compliant, UL924-VO Jar & Cover, UL-Recognized Component
Title

industries
Data Center & UPS, Telecom, Utility, Petrochemical, General Purpose

Specifications

view more in-depth details on applications & specifications
Title

safety

view more in-depth details on safety features & certifications

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation
Title

rentals & emergency

container rentals

battery rentals

emergency rentals & response
Title

installation

batteries

c0 / msc / cell site

power equipment
Title

microgrid design

feasibility assessment & budgeting

system design, install, & maintenance

operations & optimization
Title

technical

capacity & acceptance Testing

battery & equipment commissioning

maintenance
Title

recycling

batteries - remove, replace, recycle

approved transport & smelting

C&D Technologies msEndur II AT-15P AGM VRLA Battery - AT-P Series

C&D Technologies msEndur II AT Series batteries are specifically engineered for demanding applications. By integrating the long service life of traditional flooded batteries with the high energy density and performance of valve-regulated designs, C&D has developed the msEndur II - The True Long-Life Battery™. With an estimated 20-year design life and low float current, the msEndur II significantly lowers the total cost of ownership while enhancing environmental sustainability, making it an efficient and eco-conscious 2V VRLA battery.

Key Features & Benefits

  • Flame retardant container and cover (UL94 V-0)
  • Modular design for ease of installation and stacking flexibility
  • Space saving design for the greatest amount of power in a small footprint
  • Certified as NEBS Level 3 and compliant to Earthquake Risk Zone 4 in various system configurations
  • Compliant to highest levels of UBC, IBC, IEEE, and NEBS seismic standards
  • Tin-plated copper alloy connectors minimize maintenance
  • New C&D Ohmic Ring® for ease of maintenance readings. With specially adapted probes only one technician is required to take readings.
  • Long service life

Applications

  • Wireless
  • Wireline
  • Central Office
  • Mobile Switching Centers
  • PBX Systems
  • Microwave
  • Broadband Headend
  • Network Operation Centers
  • Data Centers
  • Industrial Processes
  • Utility Substations

AT-15P E1568240CE01 Construction Details

  • Advanced AGM separators for ultra-low float current
  • Proprietary calcium alloys to minimize positive grid corrosion and growth, which maximizes battery life
  • High energy density and low float current
  • Flame retardant container and cover (UL94 V-0)

Specification Details for AT-15P E1568240CE01 by C&D Technologies

ATTRIBUTES DETAILS
General Info
Chemistry
2V AGM (VRLA)
Voltage
480V
Capacity
840 Ah @ 8 Hr Rate
Cells Per Unit
240 cells

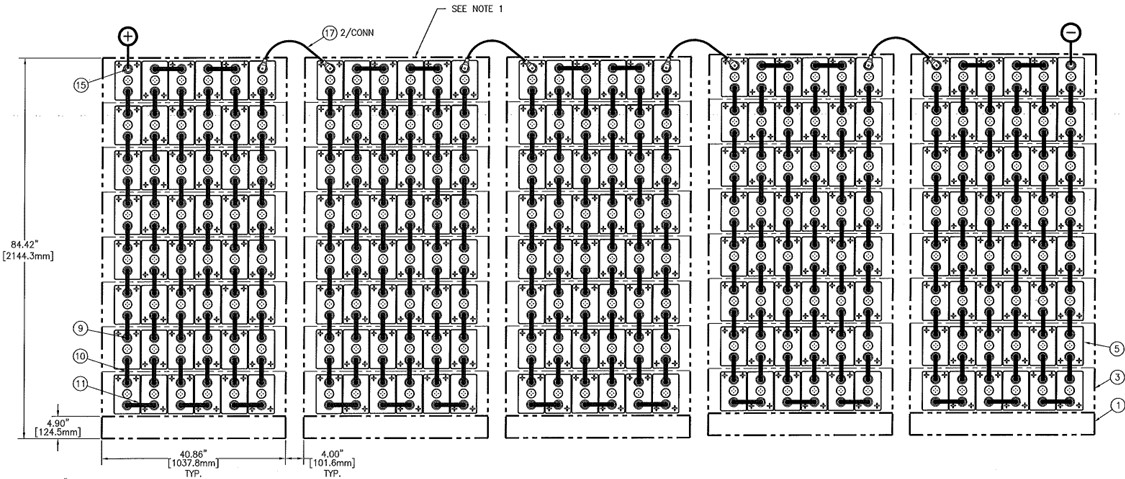

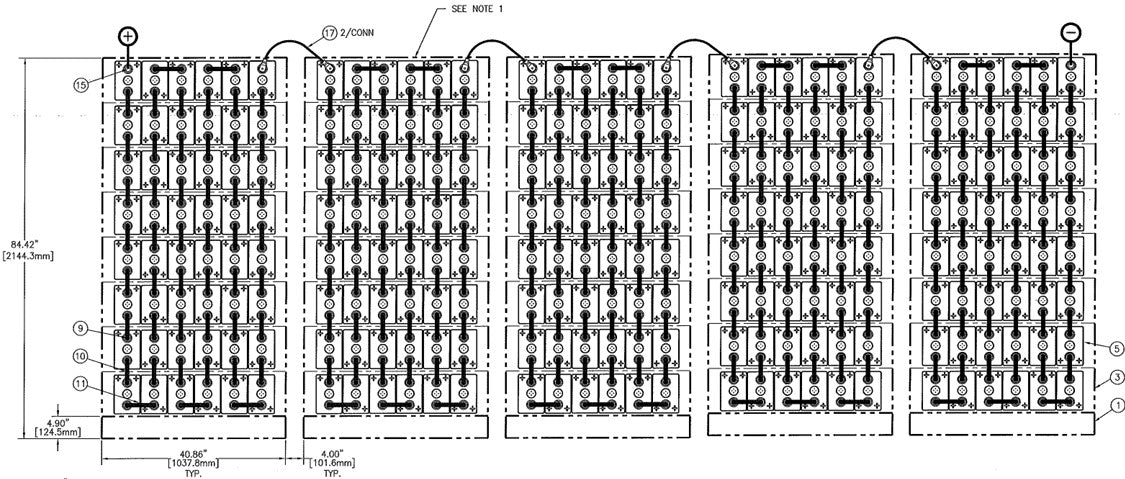

Dimensions
    - Overall Depth
    - Overall Width
    - Overall Height

  25.25 inches / 641.35 mm
220.30 inches / 5,595.62 mm
  84.42 inches / 2,144.27 mm
Weight
14,989.00 lbs / 6,798.90 kgs
Container Type
Poly FR
Terminal Type
5/16 Insert
Terminal Material
Tin-plated copper inserted terminal to accept 5/16-18 UNC Bolt
Design Life
20 years
Warranty
5 year full
Electrical Specifications & Performance Characteristics
Recommended Operating Temperature
77°F (25°C)
Float Charging Voltage
2.25 to 2.27 volts per cell average at 77°F (25°C)
Charger Compensation Temperature / Voltage
- 2 mV/cell/°F above 77°F (-3.6 mV/cell/°C above 25°C)
+2 mV/cell/°F above 77°F (+3.6 mV/cell/°C above 25°C)
Operating Temperature Ranges
Nominal: 77°F +/-2°F (25°C +/-3°C)
Recommended Storage: 50°F to 77°F (10°C to 25°C)
Allowable Storage: 20°F to 90°F (-7°C to 32°C)
Avoid Temperature Variations: +/-5°F (+/-3°C )
Specific Gravity
1.30
Electrolyte
Sulfuric Acid
Construction Details
Positive Plate
Copper with lead or tin coating
Negative Plate
Copper with lead or tin coating
Container
Poly-FR
Cell Cover
Poly-FR
Separator
AGM
Electrolyte
Sulfuric Acid
Safety Valve
Flash arrestor and pressure relief valve
Terminal Material
Tin-plated Copper Insert

Certifications & Safety Compliances

  • Certified as NEBS Level 3 and compliant to Earthquake Risk Zone 4 in various system configurations
  • Compliant to highest levels of UBC, IBC, IEEE, and NEBS seismic standards
  • UL-Recognized Components
  • Flame retardant container and cover (UL94 V-0)

Options & Accessories

  • Also available with 1.250 Specific Gravity (C&D Technologies msEndur II ATL-P Series)
