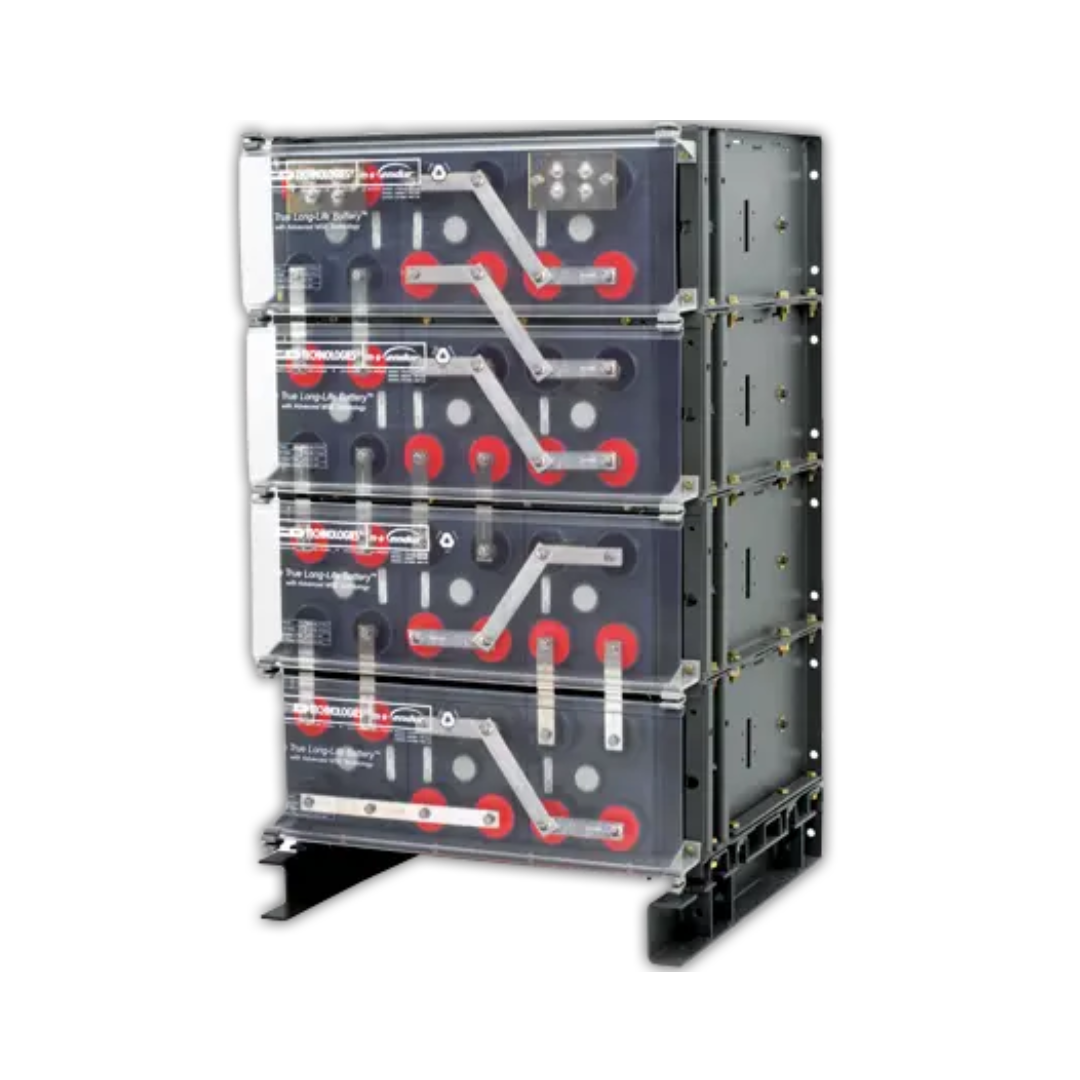

C&D Technologies msEndur II AT-19P AGM VRLA Battery - AT-P Series
C&D Technologies msEndur II AT Series batteries are specifically engineered for demanding applications. By integrating the long service life of traditional flooded batteries with the high energy density and performance of valve-regulated designs, C&D has developed the msEndur II - The True Long-Life Battery™. With an estimated 20-year design life and low float current, the msEndur II significantly lowers the total cost of ownership while enhancing environmental sustainability, making it an efficient and eco-conscious 2V VRLA battery.
Key Features & Benefits
- Flame retardant container and cover (UL94 V-0)
- Modular design for ease of installation and stacking flexibility
- Space saving design for the greatest amount of power in a small footprint
- Certified as NEBS Level 3 and compliant to Earthquake Risk Zone 4 in various system configurations
- Compliant to highest levels of UBC, IBC, IEEE, and NEBS seismic standards
- Tin-plated copper alloy connectors minimize maintenance
- New C&D Ohmic Ring® for ease of maintenance readings. With specially adapted probes only one technician is required to take readings.
- Long service life
Applications
- Wireless
- Wireline
- Central Office
- Mobile Switching Centers
- PBX Systems
- Microwave
- Broadband Headend
- Network Operation Centers
- Data Centers
- Industrial Processes
- Utility Substations
AT-19P E1943012CE01 Construction Details
- Advanced AGM separators for ultra-low float current
- Proprietary calcium alloys to minimize positive grid corrosion and growth, which maximizes battery life
- High energy density and low float current
- Flame retardant container and cover (UL94 V-0)
Specification Details for AT-19P E1943012CE01 by C&D Technologies
ATTRIBUTES |
DETAILS |
General Info |
Chemistry |
2V AGM (VRLA) |
Voltage |
24V |
Capacity |
1080 Ah @ 8 Hr Rate |
Cells Per Unit |
|

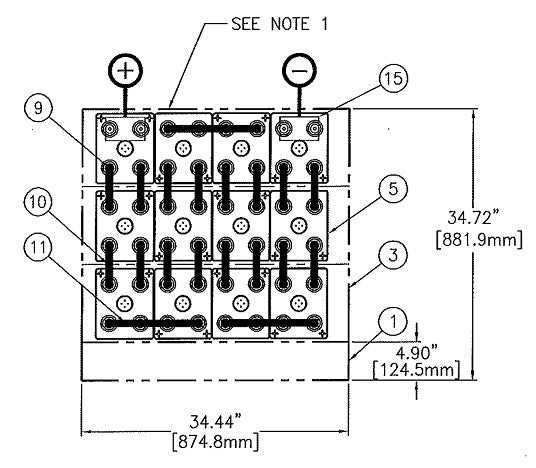

Dimensions
- Overall Depth
- Overall Width
- Overall Height
|
25.25 inches / 641.35 mm 34.44 inches / 874.78 mm 34.72 inches / 881.89 mm
|
Weight |
2,220.00 lbs / 1,006.98 kgs |
Container Type |
|
Terminal Type |
|
Terminal Material |
Tin-plated copper inserted terminal to accept 5/16-18 UNC Bolt
|
Design Life |
|
Warranty |
5 year full |
Electrical Specifications & Performance Characteristics |
Recommended Operating Temperature |
77°F (25°C) |
Float Charging Voltage |
2.25 to 2.27 volts per cell average at 77°F (25°C) |
Charger Compensation Temperature / Voltage |
- 2 mV/cell/°F above 77°F (-3.6 mV/cell/°C above 25°C)
+2 mV/cell/°F above 77°F (+3.6 mV/cell/°C above 25°C)
|
Operating Temperature Ranges |
Nominal: 77°F +/-2°F (25°C +/-3°C)
Recommended Storage: 50°F to 77°F (10°C to 25°C)
Allowable Storage: 20°F to 90°F (-7°C to 32°C)
Avoid Temperature Variations: +/-5°F (+/-3°C )
|
Specific Gravity |
1.30 |
Electrolyte |
|
Construction Details |
Positive Plate |
Copper with lead or tin coating
|
Negative Plate |
Copper with lead or tin coating
|
Container |
|
Cell Cover |
|
Separator |
|
Electrolyte
|
Sulfuric Acid |
Safety Valve |
Flash arrestor and pressure relief valve
|
Terminal Material |
|
Certifications & Safety Compliances
- Certified as NEBS Level 3 and compliant to Earthquake Risk Zone 4 in various system configurations
- Compliant to highest levels of UBC, IBC, IEEE, and NEBS seismic standards
- UL-Recognized Components
- Flame retardant container and cover (UL94 V-0)
Options & Accessories
- Also available with 1.250 Specific Gravity (C&D Technologies msEndur II ATL-P Series)
Explore Other Models in the C&D Technologies msEndur II AT-P Series
- AT-19P
- AT-19P E1934012CE01
- AT-19P E1938024CE01
- AT-19P E1938240CE01
- AT-19P E1946024CE01
- AT-19P E1946024CE01-CC
- AT-19P E1948060CE01
- AT-19P E0966060CE03
