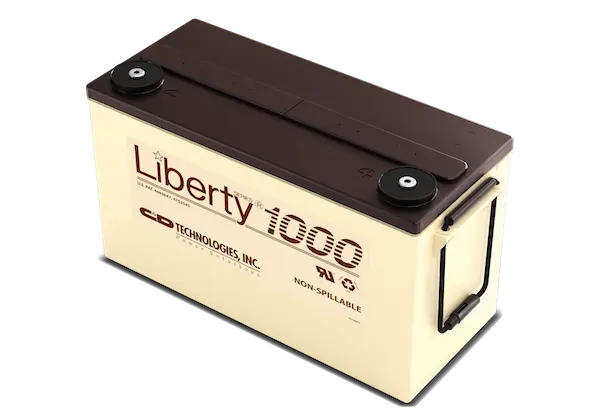

C&D Technologies LS-04-300 AGM VRLA Battery - C&D Liberty Series 1000 Batteries

C&D Technologies Liberty Series 1000 valve-regulated lead-acid (VRLA) batteries are engineered to deliver reliable performance and consistent power throughout the life of the product. Designed using C&D's patented processes, these batteries offer a long service life of 10-years with minimal maintenance. The versatile Liberty Series 1000 VRLA battery fits virtually anywhere and delivers superior performance in even the most demanding applications, including Telecommunications, Utilities and Switchgear, and Uninterruptible Power Supply (UPS) applications.

Key Features & Benefits

• Through-the-partition intercell connection shortens current paths and increases performance
• Copper-to-copper connections minimize resistance, especially at high rates, and shorten maintenance time by reducing the need for retorquing connections
• Patented and time-tested C&D post seal design with secondary epoxy seal to increase integrity for leak-free operation and superior reliability
• Two-fold vent system, comprised of a low-pressure safety valve with flash arrestor, minimizes bulging and prevents flashback explosion from internal ignition sources
• Thick radial grid design for both positive and negative plates improves current capacity and performance resulting in long float life
• 100% of cells are tested for conductance, voltage, and capacity
• Tested in accordance with Bellcore TR-NWT-000766 specifications
• 100& of cells are tested to 95% capacity at the 8 hour rate to 1.75 VPC

Applications

• Telecommunications
• Utilities and Switchgear
• Uninterruptible Power Supply (UPS)

C&D LS-04-300 Construction Details

• Advanced, computer controlled thermal cover-to-jar weld for greater reliability and consistency
• Automated, state-of-the-art, cast-on strap process ensures consistent, high-quality, low electrical-resistance welds
• Fully automated vacuum and filling operation results in uniform acid volume distribution and consistent float voltage
• Immobilized electrolyte technology using an absorbent glass mat (AGM) design offers safe handling and storage
• Non-spillable designation for lower shipping cost
• High-impact resistant PVC container and cover provide excellent water vapor retention, preventing dry out and oxygen infiltration

Specification Details for LS-04-300 by C&D

Certifications & Safety Compliances

• TAA Compliant
• UL Recognized Component

Options & Accessories

• Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.

Explore Other Models in the C&D Liberty Series Batteries

• LS-02-600
• LS-06-200
• LS-12-100

Power Storage Solutions Installation & Services

As your full-service provider, Power Storage Solutions offers more than just products—we provide turnkey installation, system design support, removal and recycling services, and compliance-focused maintenance. Our expert technicians ensure every install is safe, efficient, and built to last. We are proud to offer the following services:

• Free Site Audits & Consulting
• On-Site Installation & Commissioning
• System Design & Engineering
• Battery Testing & Monitoring
• Preventative & Contract Maintenance Programs
• End-of-Life Recycling & Disposal
• Emergency Response & Troubleshooting
• Disaster Preparation & Recovery Protocols
• Temporary Rental Solutions
• Containerized BESS Solutions
• DC Power Training Programs

Visit our services page to explore how we can protect your business operations and optimize your critical backup power systems.
