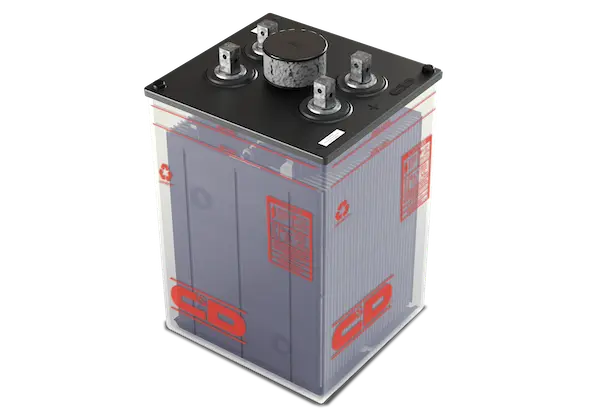

C&D LCZ 2500 2V 2496Ah @ 8 Hr Rate SAN 1.215 SPG Flooded VLA Battery
SKU: LCZ 2500 SAN

C&D LCZ 2500 2V 2496Ah @ 8 Hr Rate SAN 1.215 SPG Flooded VLA Battery

$2,207.38

ask a question

request quote

request service quote

Other models in this line

LCZ 2500 SAN TUBE

$2,207.38

Pre-order

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT

Flooded Lead Calcium (PbCa)
Title
Title

CAPACITY

312 A Constant Current @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

2496 Ah @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)
Title

design life & warranty

20 Years Design Life
1 Year Full 19 Pro Rata Warranty
Title

DIMENSIONS

Length: 13.14 in
Width: 14.12 in
Height: 22.63 in
Weight: 461.0 lb
Title

certifications & compliances

TAA Compliant, BAA Compliant, UL924-VO Jar & Cover, NEBS approved battery systems (cells and racks), NEBS Certified
Title

industries

Telecom

Specifications

view more in-depth details on applications & specifications

C&D LCZ 2500 Specification Sheet.pdf
C&D LCZ Flooded Warranty.pdf
C&D LCZ Vented Cell Installation Operation Manual.pdf
C&D LCZ 2500 Specification Sheet.pdf
C&D LCZ Flooded Warranty.pdf
C&D LCZ Vented Cell Installation Operation Manual.pdf
Title

safety

view more in-depth details on safety features & certifications

C&D LCZ Safety Data Sheet.pdf

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation

Title

rentals & emergency

containerized rentals

temporary battery strings & equipment rentals

disaster recovery & emergency response
Title

installation

batteries & ups systems

co / msc / cell site

grounding/pages/technical-grounding-services

Title

microgrid design

scalable battery energy storage systems (bess)

feasibility assessment & budgeting

system design, install, & maintenance
Title

technical

capacity & acceptance testing

dc power engineering & training

preventative, contract, & scheduled maintenance programs

Title

Removal, Upgrades, & recycling

battery removal, replacement, & recycling

removal & cable mining

upgrades & transition work

C&D Technologies LCZ 2500 SAN Flooded Lead Calcium (PbCa) VLA Battery - C&D LCZ Series

C&D Technologies CLZ Series flooded lead-calcium battery is designed for long-lasting, reliable performance with minimal maintenance. Built using proprietary manufacturing technology and high-quality materials, this battery delivers superior durability throughout its service life. This battery offers exceptional reliability and consistent performance, making it ideal for telecommunications applications. The LCZ Series battery serves as a dependable standby power source for telecom central offices, outside plants, and other critical network infrastructure.

Key Features & Benefits

  • Long-life positive plates cast with a proprietary process and alloy
  • Water-bath charging results in consistently formed plates for reliable performance out of the box (no cycling required in the field)
  • Proprietary expander enables stable and uniform float voltages (down to 2.17 VPC), reducing the need to equalize and resulting in proven 20-year service life
  • Suspended positive plate permits free growth without pressure on the jar and cover
  • Flame-retardant covers enhance battery plant safety with self-extinguishing properties, LOI > 32%, UL94 V-0
  • NEBS approved battery systems (cells and racks) that meet telecom companies' specifications
  • Narrow 17.00 inch (43.18 cm) depth racks available - NEBS qualified for cost savings
  • No requirement for periodic specific gravity readings

Applications

  • Telecommunications

C&D LCZ 2500 SAN Construction Details

  • Computer controlled heli-arc welded post seal results in a consistent and reliable seal for less maintenance and longer product life
  • Low-evaporation, flame arrestor vent to extend watering intervals and prevent external sparks from reacting with the hydrogen inside the cell
  • Transparent container allows for visual inspections of the plates

Specification Details for LCZ 2500 SAN by C&D

ATTRIBUTES DETAILS
General Info
Chemistry
Flooded Lead Calcium (PbCa)
Voltage
2V
Capacity
2496 Ah @ 8 Hr Rate
Cells Per Unit
1 cell
Dimensions
    - Overall Length
    - Overall Width
    - Overall Height

13.14 inches / 334.00 mm
14.12 inches / 359.00 mm
22.63 inches / 575.00 mm
Weight
438.00 lbs / 200.00 kgs
Container Type
SAN
Terminal Type
Four 1.00 inch (25.0 mm) square posts per cell
Design Life
20 Years
Warranty
1 Year Full, 19 Year Pro Rate
Electrical Specifications & Performance Characteristics
Recommended Float Voltage
2.17 to 2.22 VPC at 1.215 specific gravity
Operating Temperature Ranges
Nominal: 77°F (25°C)
Recommended Operating Temperature: 60°F to 90°F (15°C to 32°C)
Operating Temperature Limits: 32°F to 120°F (0°C to 49°C)
Self-Discharge
A refreshing charge is needed after being stored for:
180 days at 0°F to 77°F (-17°C to 25°C)
90 days at 78°F to 90°F (25°C to 32°C)
45 days at 91°F to 120°F (32°C to 48°C)
Specific Gravity
1.215
Electrolyte
Sulfuric Acid
Construction Details
Container Material
Transparent thermoplastic SAN
Cover Material
High-impact, flame-retardant thermoplastic with tongue-and-groove seal;
Flammability ratings: UL94 V-0
ASTM D-635 self-extinguishing
Terminal Material
Lead-plated copper connectors
Safety Vent System
Flame arrestor type with dust cap
Separators
Microporous

Certifications & Safety Compliances

  • TAA Compliant
  • BAA Compliant
  • NEBS Approved Battery Systems

Options & Accessories

  • Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.
