C&D LCY 8V 669Ah @ 8 Hr Rate POLY Ca 1.250 SPG Flooded VLA Battery
SKU: 4LCYC-11 POLY

C&D LCY 8V 669Ah @ 8 Hr Rate POLY Ca 1.250 SPG Flooded VLA Battery

$3,907.00

ask a question

request quote

request service quote

Other models in this line

4LCY-05 POLY

$2,505.00

Pre-order

4LCY-07 POLY

$2,950.49

Pre-order

4LCY-09 POLY

$3,288.85

Pre-order

4LCY-11 POLY

$3,907.00

Pre-order

4LCYC-05 POLY

$3,849.23

Pre-order

4LCYC-07 POLY

$2,950.49

Pre-order

LCY-35 POLY

$3,028.52

Pre-order

LCY-35 POLY TUBE

$3,028.52

Pre-order

LCY-35 SAN

$2,777.77

Pre-order

LCY-35 SAN TUBE

$2,777.77

Pre-order

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT

Flooded Lead Calcium (PbCa)
Title
Title

CAPACITY

84 A Constant Current @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

669 Ah @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)
Title

design life & warranty

20 Years Design Life
1 Year Full 19 Pro Rata Warranty
Title

DIMENSIONS

Length: 15.00 in
Width: 14.13 in
Height: 22.75 in
Weight: 395.0 lb
Title

certifications & compliances

TAA Compliant, BAA Compliant, NEBS Certified
Title

industries

Utility, Petrochemical

Specifications

view more in-depth details on applications & specifications

C&D 4LCY Specification Sheet.pdf
C&D 4LCY Specification Drawing.pdf
C&D Vented Cell Installation Operation Manual.pdf
C&D 4LCY Specification Sheet.pdf
C&D Vented Cell Installation Operation Manual.pdf
C&D 4LCY Specification Sheet for Switchgear Applications.pdf
C&D Standard Flooded Warranty.pdf
Title

safety

view more in-depth details on safety features & certifications

C&D Flooded Lead Calcium Safety Data Sheet.pdf
C&D LCY Safety Data Sheet.pdf
C&D Lead Electrolyte Amounts.pdf

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation

Title

rentals & emergency

containerized rentals

temporary battery strings & equipment rentals

disaster recovery & emergency response
Title

installation

batteries & ups systems

co / msc / cell site

grounding/pages/technical-grounding-services

Title

microgrid design

scalable battery energy storage systems (bess)

feasibility assessment & budgeting

system design, install, & maintenance
Title

technical

capacity & acceptance testing

dc power engineering & training

preventative, contract, & scheduled maintenance programs

Title

Removal, Upgrades, & recycling

battery removal, replacement, & recycling

removal & cable mining

upgrades & transition work

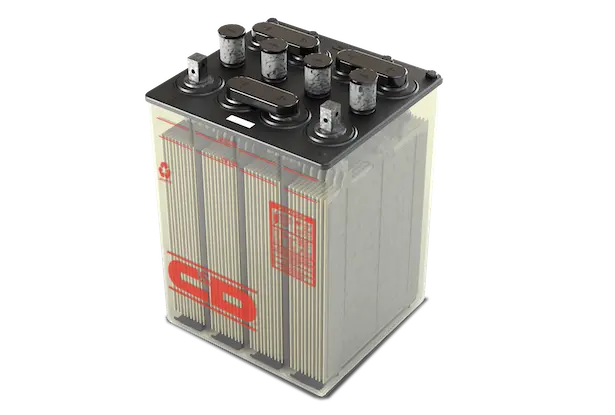

C&D Technologies 4LCYC-11 POLY Flooded VLA Battery - C&D 4LCY Series

C&D Technologies 4LCY Series flooded VLA batteries are engineered for exceptional performance and long-term reliability. Utilizing proprietary design techniques along with high-quality components and materials, these batteries deliver enhanced performance, reduced maintenance, and an extended service life. C&D 4LCY Series batteries are ideal for Telecommunications and Energy and Infrastructure applications.

Key Features & Benefits

  • Four-cell design offers reduced length for optimum space utilization resulting in shorter racks
  • Fewer bolted connectors per battery string reduces installation and maintenance costs
  • Suspended positive plate permits free growth without pressure on the jar and cover
  • Snap-on, intercell-connector insulating the cover
  • Terminals accessible for measurement of individual cell voltages
  • 20-year float life

Applications

  • Telecommunications
  • Energy and Infrastructure

C&D 4LCYC-11 POLY Construction Details

  • Flame-retardant cover enhances battery plant safety
  • Vacuum-assisted, bottom-pour, positive-grid casting assures plate quality and long life
  • Soft rubber post seal minimizes stress on the posts
  • Transparent container allows for visual inspection of the plates

Specification Details for 4LCYC-11 POLY by C&D


ATTRIBUTES DETAILS
General Info
Chemistry
Flooded Lead Calcium (PbCa)
Voltage
8V
Capacity
608 Ah @ 8 Hr Rate
Cells Per Unit
4 cells
Dimensions
    - Overall Length
    - Overall Width
    - Overall Height

15.00 inches / 381.00 mm
14.12 inches / 356.00 mm
22.75 inches / 578.00 mm
Weight
450.00 lbs / 240.10 kgs
Container Type
POLY
Terminal Type
Two 1.00 inch (25.00 mm) square posts per unit
Design Life
20 Years
Warranty
1 Year Full, 19 Pro Rata
Electrical Specifications & Performance Characteristics
Float Voltage
2.19 to 2.21 VPC for Telecommunication applications
2.21 to 2.22 VPC for Switchgear and Control applications
Operating Temperature Ranges
Nominal: 77°F (25°C)
Recommended Operating Temperature: 60°F to 90°F (15°C to 32°C)
Operating Temperature Limits: 32°F to 120°F (0°C to 49°C)
Specific Gravity
1.250
Electrolyte
Sulfuric Acid
Construction Details
Container Material
Transparent, flame-retardant polycarbonate
Flammability ratings: UL 940-HB ASTM D-635 self-extinguishing
Cover Material
High impact, flame retardant thermoplastic with tongue-and groove seal
Flammability ratings: UL94 V-0; ASTM D-635, self-extinguishing LOI> 32
Safety Vent System
Flame arrestor type with dust cover
Separators
Microporous with fibrous glass mat

Certifications & Safety Compliances

Options & Accessories

  • Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.
