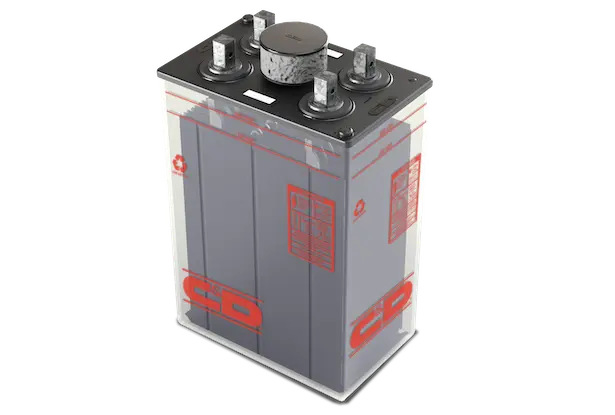

C&D Technologies LCY-39 SAN Flooded VLA Battery - C&D LCY Series
C&D Technologies' LCY Series flooded batteries are engineered to deliver exceptional performance and long-term reliability throughout their service life. Utilizing proprietary manufacturing techniques and high-quality components, these batteries are designed to minimize maintenance requirements while maximizing operational longevity. Offering a broad range of capacities, the versatile LCR and LCY models are well-suited for various utility applications. The battery plates are cast using a specialized alloy and proprietary process, further enhancing both durability and performance.
Key Features & Benefits
- Electrical testing to 100% capacity of all battery cells prior to shipping ensures performance of every battery string upon delivery
- Long life positive plates cast with a proprietary process and alloy
- Water bath charging results in consistently formed plates for reliable performance out of the box (no cycling required in the field)
- Suspended positive plates permit free growth without pressure on jar and cover
- 20 year environmental and seismic qualification (calcium)
Applications
- Electric Power Generation Facilities
- Nuclear Power Plants
- Emergency Systems
- Manufacturing Facilities
- Assembly Lines
- Process Controls
- Petrochemical processing plants
- Pipelines
C&D LCY-39 SAN Construction Details
- Flame-retardant covers enhance battery plant safety with self-extinguishing properties, LOI>32%, UL 94V-0
- Low-evaporation, flame-arrester vent to extend watering intervals and prevent external sparks from reacting with the hydrogen inside the cell
- Transparent container allows visual inspection of plates
- Soft rubber post seal minimizes stress on post reducing maintenance requirements
- Computer controlled heli-arc welded post seals result in consistent and reliable seals for less maintenance and longer product life
- Available in Poly, Poly Tube, San, and San Tube
NOTE: All inter-cell, inter-tier, inter-step, end-to-end inter-rack, back-to-back inter-rack connectors, terminal lugs, and terminal plates are included with every battery. Across-aisle inter-rack connectors are not included
Specification Details for LCY-39 SAN by C&D
| ATTRIBUTES |
DETAILS |
General Info |
Chemistry |
Flooded Lead Calcium (PbCa) |
Voltage |
2V |
Capacity |
2400Ah @ 8 Hr Rate |
Cells Per Unit |
|
|
Dimensions
- Overall Length
- Overall Width
- Overall Height
|
13.14 inches / 334.00 mm
14.09 inches / 358.00 mm
22.78 inches / 579.00 mm
|
Weight |
438.00 lbs / 198.70 kgs |
Container Type |
SAN |
Terminal Type |
Six 1.00 inch (25.40 mm) square cooper-inserted posts with single-bolt holes |
Design Life |
|
Warranty |
|
Electrical Specifications & Performance Characteristics |
Float Voltage |
2.20 to 2.25 VPC for Switchgear and Control applications |
Operating Temperature Ranges |
Nominal: 77°F (25°C)
Recommended Operating Temperature: 60°F to 90°F (15°C to 32°C)
Operating Temperature Limits: 32°F to 120°F (0°C to 49°C)
|
Specific Gravity |
1.215 |
Electrolyte |
Sulfuric Acid |
Construction Details |
Container Material |
SAN
|
Cover Material |
High impact, flame retardant thermoplastic with tongue-and groove seal
Flammability ratings: UL94 V-0; ASTM D-635, self-extinguishing
|
Safety Vent System |
Flame arrestor with dust cover
|
Separators |
Microporous with fiberglass retaining mat
|
Certifications & Safety Compliances
Options & Accessories
- Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.
