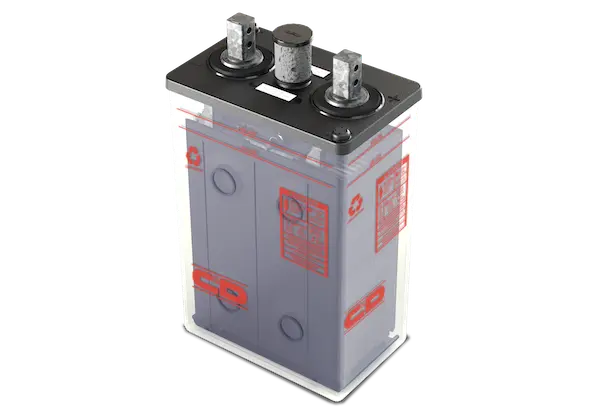

C&D Technologies KCR-13 POLY Flooded VLA Battery - C&D KCR Series
C&D Technologies’ KCR Series Batteries are engineered to deliver a wide range of capacities within a compact footprint, making them an ideal choice for demanding energy and infrastructure applications. The KCR Flooded Battery incorporates a proprietary alloy and manufacturing process that enhances both lifespan and performance. Certified to Class 1E standards for nuclear applications, the KCR Series is built to provide exceptional reliability and superior performance throughout its service life. Each battery is manufactured using advanced design techniques and premium-quality components to ensure reduced maintenance requirements and extended operational life.
Key Features & Benefits
- Electrical testing to 100% capacity on every battery string prior to shipping assures performance of every battery string upon delivery
- Long life positive plates cast with a proprietary process and alloy
- Waterbath charging results in consistently formed plates for reliable performance out of the box (no cycling required in the field)
- 20 year environmental and seismic qualification (calcium)
- Computer controlled heli-arc welded post seals result in consistent and reliable seals for less maintenance and longer product life
- Single-cell design for reduced weight per jar and ease of handling
- Proven history of 20+ years of service life
- 100% Out of the box capacity
- Class 1E certified for nuclear applications
Applications
- Electric Power Generation Facilities
- Nuclear Power Plants
- Electric Utility Substations
- Emergency Systems
- Manufacturing Facilities
- Assembly Lines
- Process Controls
- Petrochemical Processing Plants
- Pipelines
C&D KCR-13 POLY Construction Details
- Flooded Vented Lead Acid (VLA) Battery
- Flame-retardant covers enhance battery plant safety with self-extinguishing properties, LOI>32%, UL 94V-0
- Low-evaporation, flame-arrester vent to extend watering intervals and prevent external sparks from reacting with the hydrogen inside the cell
- Copper-inserted posts reduce resistance and increase system reliability
- Dual hole post design allows connector maintenance without removing the battery from service
- Suspended positive plates permit free growth without pressure on the jar and cover
- Transparent container allows for visual inspection of the plates
- Soft rubber post seal minimizes stress on the post reducing maintenance requirements
- Available in Poly, Poly Tube, San, and San Tube
Specification Details for KCR-13 POLY by C&D
| ATTRIBUTES |
DETAILS |
General Info |
Chemistry |
Flooded Lead Calcium (PbCa) VLA |
Voltage |
2 V |
Capacity |
495Ah @ 8 Hr Rate |
Cells Per Unit |
|
|
Dimensions
- Overall Length
- Overall Width
- Overall Height
|
5.59 inches / 142.00 mm
10.44 inches / 265.00 mm
18.25 inches / 464.00 mm
|
Weight |
97.00 lbs / 44.00 kgs |
Container Type |
POLY |
Terminal Type |
Two 1.00 inch (25.40 mm) square posts with 2 cross-bolt holes
|
Design Life |
Up to 20-year float life at 77°F (25°C)
|
Warranty |
|
Electrical Specifications & Performance Characteristics |
Float Voltage |
2.17 to 2.22 VPC |
Operating Temperature Ranges |
Nominal: 77°F (25°C)
Recommended Operating Temperature: 60°F to 90°F (15°C to 32°C)
Operating Temperature Limits: 32°F to 120°F (0°C to 49°C)
|
Specific Gravity |
1.215 |
Electrolyte |
Sulfuric Acid |
Construction Details |
Container Material |
POLY
|
Cover Material |
High impact, flame retardant thermoplastic with tongue-and groove seal
Flammability ratings: UL94 V-0; ASTM D-635, self-extinguishing
|
Safety Vent System |
Flame arrestor type with dust cover
|
Separators |
Microporous with fibrous glass mat
|
Certifications & Safety Compliances
Options & Accessories
- Contact a member of the Power Storage Solutions Sales Team for additional information on available options and accessories.
