NPPower FT 12V 174Ah @ 8 Hr Rate 1.300 SPG ABS-FR Front Terminal AGM VRLA Battery
SKU: FT12-180AH

NPPower FT 12V 174Ah @ 8 Hr Rate 1.300 SPG ABS-FR Front Terminal AGM VRLA Battery

$503.35

ask a question

request quote

request service quote

Other models in this line

  • Quick Facts

  • Documentation

  • Services

Battery type & OPERATING ENVIRONMENT
AGM (VRLA)
Indoor, Outdoor Controlled, Outdoor Uncontrolled
Title
Title

CAPACITY

9.61 Ah @ 20 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

21.8 A Constant Current @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

174.4 Ah @ 8 Hr Rate to 1.75 VPC @ 77ºF (25ºC)

3059 WPC @ 15 Min Rate to 1.67 VPC @ 77ºF (25ºC)

Title

design life & warranty
12 Years Design Life
1 Year Full Warranty
Title

DIMENSIONS
Length: 21.5 in
Width: 4.92 in
Height: 12.4 in
Weight: 121.2 lb
Title

certifications & compliances
ISO 9001, ISO 14001, OHSAS 18001, IEC 60896-21/22, UL-Recognized Component, UL94 V-0
Title

industries
Data Center & UPS, Telecom, Microgrid

Specifications

view more in-depth details on applications & specifications
NPPower VRLA Installation and Operation Manual.pdf
NPPower VRLA Battery Specification Catalog.pdf
NPPower FT12-180Ah Specification Sheet.pdf
NPPower VRLA Battery Warranty Policy.pdf
NPPower VRLA Battery Terminal Information.pdf
Title

safety

view more in-depth details on safety features & certifications
NPPower VRLA Safety Data Sheet.pdf

auditing & safety

compliance packages

spill containment systems

spill clean up / remediation
Title

rentals & emergency

container rentals

battery rentals

emergency rentals & response
Title

installation

batteries

c0 / msc / cell site

power equipment
Title

microgrid design

feasibility assessment & budgeting

system design, install, & maintenance

operations & optimization
Title

technical

capacity & acceptance Testing

battery & equipment commissioning

maintenance
Title

recycling

batteries - remove, replace, recycle

approved transport & smelting

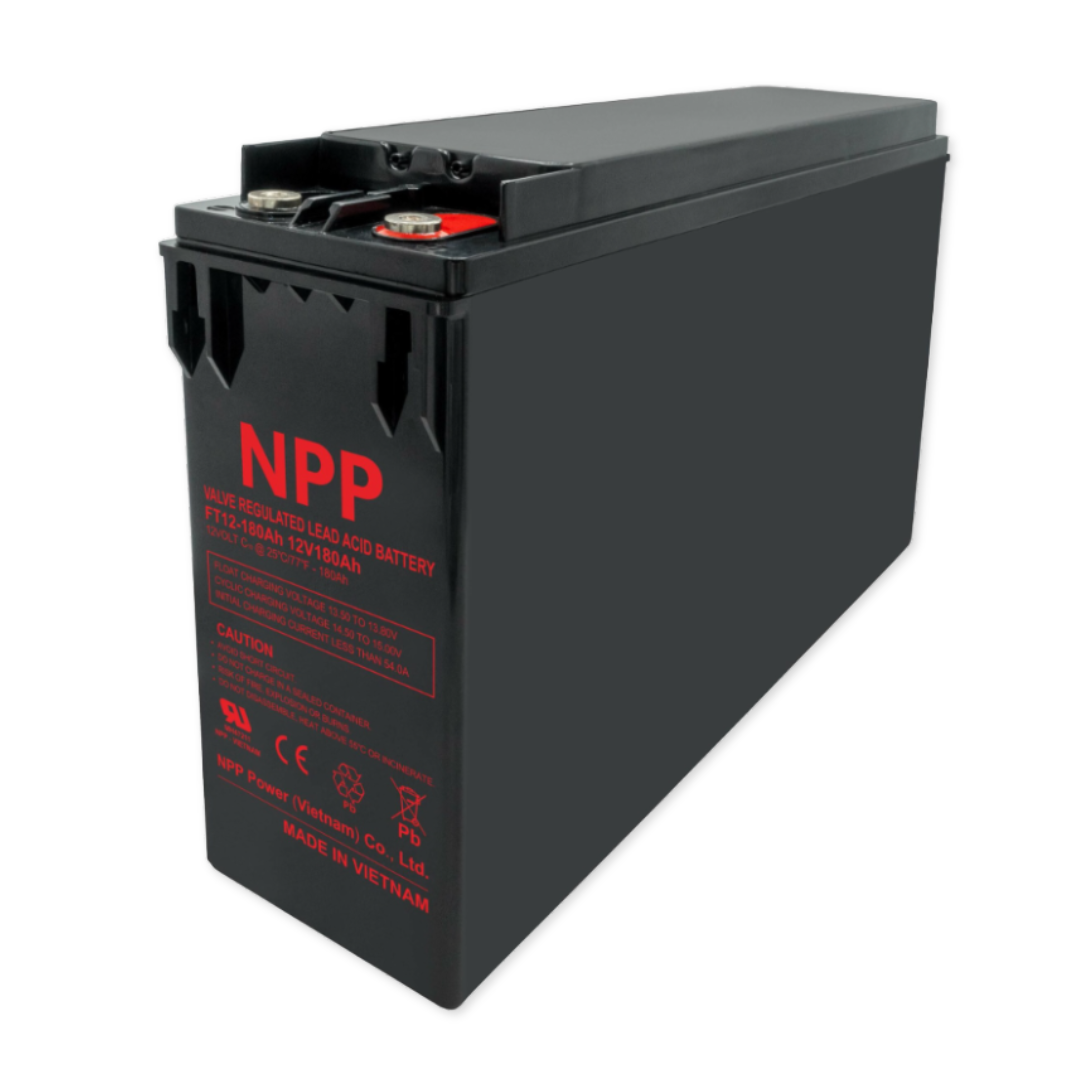

NPPower FT12-180AH AGM VRLA Battery - Front Terminal Series

NPPower Front Terminal (FT) batteries are engineered for versatile energy storage applications, including Uninterrupted Power Supply (UPS) systems, telecommunications, solar, and wind power installations. The NPPower Front Terminal Series utilizes an advanced AGM separator and a centralized venting system. Additionally, the NPPower Front Terminal VRLA batteries are housed in flame-retardant containers to enhance safety and compliance with industry standards.

Key Features & Benefits

  • Flame retardant container and cover (UL94 V-0)
  • Low internal resistance
  • Long service life
  • High energy density
  • Very low self-discharge

Applications

  • Uninterruptible Power Supply (UPS) Systems
  • Telecommunications
  • Solar Power
  • Wind Power

NPPower FT12-180AH Construction Details

  • Front Terminal
  • Advanced AGM separator
  • Centralized venting system
  • Flame retardant container and cover (UL94 V-0)

Specification Details for FT12-180AH by NPPower

ATTRIBUTES DETAILS
General Info
Chemistry
AGM (VRLA)
Voltage
12V
Capacity
174 Ah @ 8 Hr Rate
Cells Per Unit
6 cells
Dimensions
    - Length
    - Width
    - Height
    - Overall Height

21.50 inches / 546 mm
4.92 inches / 125 mm
12.40 inches / 315 mm
12.40 inches / 315 mm
Weight
121.2 lbs / 55 kgs
Container Type
ABS
Terminal Type
Front - M8 Insert
Terminal Material
Copper
Design Life
12 years
Warranty
1 year full
Electrical Specifications & Performance Characteristics
Float Charging Voltage
13.50 to 13.80V
Temperature compensation: -18mV/°C
Cyclic Charging Voltage
14.50 to 15.00V
Temperature compensation: -30mV/°C
Maximum Charging Current
54A
Maximum Discharge Current
1300A (5 sec.)
Self Discharge
3 Month: 91% remaining capacity
6 Month: 82% remaining capacity
12 Month: 65% remaining capacity
Internal Resistance
Approx. 3.5m Ω
Operating Temperature Ranges
Nominal: 77°F +/- 5°F (25°C +/- 3°C)
Charge: 14°F to 122°F (-10°C to 50°C)
Discharge: 5°F to 122°F (-15°C to 50°C)
Storage: -4°F to 122°F (-20°C to 50°C)
Specific Gravity
1.300
Electrolyte
Sulfuric Acid
Construction Details
Positive Plate
Lead Dioxide
Negative Plate
Lead
Container
ABS
Cell Cover
ABS
Separator
AGM
Electrolyte
Sulfuric Acid
Safety Valve
Rubber
Terminal Material
Copper

Certifications & Safety Compliances

  • ISO 9001
  • ISO 14001
  • OHSAS 18001
  • IEC 60896-21/22
  • UL-Recognized Components
  • UL94 V-0

Options & Accessories

  • Also available in gel technology (NPPower FTG Series)

Explore Other Models in the NPPower Front Terminal Series

  • FT12-55AH
  • FT12-105AH
  • FT12-150AH
  • FT12-200AH
